Sockets
Sockets

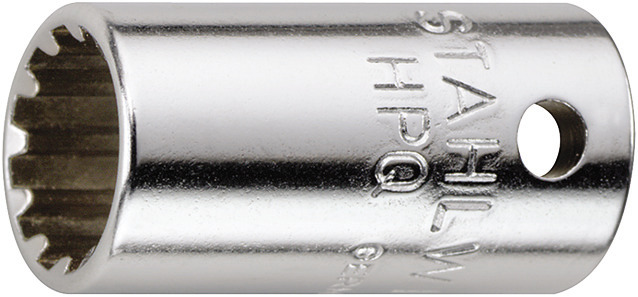

40aSP
Artikel-Nr. 01011008|EAN 4018754109104
Produkt-Varianten

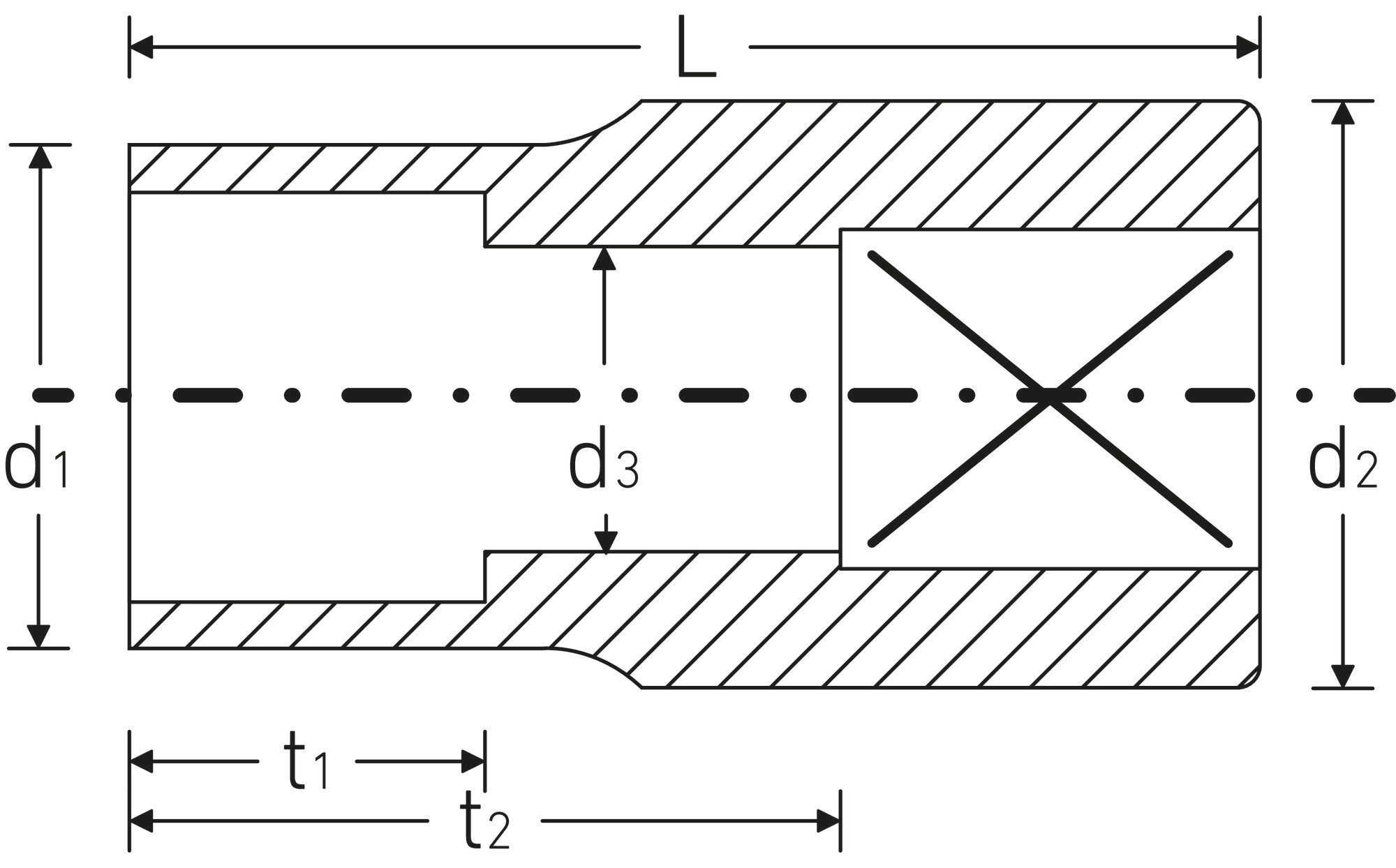

| Product no. | Model | Size [inch] | Size drive profile | Length mm (L) | Square drive inner (inch) | Drive profile | d1 | d2 | d3 | t1 | t2 | Weight (g) | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01011007 | 40aSP | 7/32 " | 7 | 22,2 mm | 1/4 " | Spline-Drive | 8,6 mm | 10,7 mm | 5 mm | 6 mm | 14,2 mm | 7 g | Jetzt entdecken | |
| 01011008 | 40aSP | 1/4 " | 8 | 22,2 mm | 1/4 " | Spline-Drive | 9,5 mm | 10,7 mm | 5,6 mm | 7 mm | 14,2 mm | 10 g | ||
| 01011009 | 40aSP | 9/32 " | 9 | 22,2 mm | 1/4 " | Spline-Drive | 11,2 mm | 11,2 mm | 6,6 mm | 8 mm | 12,4 mm | 10 g | Jetzt entdecken | |
| 01011010 | 40aSP | 5/16 " | 10 | 22,2 mm | 1/4 " | Spline-Drive | 11,6 mm | 11,6 mm | 7,1 mm | 8 mm | 12,2 mm | 12 g | Jetzt entdecken | |
| 01011012 | 40aSP | 3/8 " | 12 | 23 mm | 1/4 " | Spline-Drive | 13,8 mm | 13,8 mm | 8,6 mm | 8,7 mm | 12,6 mm | 18 g | Jetzt entdecken | |
| 01011014 | 40aSP | 7/16 " | 14 | 25 mm | 1/4 " | Spline-Drive | 15,7 mm | 15,7 mm | 10,4 mm | 10,7 mm | 14,1 mm | 24 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Eigenschaften
- for external Spline-Drive screws
- 1/4" internal square drive
- HPQ® high performance steel, chrome-plated
- MS-33787 / MIL-W-8982
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
