Sockets
Sockets

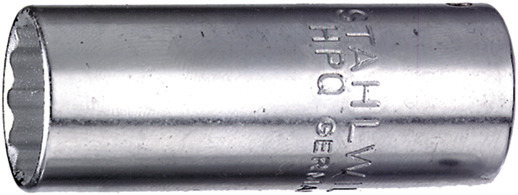

40DL
Artikel-Nr. 01240007|EAN 4018754000838
- Long
Produkt-Varianten

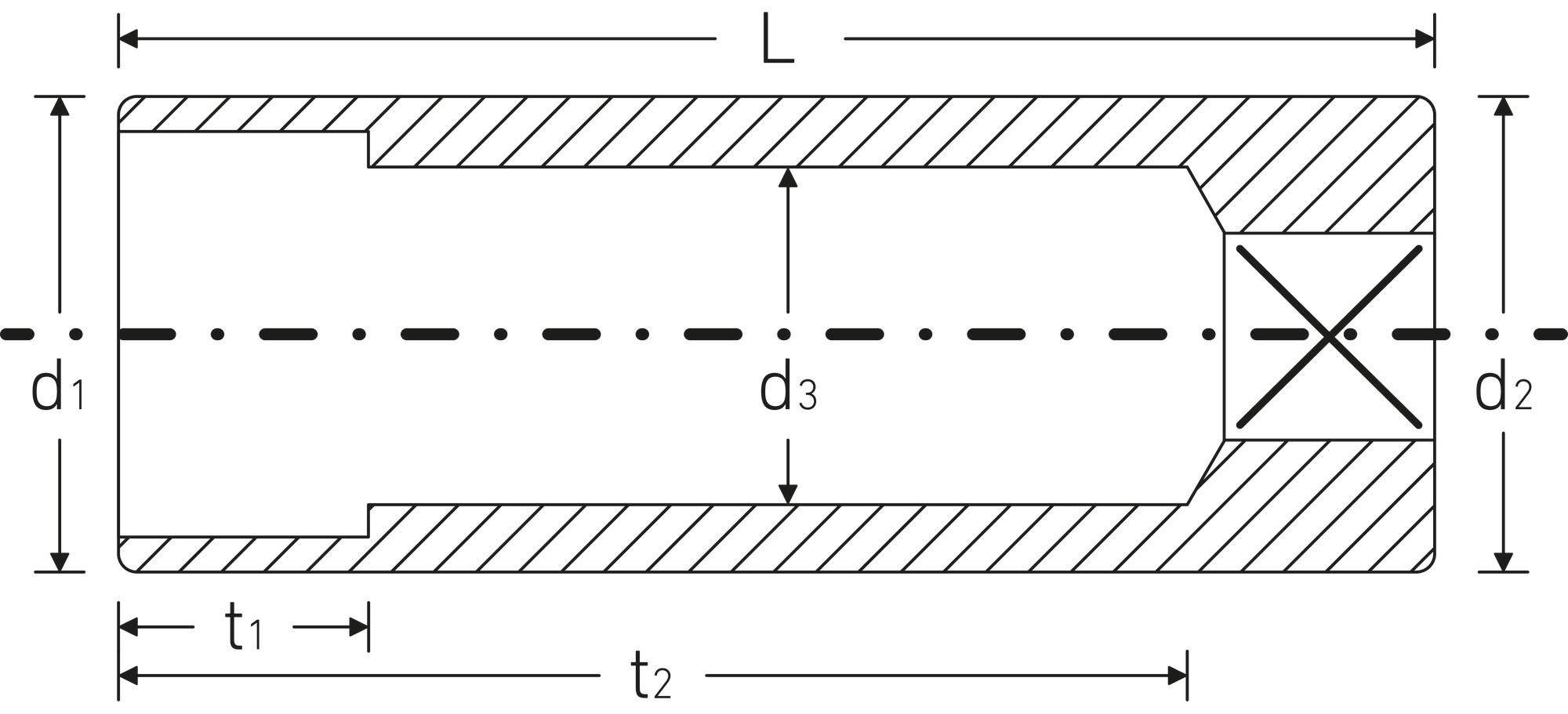

| Product no. | Spanner size [mm] | Internal square drive (inch) | Length mm (L) | Drive profile | d1 | d2 | d3 | t1 | t2 | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01240005 | 5 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 7,9 mm | 10,7 mm | 4 mm | 4,5 mm | 42 mm | 15 g | Jetzt entdecken |
| 01240006 | 6 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 9,2 mm | 10,7 mm | 5 mm | 6 mm | 42 mm | 18 g | Jetzt entdecken |
| 01240007 | 7 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 10,7 mm | 10,7 mm | 6 mm | 6,5 mm | 40,9 mm | 21 g | |
| 01240008 | 8 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 11,6 mm | 11,6 mm | 7 mm | 8 mm | 40,1 mm | 23 g | Jetzt entdecken |
| 01240009 | 9 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 12,8 mm | 12,8 mm | 8 mm | 8 mm | 39,8 mm | 30 g | Jetzt entdecken |
| 01240010 | 10 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 14,3 mm | 14,3 mm | 9 mm | 9 mm | 41,9 mm | 35 g | Jetzt entdecken |
| 01240011 | 11 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 15,5 mm | 15,5 mm | 10 mm | 10,5 mm | 41,6 mm | 40 g | Jetzt entdecken |
| 01240012 | 12 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 16,5 mm | 16,5 mm | 11 mm | 12 mm | 41,3 mm | 47 g | Jetzt entdecken |
| 01240013 | 13 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 17,8 mm | 17,8 mm | 12 mm | 12 mm | 41 mm | 50 g | Jetzt entdecken |
| 01240014 | 14 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 18,8 mm | 18,8 mm | 13 mm | 15 mm | 40,7 mm | 57 g | Jetzt entdecken |
| 01240055 | 5,5 mm | 1/4 " | 50 mm | bi-hex AS-Drive® | 8,5 mm | 10,7 mm | 4,5 mm | 6 mm | 42 mm | 16 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Eigenschaften
- extra deep
- DIN EN 3710, DIN EN 3709, DIN 3124/ISO 2725-1, ASME B 107.5M
- HPQ® high performance steel, chrome plated
