Ratchet spanner
Ratchet spanner
FastRatch 240
- Unrivalled ratchet spanner FastRatch – ; Length 121,4 mm; 41100808.
- Thanks to the patented technology of the “opening ring”, it can operate without any problems even in installation positions that are difficult to access, e.g., cable glands.
- Universal use for metric and imperial screw connections.
- Thanks to the integrated closing spring, it reliably grips rounded screws and nuts, even when tension is relieved.
- High quality: the ratchet spanner is made of stainless, tempered steel.
Produkt-Varianten
| Product no. | Spanner size 1 [mm] | Spanner size 1 [inch] | Length mm (L) | Width mm (b) | a | Weight | |
|---|---|---|---|---|---|---|---|
| 41100808 | 8 mm | 5/16 " | 121,4 mm | 16 mm | 4 mm | 60 g | |
| 41101010 | 10 mm | 3/8 " | 133,3 mm | 20 mm | 4 mm | 70 g | Jetzt entdecken |
| 41101111 | 11 mm | 7/16 " | 140,4 mm | 23 mm | 5 mm | 103 g | Jetzt entdecken |
| 41101212 | 12 mm | 15/32 " | 146,3 mm | 25 mm | 5 mm | 100 g | Jetzt entdecken |
| 41101313 | 13 mm | 1/2 " | 168,4 mm | 26.8 mm | 6 mm | 154 g | Jetzt entdecken |
| 41101414 | 14 mm | 9/16 " | 174,6 mm | 29.6 mm | 6 mm | 180 g | Jetzt entdecken |
| 41101616 | 16 mm | 5/8 " | 191,3 mm | 32.8 mm | 7 mm | 270 g | Jetzt entdecken |
| 41101717 | 17 mm | 21/32 " | 201,7 mm | 34.3 mm | 7 mm | 292 g | Jetzt entdecken |
| 41101818 | 18 mm | 11/16 " | 212,8 mm | 36.2 mm | 7 mm | 310 g | Jetzt entdecken |
| 41101919 | 19 mm | 3/4 " | 238,5 mm | 38.5 mm | 7 mm | 367 g | Jetzt entdecken |
Eigenschaften
- patented
- particularly suitable for union nuts
- slim ergonomic design
- made from stainless, tempered steel
- German utility model (DBGM)
Produkt-Highlights
Three in one.
The ratchet spanner is multifunctional: combination of ring spanner, open-ended spanner and a ratchet for the highest degree of technical flexibility and reliability when carrying out work processes.
Fixed self-clamping effect.
The screw profile consists of hinged jaws that tighten when torque is applied, transferring force to the flanks of the screw head. The ratchet spanner's closing mechanism ensures a secure and centered fit on the screw. When unloaded, the integrated closing spring provides a reliable connection between the tool and the screw.
Easy to use.
Light pressure on the thumb release opens the spanner, allowing it to be slid sideways onto the hex screw. The arrow marking on the spanner head indicates the direction of operation.
Excellent workmanship.
The tool is made of high-quality stainless steel, which gives it outstanding stability and resistance to continuous use.
Wide range of applications.

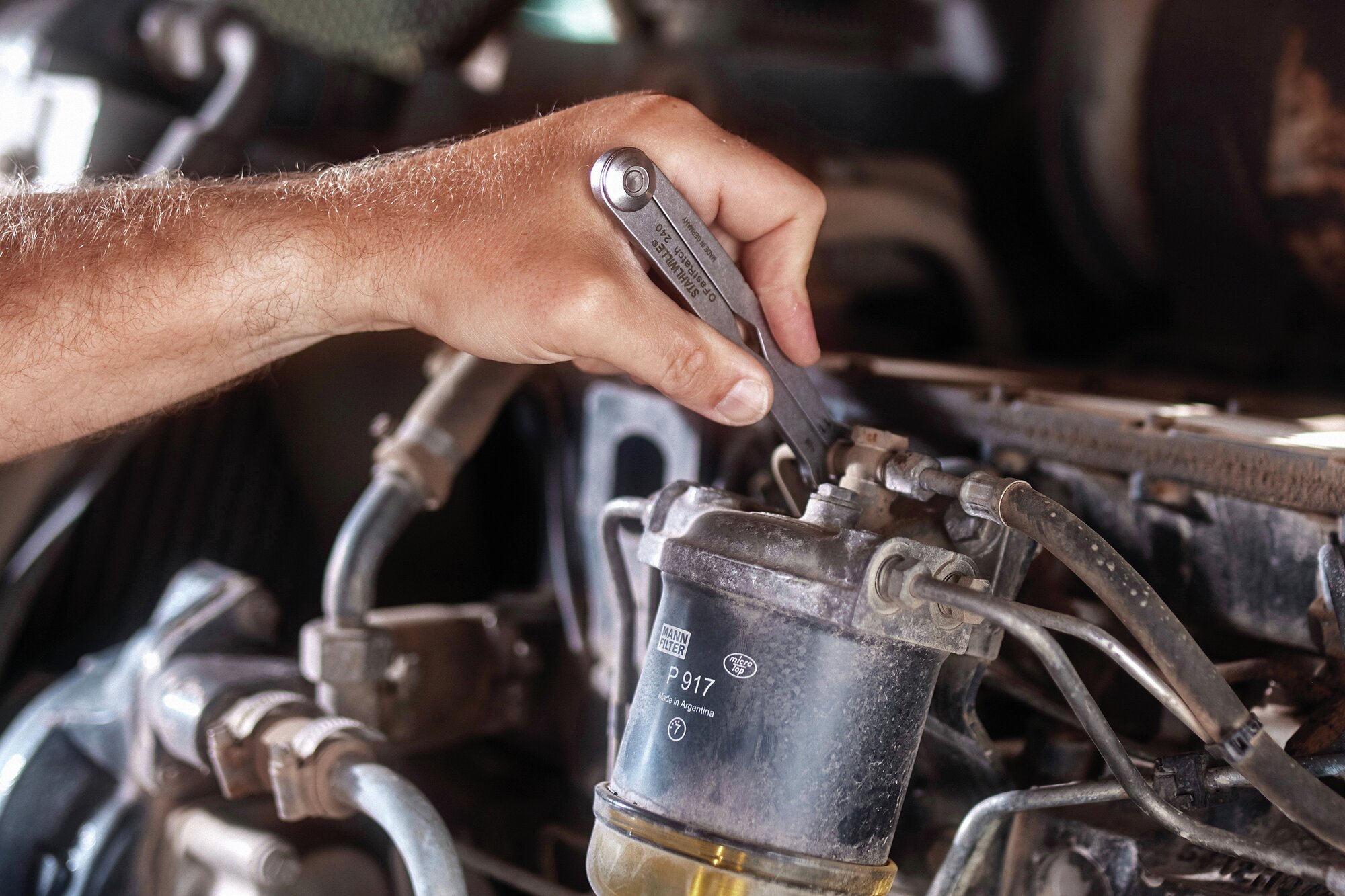

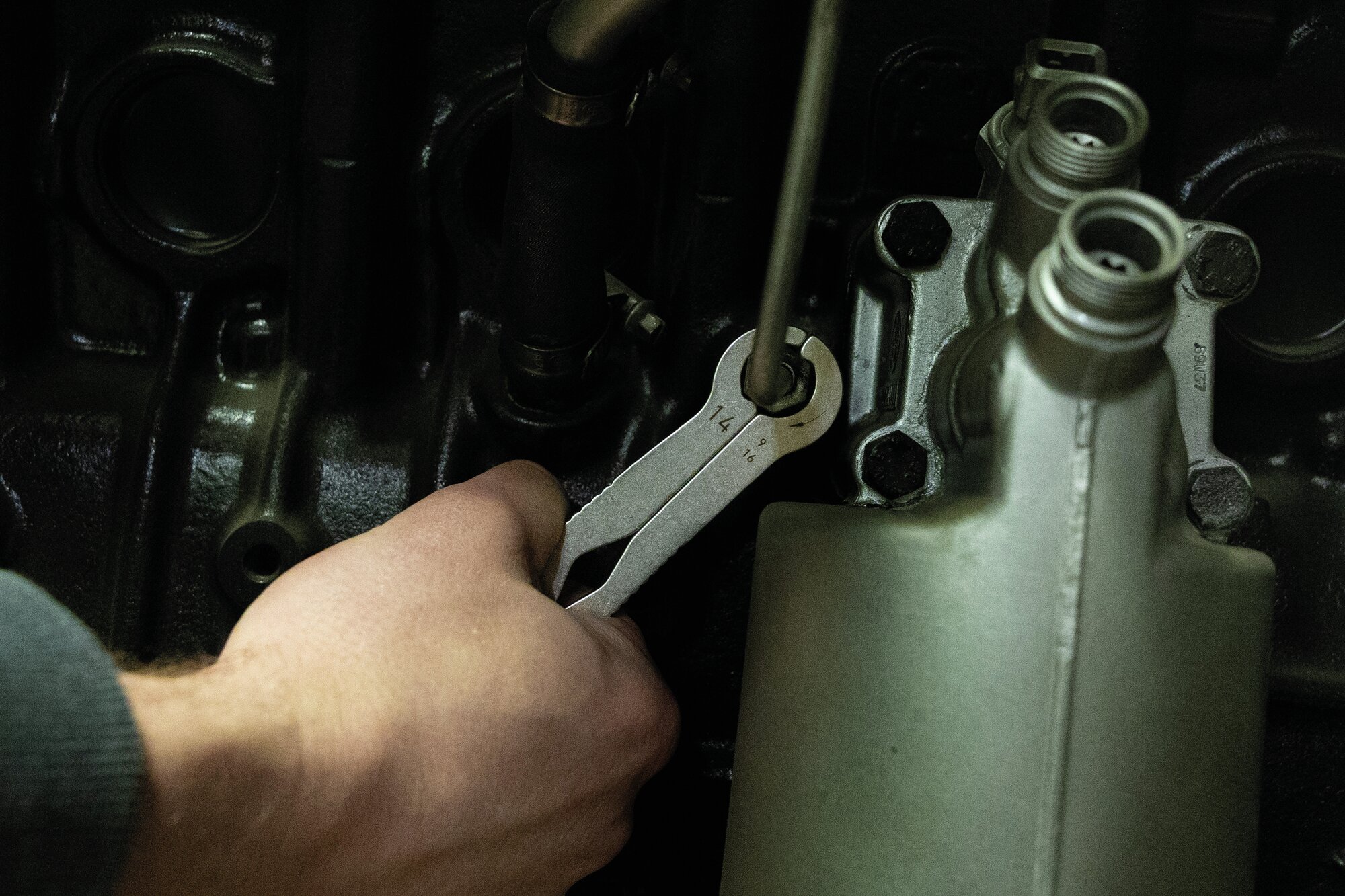

Thanks to the patented system and ergonomic shape, it is ideal for tightening screws on brake lines, tie rods, exhaust gas temperature sensors, diesel fuel lines or air conditioning pressure sensors.
