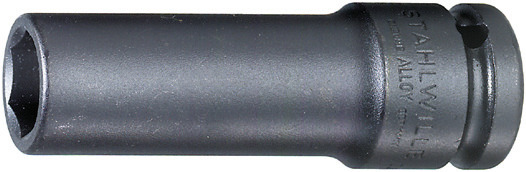

IMPACT sockets
IMPACT sockets
2309
Artikel-Nr. 23090022|EAN 4018754015368
Produkt-Varianten
| Product no. | Spanner size [mm] | Internal square drive (inch) | Length mm (L) | Drive profile | d1 | d2 | t | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 23090017 | 17 mm | 1/2 " | 85 mm | hex | 25,7 mm | 30 mm | 68 mm | 242 g | Jetzt entdecken |
| 23090019 | 19 mm | 1/2 " | 85 mm | hex | 28,2 mm | 30 mm | 67,5 mm | 257 g | Jetzt entdecken |
| 23090022 | 22 mm | 1/2 " | 85 mm | hex | 32 mm | 30 mm | 66,5 mm | 311 g | |
| 23090221 | 21 mm | 1/2 " | 85 mm | hex | 30,7 mm | 30 mm | 66,5 mm | 272 g | Jetzt entdecken |
Eigenschaften
- long version, with reduced diameter
- with hex
- 1/2" internal square drive
- Chrome Alloy Steel, gunmetal finish
Produkt-Highlights
Powerful and resilient.
The sockets are made from high-quality Chrome Alloy Steel. They are hardened in oil to prevent stress and distortion.
Optimised functionality.
All IMPACT sockets have a through cross hole for the connecting pin and a deep groove for the rubber locking ring. The locking pin is not stressed during use.
High fitting accuracy.
The high fitting accuracy due to tight tolerances guarantees optimum, backlash-free transmission of forces to the socket.
