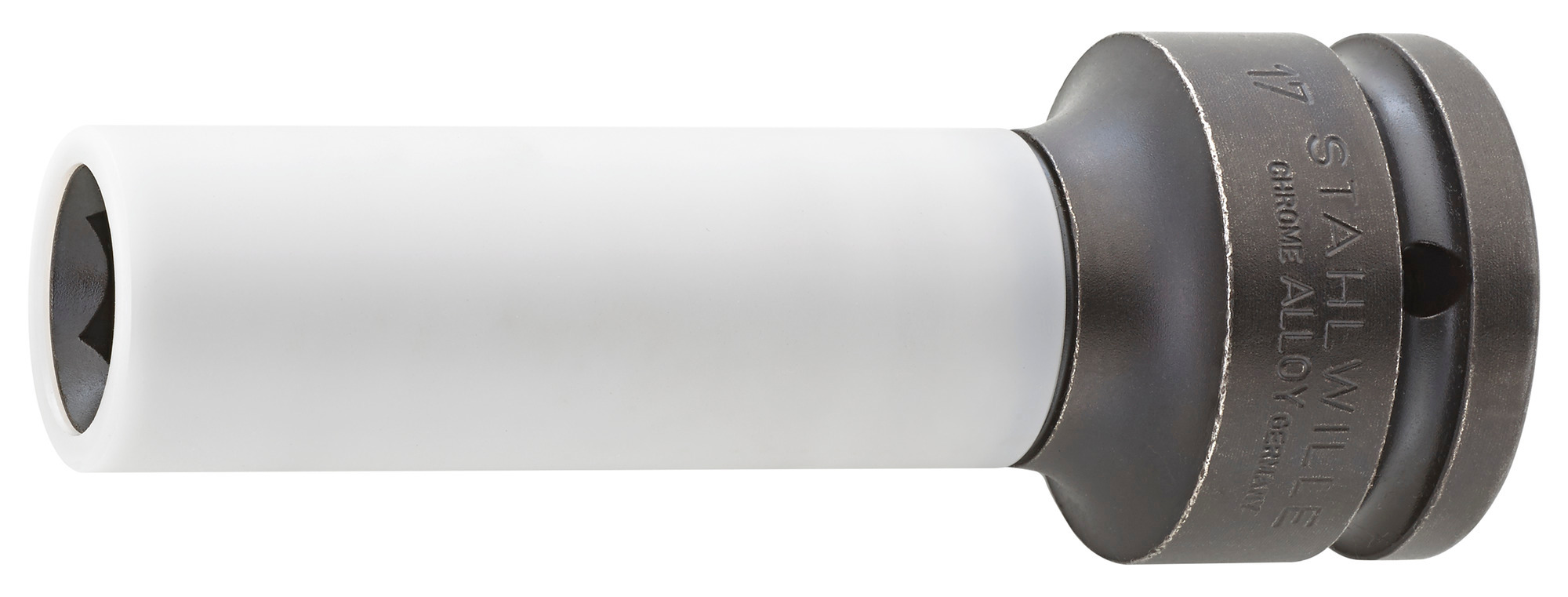

IMPACT wheel nut socket
IMPACT wheel nut socket
2509K
Artikel-Nr. 91471017|EAN 4018754166077
Produkt-Varianten
| Product no. | Model | Size 1 [mm] | Length mm (L) | Square drive inner (inch) | d1 | d2 | t | Weight (g) | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|---|
| 91471017 | 2509K | 17 mm | 120 mm | 3/4 " | 28 mm | 44 mm | 81,5 mm | 520 g |
Eigenschaften
- 20 mm (3/4") square drive, DIN 3129 / ISO 1711-2
- sleeve extension protects not only wheel bolts and nuts but also the wheel and holes
- for power drivers
- Chrome Alloy Steel, gunmetal finish
Produkt-Highlights
Gentle wheel changing.
The special IMPACT sockets with plastic sleeves enable gentle wheel changes, e.g. on sensitive alloy rims.
Optimised functionality.
All IMPACT sockets have a through cross hole for the connecting pin and a deep groove for the rubber locking ring. The locking pin is not stressed during use.
High fitting accuracy.
The high fitting accuracy due to tight tolerances guarantees optimum, backlash-free transmission of forces to the socket.
