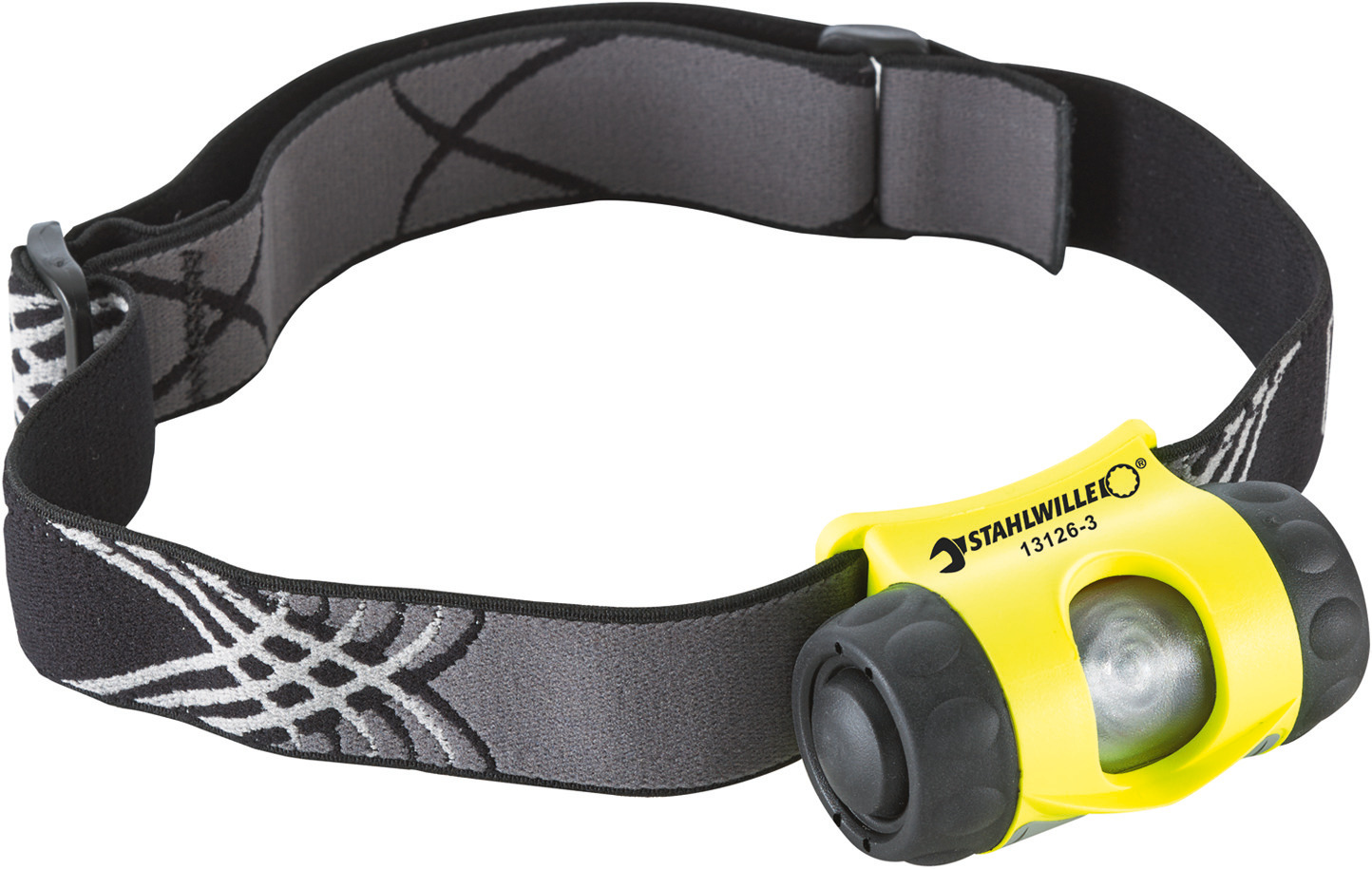

Headlamp


Produkt-Varianten

Product no.ModelLength mm (L)Width mm (b)Height mm (h)BrightnessWeight (g)
7749001313126-376 mm38 mm45 mm250, 130, 60 lm81 g

Eigenschaften

    • Ex-proof for zones 0, 1, 2, 21, 22
    • waterproof design for use in all weather conditions
    • 3 selectable beam shapes: spot, scatter light and red scatter light
    • 3 switchable power levels
    • large switch can also be operated with thick gloves

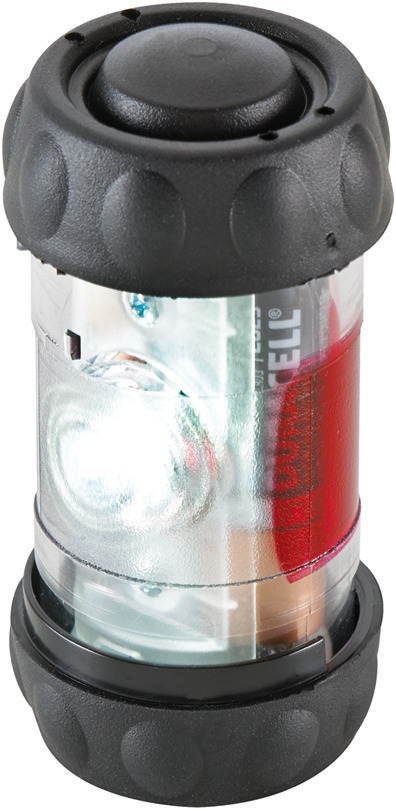

    • the LED lamp module is removable and can be used as a portable work light
    • swivel button to adjust beam angle - no flimsy hinge
    • with adjustable elastic textile strap
    • durable, high-impact ABS/polycarbonate design
    • waterproof to IP68 in water depths up to 10 m
    • brightness/lighting duration: 250 lm at 3.7 h, 130 lm at 9.3 h, 60 lm at more than 30 h
    • lighting range: 71/47/30 m (white), 15/10/6 m (red)
    • permissible operating temperature range: -20 °C to +40 °C
    • batteries: 3 batteries AAA/LR03, alkaline, 1.5 V (not included)
    • certifications: SEV 21 ATEX 0528 X, II 1G Ex ia IIC T4 Ga, II 2D Ex ia IIIC T55°C Db

Downloads

Produktdatenblatt: STAHLWILLE_77490013_13126-3-STIRNTASCHENLAMPE_en.pdf
PDF | 0.61 MB
