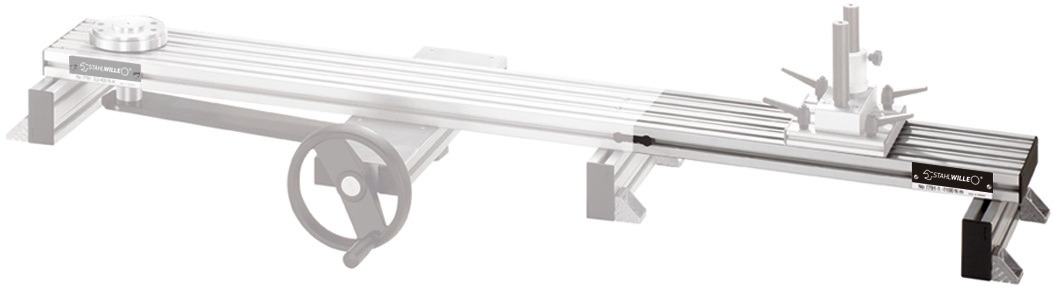

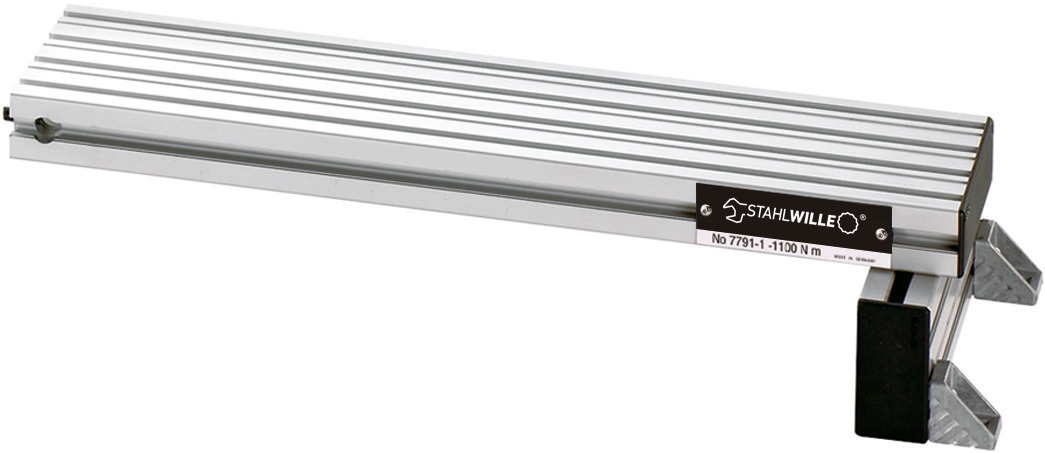

Extension unit for No. 7791, 7794-1 and 7794-2 up to 1000 N·m
Extension unit for No. 7791, 7794-1 and 7794-2 up to 1000 N·m
7791-1
Artikel-Nr. 52110191|EAN 4018754178353
Produkt-Varianten

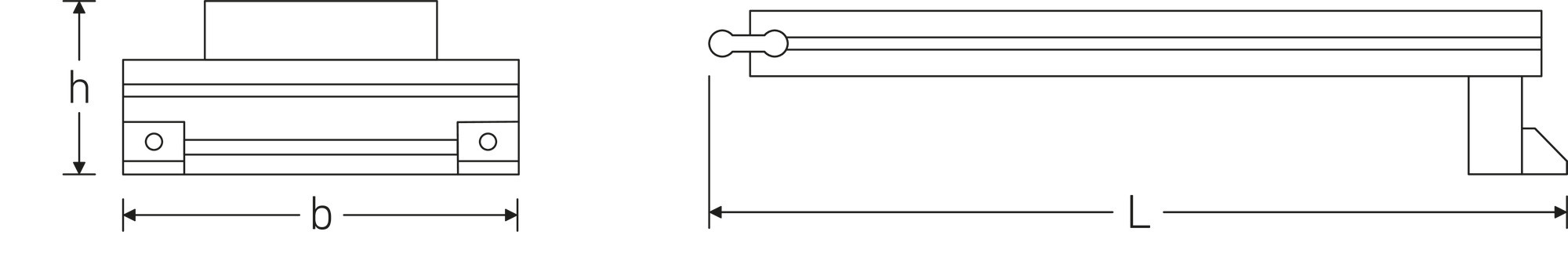

| Art. no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Range N·m | Functional length (LF) max. mm | for model | Weight | Profile width | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52110191 | 7791-1 | 673 mm | 308 mm | 135 mm | 1390 mm | 7791; 7794-1; 7794-2 | 7970 g | 180 mm |
Eigenschaften
- with one pair of adaptor plates No 7770-3 for height compensation between extension unit No 7791-1 and perfectControl® calibrating units No 7794-1 and No 7794-2
