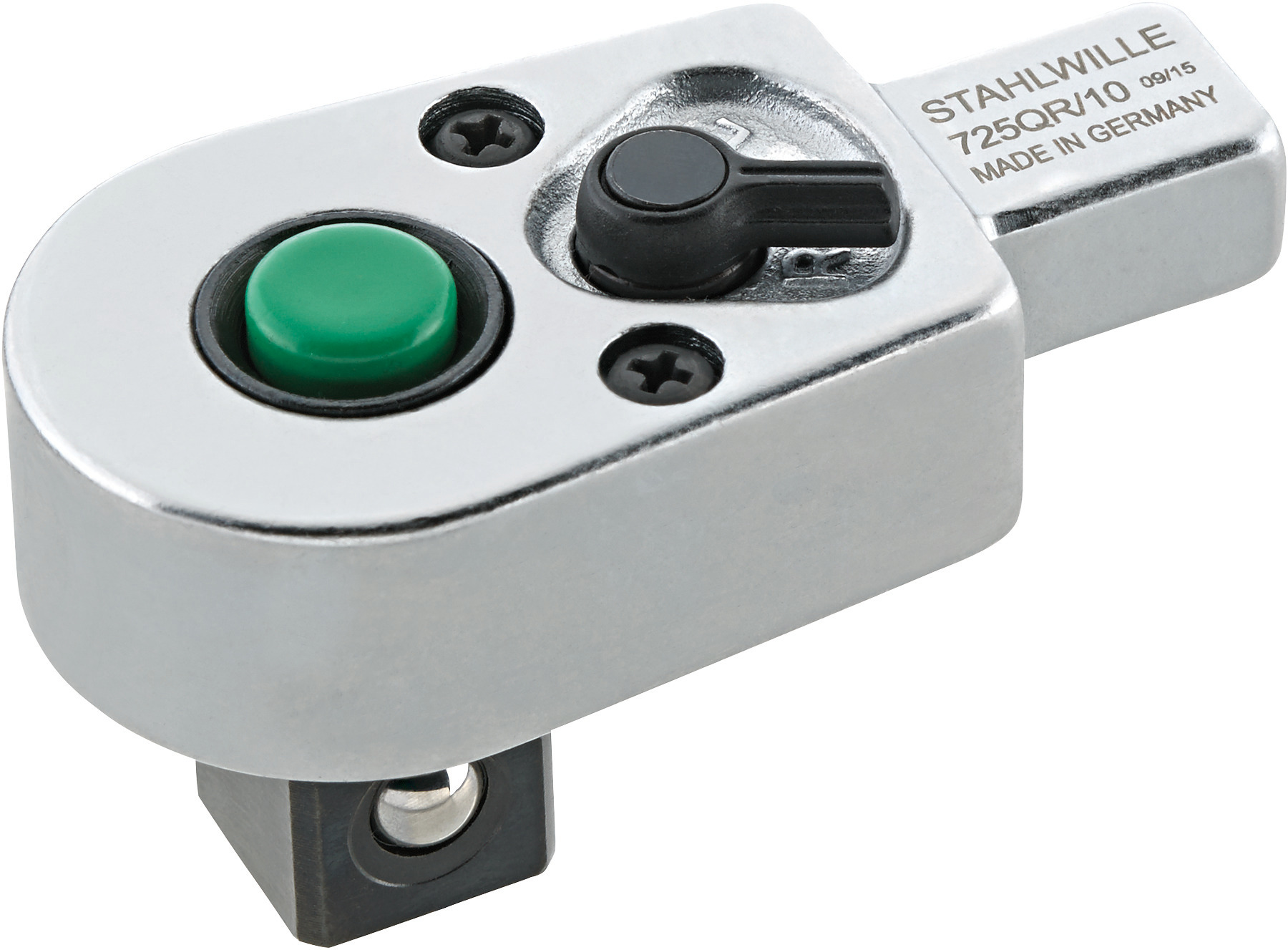

QuickRelease ratchet insert adaptors
QuickRelease ratchet insert adaptors
725QR
Artikel-Nr. 58253010|EAN 4018754139620
- Interchangeable
Produkt-Varianten

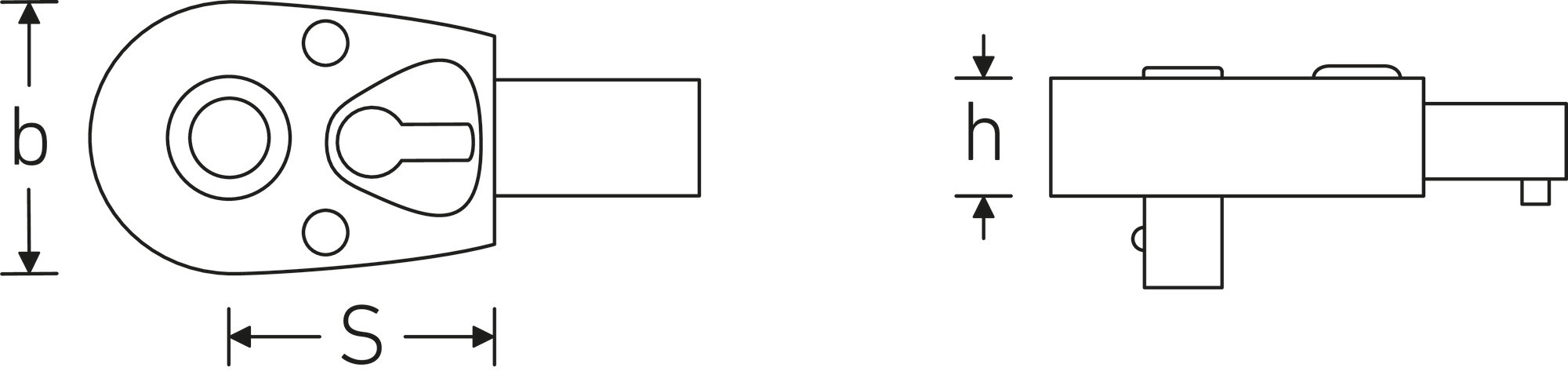

| Product no. | Size | External square drive (inch) | Width mm (b) | Height mm (h) | Number of teeth | Working angle | Size square socket [internal square drive] | max. torque | S | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 58253004 | 4 | 1/4 | 22 mm | 13,8 mm | 22 | 16.4 ° | 9 x 12 mm | 40 N·m | 17,5 mm | 50 g | Jetzt entdecken |
| 58253005 | 5 | 3/8 | 29 mm | 18 mm | 30 | 12 ° | 9 x 12 mm | 100 N·m | 28 mm | 130 g | Jetzt entdecken |
| 58253010 | 10 | 1/2 | 29 mm | 18 mm | 30 | 12 ° | 9 x 12 mm | 100 N·m | 28 mm | 141 g |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
Eigenschaften
- reversible
- with QuickRelease safety lock
- size 4: 22 teeth
- sizes 5 and 10: 30 teeth
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
