Wheel assembly set

Products/Torque tools/Torque tool sets/Torque tool sets

Wheel assembly set

721QR/20/2/1

Produktvarianten

Artikel-Nr. 91388014|EAN 4018754257362

Händlersuche

Produkt-Varianten

Product no.	Model	Measuring range N·m	Measuring range ft-lb	MA N·m	Nominal value N·m	Scale division N·m	Scale division ft-lb	Length mm (L)	Width mm (b)	Height mm (h)	Weight (g)
91388014	721QR/20/2/1	40-200 N·m	30-145 ft·lb	40 N·m	200 N·m	5 N·m	5 ft·lb	560 mm	95 mm	70 mm	2592 g

Technologien und Leistungsmerkmale

QuickRelease

The QuickRelease safety lock prevents unintentional loss of sockets and insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.

Low-wear bending beam system

Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that resetting to '0' is not necessary after use.

2-component handle

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.

DIN EN ISO 6789-2

Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.

Eigenschaften

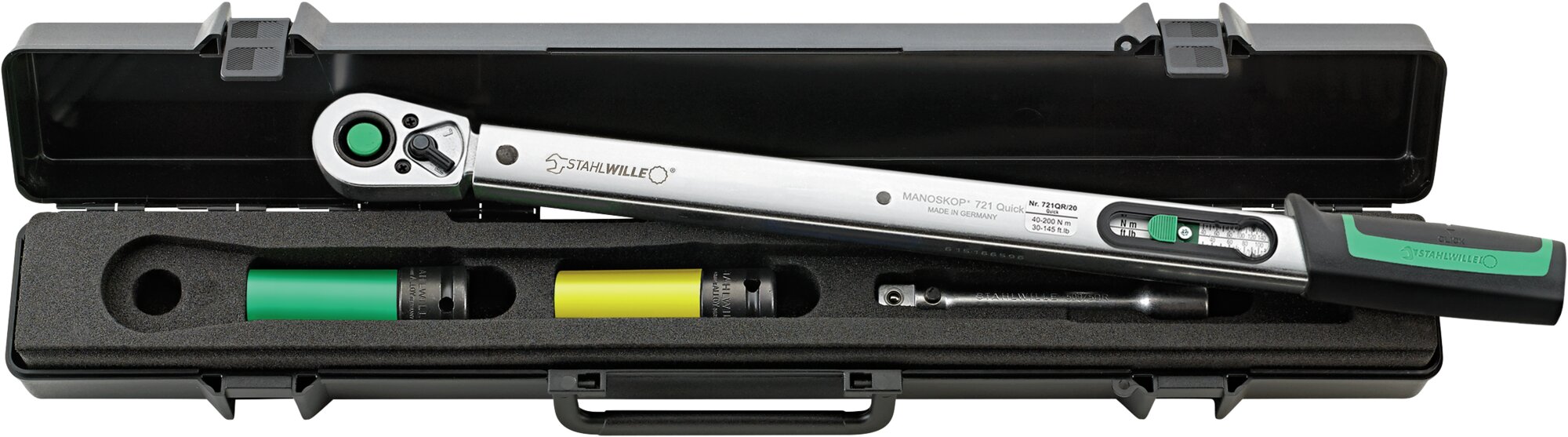

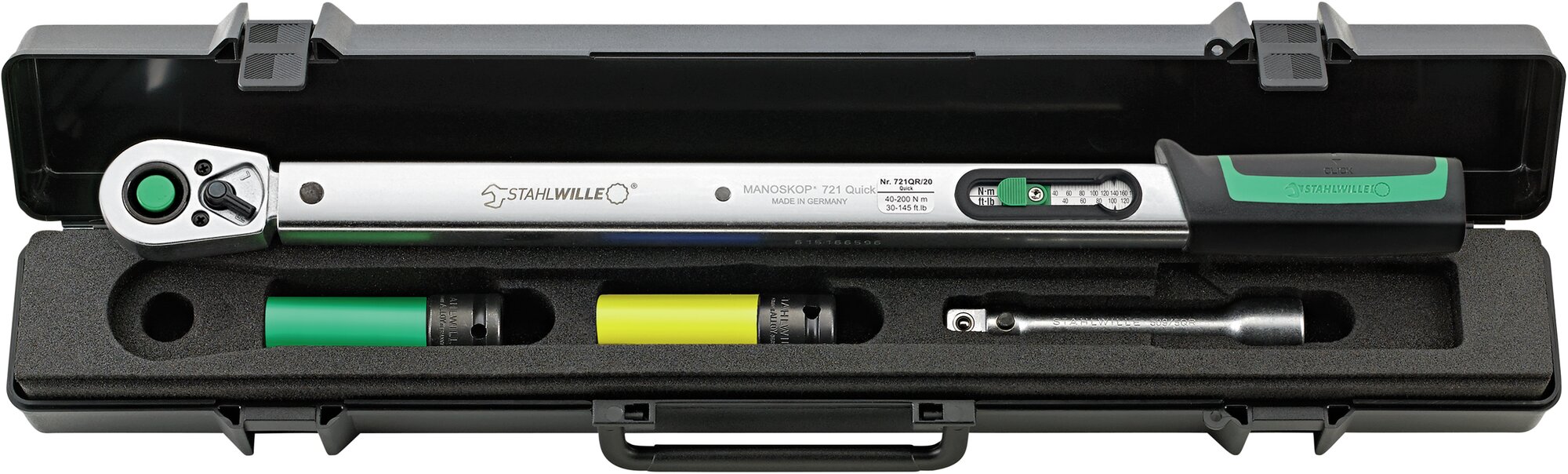

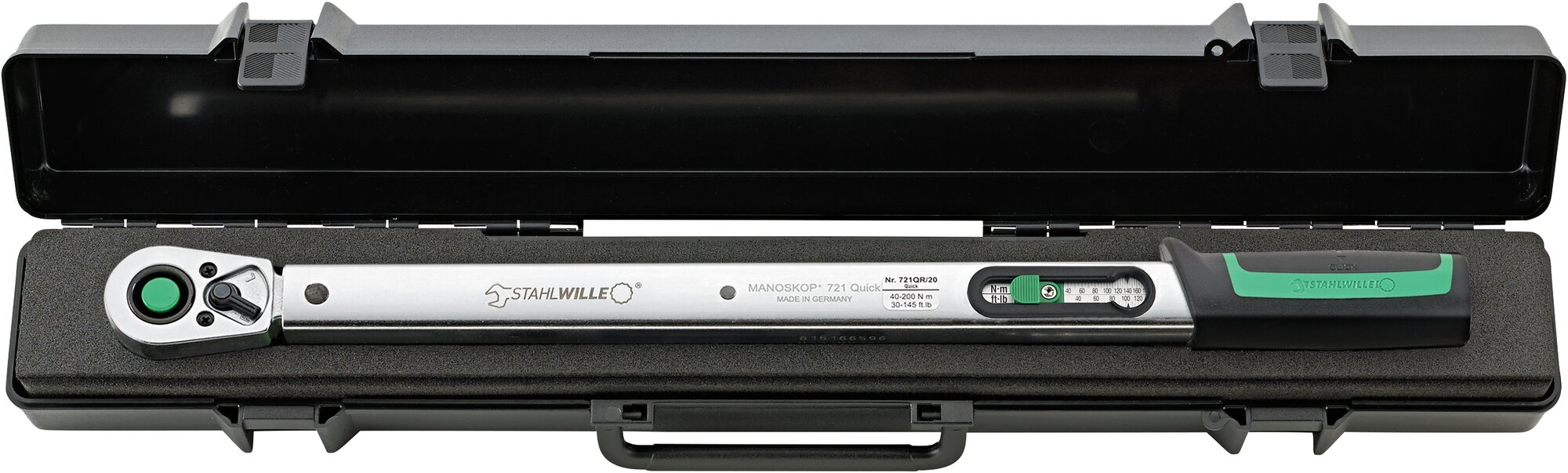

In a sturdy plastic case

Contents 5 parts:

1 Standard MANOSKOP® No. 721QR/20 Quick, 40-200 N·m, 30-150 ft·lb, with fixed QuickRelease ratchet, reversible, 1/2" square drive

3 wheel nut sockets No. 51IMP K, 17 mm (green); 19 mm (blue)

1 extension 130 mm No. 509QR/5

Produkt-Highlights

Robust tool box.

The robust tool box is particularly resilient thanks to its durable ABS plastic. It has a high-quality, chemical-resistant hard foam insert to hold the tools securely in place. The fasteners are particularly easy to use and can be ordered individually as spare parts.

Rapid adjustment.

Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess.

Adjustment does not require disassembly.

Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.

Downloads

Produktdatenblatt: STAHLWILLE_91388014_721QR-20-2-1-QUICK_en.pdf

PDF | 2.84 MB
