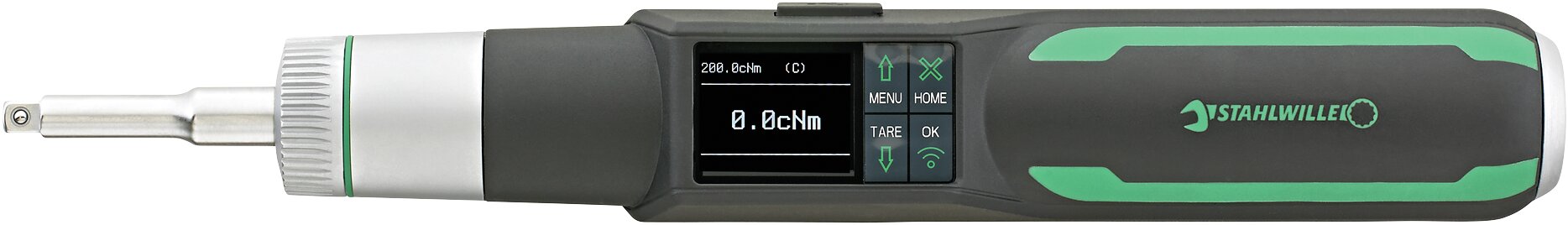

TORSIOTRONIC® 10/29
- Zuverlässiger Drehmomentschraubendreher mit Bit-Feinzahnknarre für exakte Messungen im geringen Drehmomentbereich.
- Mit patentierter elektromechanischer Auslösung: präzise elektronische Messung kombiniert mit dem gewohnten, mechanischen „Klick“.
- Einfache Dokumentation der erfassten Messwerte am PC über die USB-Schnittstelle.
- Das 29-teilige Set deckt mit Steckschlüssel- und Schraubeneinsätzen mit Sechskant, INHEX und TORX®, Bits Kreuzschlitz nahezu alle gängigen Schraubverbindungen im unteren Drehmomentbereich ab.
- Der robuste Kunststoffkasten schützt das Werkzeug und Zubehör zuverlässig vor Beschädigungen und hält alles übersichtlich an seinem Platz.
Produktvideo
Produkt-Varianten
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | Measuring range in-lb | Measuring range cN·m | Measuring range in-oz | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96510000 | TORSIOTRONIC® 10/29 | 1-10 N·m | 0,7-7,3 ft·lb | 8,8-88,5 in·lb | 100-1000 cN·m | 141-1417 in·oz | 420 mm | 227 mm | 70 mm | 29 pcs. | 2000 g |
Technologien und Leistungsmerkmale
DIN EN ISO 6789-2
2-component handle
Eigenschaften
- electromechanical, indicating and clicking type
- for clockwise and counter-clockwise tightening
- visual, acoustic, and haptic stop signal
- with 1/4" external square drive (6.3 DIN 3120/ISO 1174-1) and integrated ratchet function with 80 teeth, ratchet angle of 4.5°, for 1/4" sockets
- after triggering, the clutch mechanism prevents unintended overshooting of the set tightening torque and overtightening of the screw is not possible
- bright and energy-efficient OLED - colour display readable from virtually any angle
- optical evaluation of the applied torque by traffic light colours on the display and side mounted LEDs
- supported languages: DE, EN, IT, FR, ES
- stores up to 2,500 joint and sequence results, for transfer to the PC via an integrated micro-USB interface
- tolerances for evaluation purposes can be set individually
- short training time thanks to intuitive controls and an easy-to-understand menu structure
- three operating modes (Click, Track, Peak-Hold)
- bolted joints and sequences can be programmed
- with a 1/4" inner square at the end of the handle (6.3 DIN 3120/ISO 1174‑1) for accommodating a 1/4" T-handle
- units of measurement: cN·m, N·m, ft·lb, in·lb, in·oz
- the GEN3 version can charge the installed battery via the micro USB cable
- long battery life with battery-saving standby mode
- the batteries are quick and easy to change
- supplied with 3.6 V lithium battery, type 18650, packaged according to UN 3481
- with 2-component handle
- patented
- in a sturdy plastic box
- calibration certificate in accordance with DIN EN ISO 6789‑2:2017
- accuracy ± 4%
Key features of torque screwdriver TORSIOTRONIC®
Contains:
1 electromechanical torque screwdriver 1/4" No. TORSIOTRONIC® 10: measurement range: 100-1,000 cN·m
8 sockets with hex 1/4" No. 40: 4; 5; 5.5; 6; 7; 8; 9; 10 mm
3 bits PHILLIPS® 1/4" No. PH 1221-1223: PH1; PH2, PH3
3 bits POZIDRIV® 1/4" No. PZ 1221-1223: PZ1; PZ2, PZ3
4 screwdriver sockets INHEX 1/4" No. 44K: 3; 4; 5; 6 mm
5 screwdriver sockets TORX® 1/4" No. 44KTX: T8; T9; T10; T15; T20
5 screwdriver sockets TORX® with hole 1/4" No. 44 KTXB: T8; T9; T10; T15; T20
1 bit holder 1/4" No. 412
+ sturdy plastic box, SensoMaster 4, USB cable, T-handle (size 10), battery 3.6 V, type 18650, packed in accordance with UN 3481
Produkt-Highlights

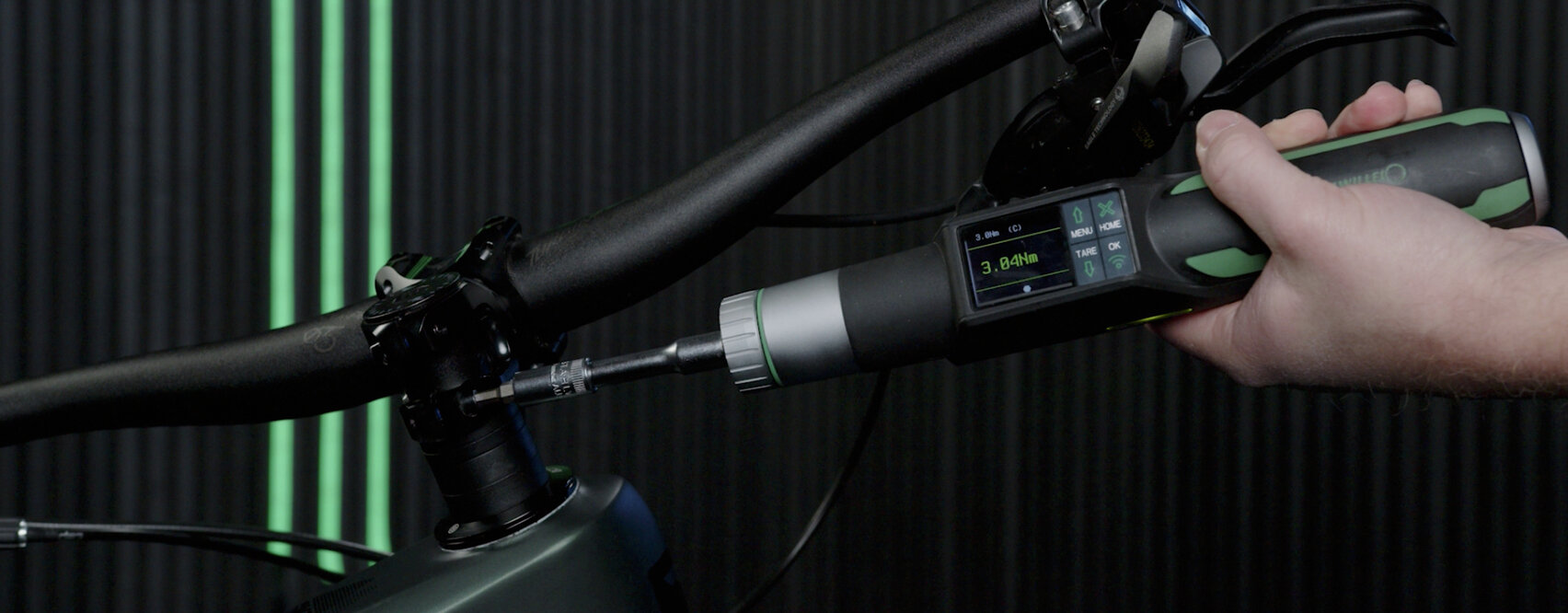

Electromechanical cycle.
The TORSIOTRONIC® is the first electromechanical torque screwdriver on the market. It measures the applied torque electronically. The display and signal lights on the side provide a visual assessment of the bolted connection. Unlike a purely electronic torque wrench, the cycle and haptic user feedback are mechanical. A clearly perceptible cycle and an equally audible click indicate that the target value has been reached.

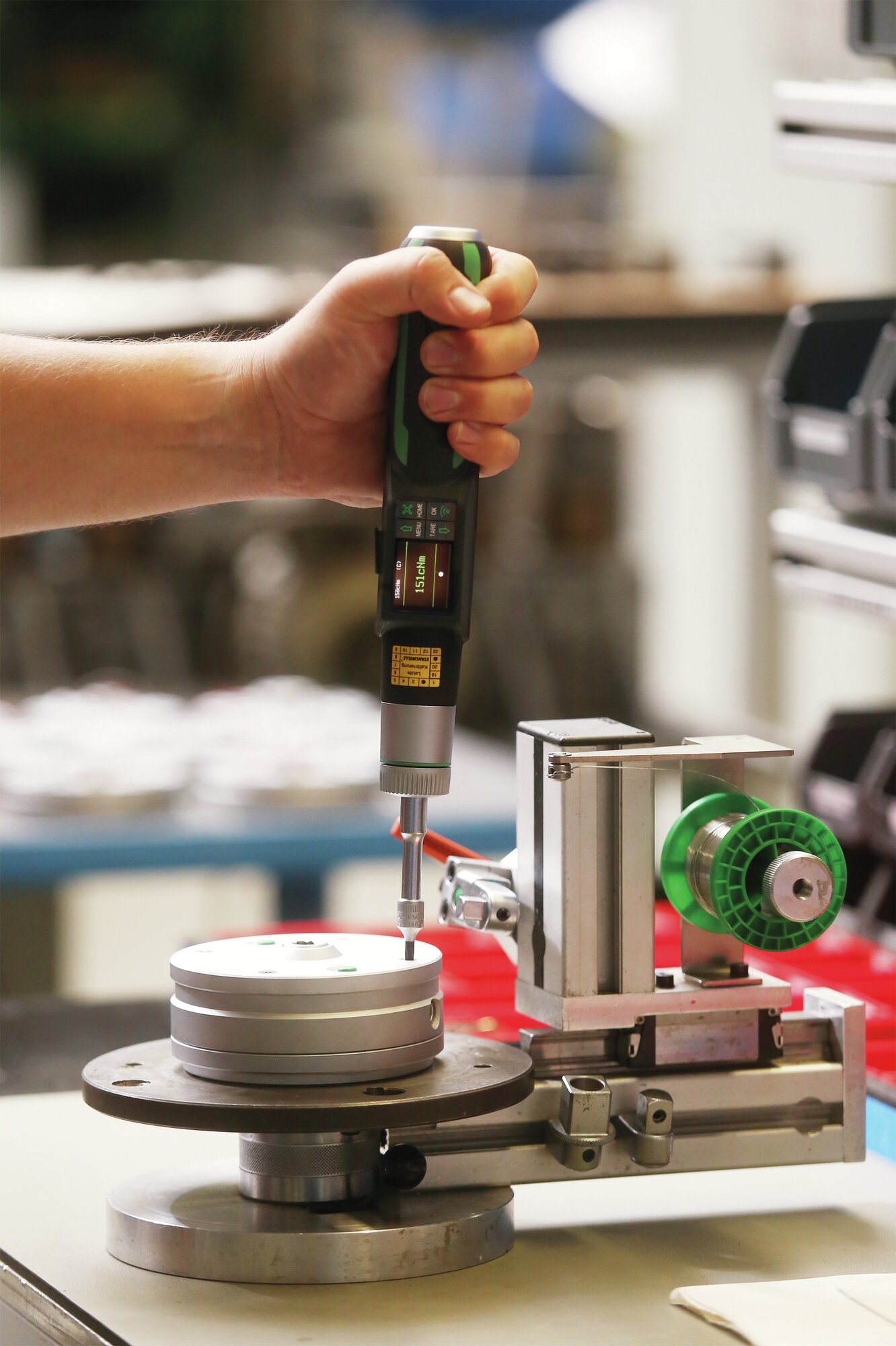

Maximum precision with minimum torque.
Our torque screwdriver is ideal for bolted connections with low torques starting at just 0.12 N·m. Low accuracy ensures precise screw tightening.
Complete documentation.
Our TORSIOTRONIC® is documentation-compatible. It can be easily configured and programmed using the SensoMaster software. This allows all data to be read out, stored and further processed on a PC for better monitoring and optimisation of work processes.

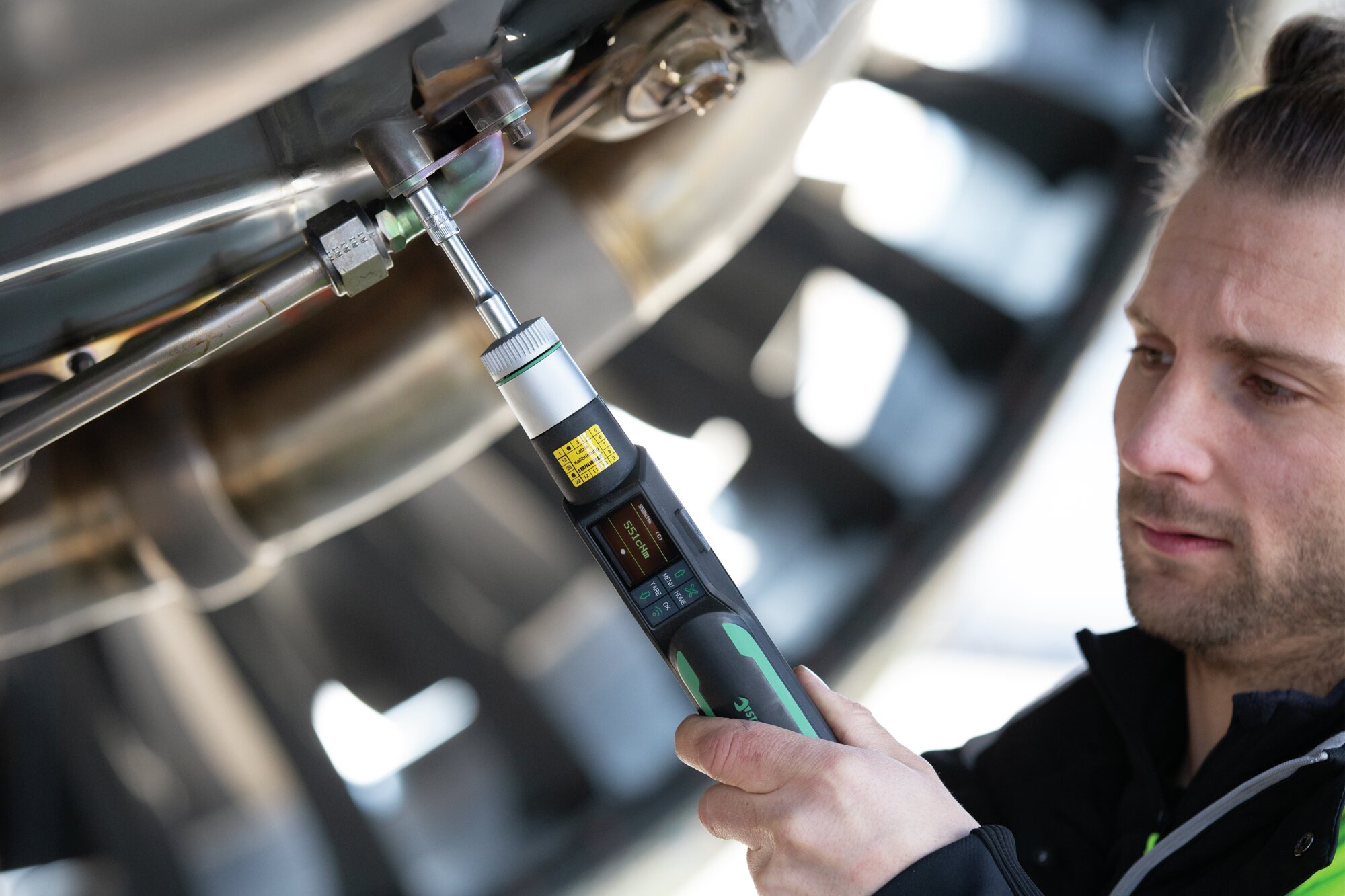

Secure tightening.
Our electromechanical torque screwdriver minimises operating errors. This allows bolted connections and sequence plans to be parameterised and saved in advance. The torque screwdriver then automatically sets the trigger torque for the selected bolted connection. After triggering, the slip mechanism prevents the set tightening torque from being exceeded and the screw from being overtightened.
