Torque tool set
Torque tool set
730/20 QUICK /13/1
Produkt-Varianten
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91388016 | 730/20 QUICK /13/1 | 40-200 N·m | 30-145 ft·lb | 40 N·m | 200 N·m | 5 N·m | 5 ft·lb | 480 mm | 290 mm | 85 mm | 4565 g | 23 pcs. |
Technologien und Leistungsmerkmale
Low-wear bending beam system
High Performance Quality (HPQ®)
Eigenschaften
- Socket and socket tools in popular sizes
- Extremely durable, exceptionally long-lasting
- Drop-forged, hardened and oil-bath cooled
- HPQ® (High Performance Quality), Chrome-Alloy-Steel, chrome-plated
- Fitted, chemical-resistant LD hard foam insert
- In robust, stackable ABS plastic case

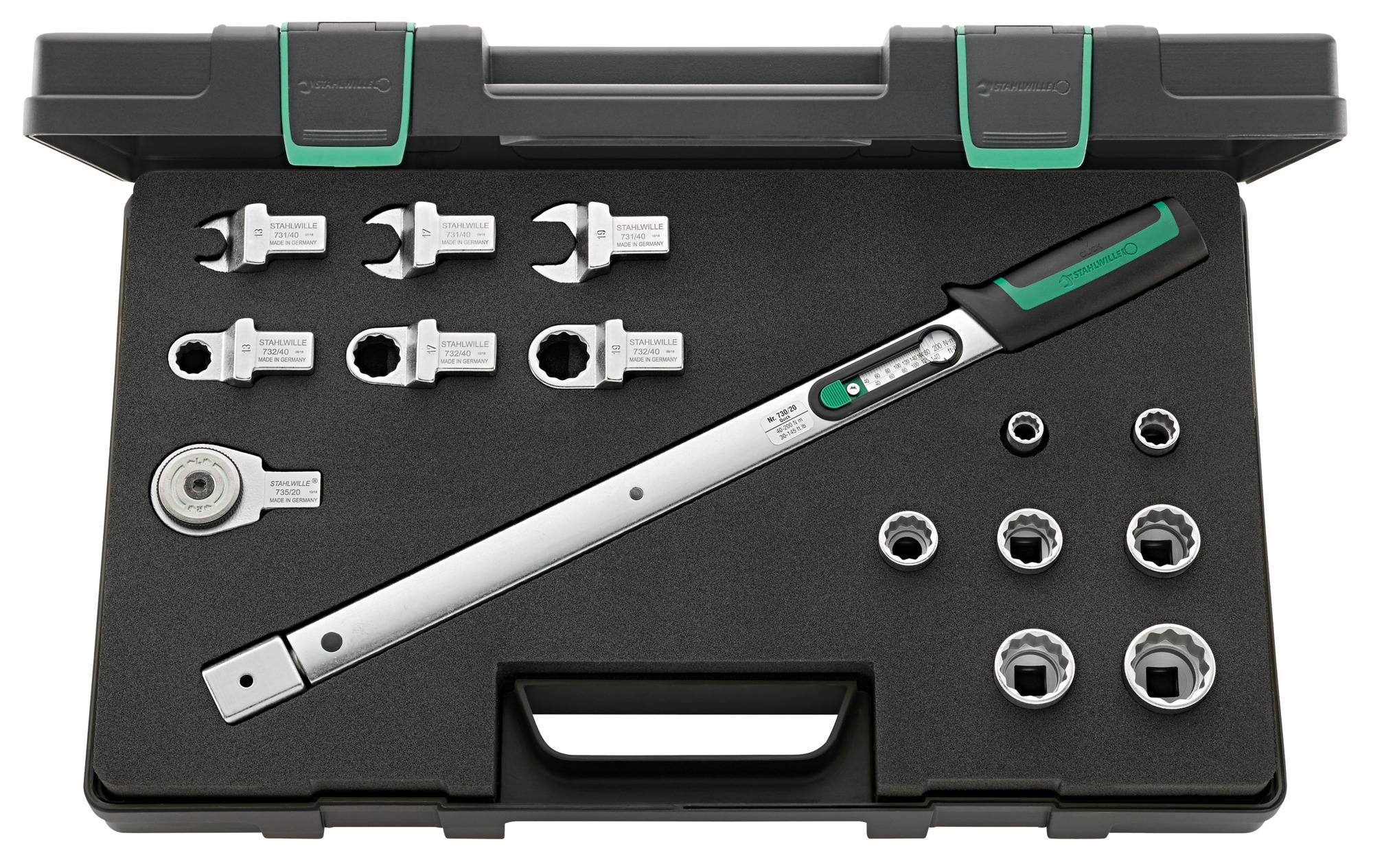

- Contents 23 pieces:
- 8 screwdriver bits for hexagon socket screws SW 5; 6; 7, 8; 10; 12; 14; 17mm
- 7 sockets 1/2" no. 50 bi-hex SW10; 13; 17; 19; 22; 24; 27mm
- 3 jaw socket tools 14x18mm no. 731/40 SW13; 17; 19mm
- 3 ring socket tools 14x18mm no. 732/40 13 SW13; 17; 19mm
- 1 fine tooth socket ratchet 1/2" no. 735/20
- 1 torque spanner no. 730/20 QUICK 14x18mm 40-200Nm
Produkt-Highlights
Robust tool box.
The robust tool box is particularly resilient thanks to its durable ABS plastic. It has a high-quality, chemical-resistant hard foam insert to hold the tools securely in place. The fasteners are particularly easy to use and can be ordered individually as spare parts.
Everything at a glance.
The laser-engraved contents in the lid insert provide an optimal overview of the tools within.
Robust tool box.
The robust tool box is particularly resilient thanks to its durable ABS plastic. It has a high-quality, chemical-resistant hard foam insert to hold the tools securely in place. The fasteners are particularly easy to use and can be ordered individually as spare parts.
Everything at a glance.
The laser-engraved contents in the lid insert provide an optimal overview of the tools within.
Rapid adjustment.
Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess.
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.
