Torque multiplier MULTIPOWER
Torque multiplier MULTIPOWER
MP100-1500
Artikel-Nr. 96531500|EAN 4018754224715
Produkt-Varianten
| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Torque transmission | Gear ratio | Internal square [inch] | max. output capacity E1 | max. output capacity E2 | max. input capacity E1 | max. input capacity E2 | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96531500 | 165 mm | 105 mm | 30 mm | 1 : 5 | 5,62 : 1 | 1/2 " | 1500 N·m | 1106 ft·lb | 300 N·m | 221 ft·lb | 1890 g | 3630 g |
Eigenschaften
- especially compact design
- light and handy
- with ratchet function
- working angle 8°
- with angle of rotation scale
- to be used with a torque wrench with fixed 1/2" square
- patents pending

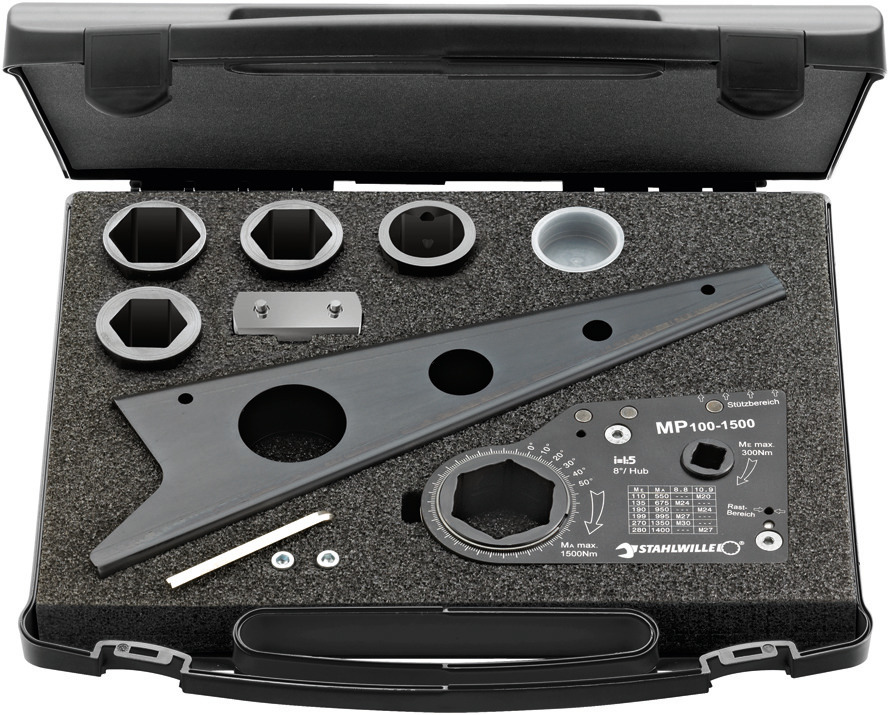

- in carrying case
- in scope of delivery: 3 hexagon inserts SW 30; 32; 36 mm, 1 insert with 1" external square, 1 reaction arm 400 mm
- indication deviation ± 5 %
.
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
