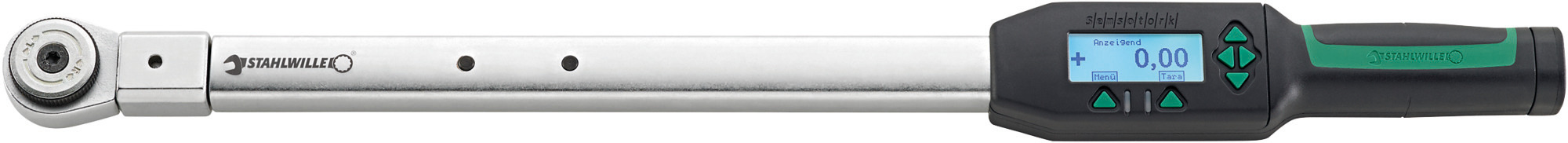

Electronical angle and torque wrench SENSOTORK®
Electronical angle and torque wrench SENSOTORK®
713R
Artikel-Nr. 96501620|EAN 4018754156511
- Torque and angle of rotation are visible at the same time.
Produkt-Varianten
| Product no. | Size | Measuring range N·m | Measuring range ft·lb | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Number of teeth | Battery type | Size square socket [inside square drive] | LF | SF | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96501606 | 6 | 3-60 N·m | 2,5-44 ft·lb | 3/8 | 378 mm | 33 mm | 24 mm | 60 | Mignon (AA) 1,5V | 9 x 12 mm | 299 mm | 17,5 mm | 856 g | 1500 g | Jetzt entdecken |
| 96501620 | 20 | 10-200 N·m | 7-148 ft·lb | 1/2 | 608 mm | 43 mm | 26 mm | 60 | Mignon (AA) 1,5V | 14 x 18 mm | 524 mm | 25 mm | 1552 g | 2430 g | |
| 96501640 | 40 | 20-400 N·m | 15-296 ft·lb | 3/4 | 838 mm | 50 mm | 31,5 mm | 60 | Mignon (AA) 1,5V | 14 x 18 mm | 750 mm | 25 mm | 2332 g | 5555 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
Eigenschaften
- torque and angle are simultaneously visible
- convenient angle measurement across a very wide angle range
- Display deviation value, angle ±1° ±1 digit up to 100°,>100° at least 1% ± 1 digit
Produkt-Highlights
Accurate.
Accuracy counts - uncertainty is reduced to a minimum to guarantee accurate readings.
Multisensory.
The torque achieved is indicated by visual, audible and tactile signals - with a multicoloured backlit LED display, acoustic signal and vibration.
