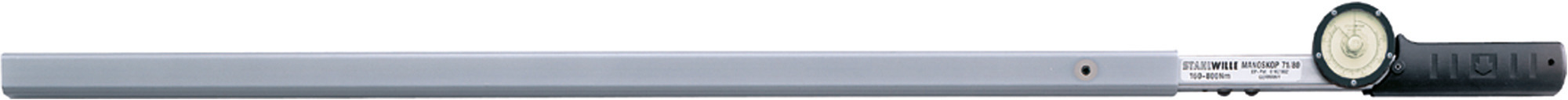

MANOSKOP® torque wrench


Produkt-Varianten

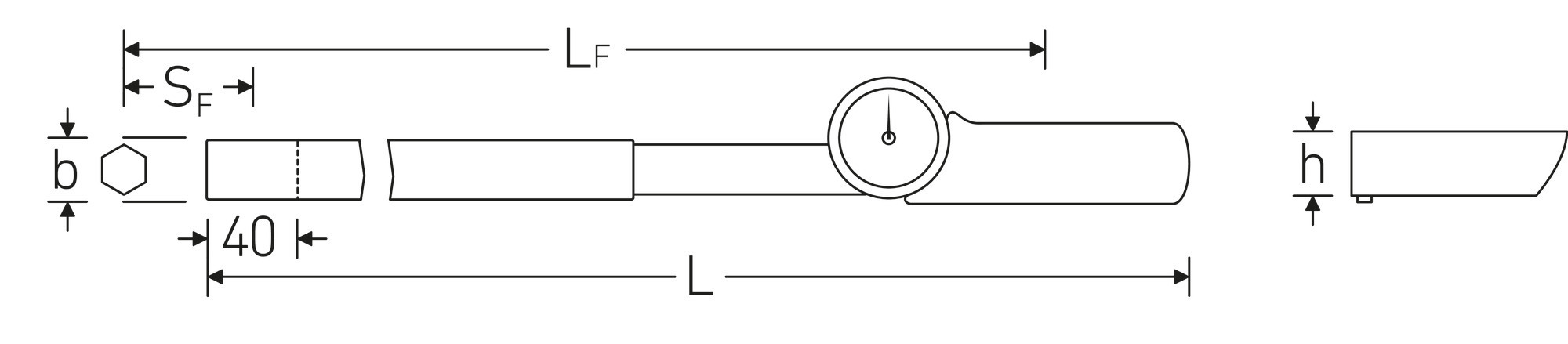

Art. no.ModelMeasuring range N·mMeasuring range ft·lbMA N·mNominal value N·mLength mm (L)Width mm (b)Height mm (h)Size square socket [internal square drive]LFSFWeightScale division N·mScale division ft·lb
5003008071/80160-800 N·m120-600 ft·lb160 N·m800 N·m1048 mm28 mm24 mm24,5 x 28 mm1050 mm95 mm2300 g10 N·m10 ft·lb

Technologien und Leistungsmerkmale

Factory calibration certificate (ISO calibration)

Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.

Eigenschaften

    • display
    • mount for interchangeable shell tools
    • with adaptor No. 7370/80, all insert tools 14 x 18 mm can also be used (max. 650 N·m)
    • drag indicator dial gauge
    • dual scale N·m/ft·lb
    • scale made of special luminescent, bright yellow foil for clear readability of the display even in poor visibility conditions
    • handle with integrated force balancing mechanism
    • measuring element as bending plate in the handle
    • with overload protection
    • counter-clockwise tightening by turning the torque wrench over
    • calibration with perfectControl® calibration device No. 7794, or calibration system No. 7791 or 7706
    • readjustment does not require disassembly
    • calibration certificate in accordance with DIN EN ISO 6789-2:2017
    • delivered in a textile bag
    • accuracy ± 4%

Produkt-Highlights

Adjustment does not require disassembly.

Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.

Downloads

Bedienungsanleitung: 91979867-ba-manoskop-71-80-71ar-80-multilingual.pdf
PDF | 5.65 MB
Produktdatenblatt: STAHLWILLE_50030080_71-80_en.pdf
PDF | 0.21 MB
