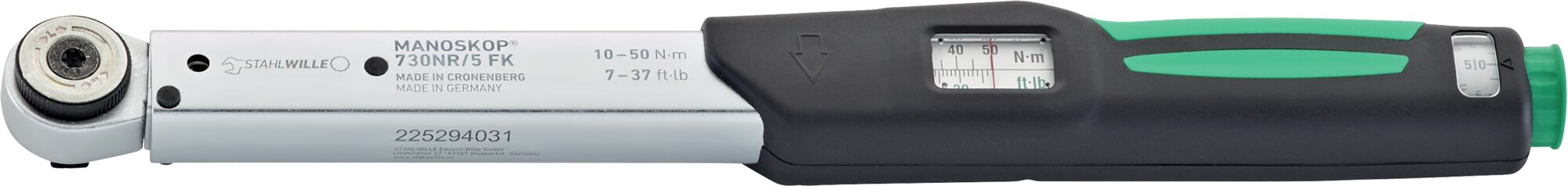

Torque wrench MANOSKOP® with interchangeable head
Torque wrench MANOSKOP® with interchangeable head
730NR
- Robuster, wartungsarmer mechanischer Drehmomentschlüssel für den kontrollierten Schraubanzug.
- Beim Auslösen entsteht ein starker haptischer und akustischer „Klick“ (Doppel-Stopp-Signal).
- Verschleißarmes Auslösesystem mit Biegestab gewährleistet dauerhaft korrekte und sichere Messergebnisse.
- Verschleißarmes Auslösesystem mit Biegestab gewährleistet dauerhaft korrekte und sichere Messergebnisse.
- Schnelles Justieren von außen ohne Demontage möglich.
Produktvideo
Produkt-Varianten
| Product no. | Model | Size | Tool holder size [internal square] | Measuring range N·m | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91381200 | 730NR | 2 | 9 x 12 mm | 2-20 N·m | 2 N·m | 20 N·m | 3/8 | 515 mm | 55 mm | 55 mm | 1155 g | |
| 91381201 | 730NR | 5 | 9 x 12 mm | 10-50 N·m | 10 N·m | 50 N·m | 3/8 | 465 mm | 55 mm | 55 mm | 1250 g | Jetzt entdecken |
| 91381202 | 730NR | 10 | 9 x 12 mm | 20-100 N·m | 20 N·m | 100 N·m | 1/2 | 500 mm | 55 mm | 55 mm | 1415 g | Jetzt entdecken |
| 91381204 | 730NR | 20 | 14 x 18 mm | 40-200 N·m | 40 N·m | 200 N·m | 1/2 | 540 mm | 55 mm | 55 mm | 1690 g | Jetzt entdecken |
| 91381205 | 730NR | 40 | 14 x 18 mm | 80-400 N·m | 80 N·m | 400 N·m | 3/4 | 680 mm | 73 mm | 73 mm | 2900 g | Jetzt entdecken |
| 91381206 | 730NR | II/65 | 22 x 28 mm | 130-650 N·m | 130 N·m | 650 N·m | 3/4 | 1100 mm | 145 mm | 70 mm | 5420 g | Jetzt entdecken |
| 91381208 | 730NR | 100 | 22 x 28 mm | 200-1000 N·m | 200 N·m | 1000 N·m | 3/4 | 1400 mm | 50 mm | 50 mm | 6400 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
Low-wear bending beam system
2-component handle
DIN EN ISO 6789-2
QuickSelect
Eigenschaften
- Mechanical torque wrench with interchangeable head
- no reset to "0" required
- QuickRelease safety lock
- QuickSelect quick settings
Produkt-Highlights
Reliable handling.
The haptic feedback and a clearly audible 'click' as a dual stop signal from the mechanical trigger reliably indicate that the target value has been reached.
Precise torque in an instant.
The main and fine scale with fixed values enables quick, easy, and precise adjustment via the adjustment wheel - for maximum reliability in every application.
Clear fine adjustment.
The user-friendly and easy-to-read dual scale in N·m/ft·lb with main and fine scales allows for precise and easy torque adjustment for reliable and accurate application.
Maximum safety.
The clicking mechanism of our torque wrench is insensitive to further and counter loads - even up to the maximum measuring range limit. This protects both the tool and the workpieces from damage and ensures precision and durability, even with higher forces.
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.
