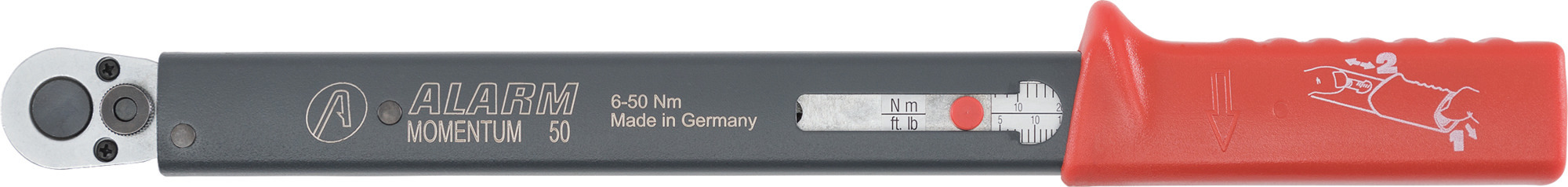

MOMENTUM torque wrench
MOMENTUM torque wrench
43050
Artikel-Nr. 56043050|EAN 4022668014478
- Robust, low-maintenance mechanical torque wrench for controlled tightening in the medium torque range.
- The cycle is indicated by a clear tactile and acoustic click signal.
- The quick adjustment of the torque wrench saves time and contributes to the user-friendliness of the MOMENTUM.
- Thanks to a durable, low-wear trigger system with a bending beam, resetting to "0" is not necessary.
- The clicking mechanism is insensitive to further and counter loads.
Produkt-Varianten
| Product no. | Size | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | LF | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56043050 | 5 | 43050 | 6-50 N·m | 5-36 ft·lb | 6 N·m | 50 N·m | 2 N·m | 3/8 | 375 mm | 28 mm | 23 mm | 293 mm | 900 g |
Technologien und Leistungsmerkmale
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that resetting to '0' is not necessary after use.
Eigenschaften
- clicking type with dual stop signal
- no reset to ‘0’ required
- the measuring element is only loaded during the tightening process
- quick adjustment
- dual scale N·m/ft·lb
- clicking mechanism insensitive to further and counter loads (max. up to the measuring range limit of the torque wrench)
- accuracy ± 4 %
Produkt-Highlights
Clicking dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
Protected.
The internal mechanism is extremely resistant to mechanical wear and well protected against dirt and soiling inside the outer housing.
