96521092

Product no.	Length mm (L)	Width mm (b)	Height mm (h)	Range N·m	Functional length (LF) max. mm	for transducers	Weight	Profile width
96521092	1060 mm	705 mm	355 mm		815 mm	7728 (sizes 1-100)	46400 g	180 mm

Product no.

Length mm (L)

Width mm (b)

Height mm (h)

Range N·m

Functional length (LF) max. mm

for transducers

Weight

Profile width

96521092

1060 mm

705 mm

355 mm

815 mm

7728 (sizes 1-100)

46400 g

180 mm

Eigenschaften

as for perfectControl® No 7794-2, but the drive is via an ergonomically designed handwheel
calibration up to 1000 N·m is possible using the easily attached extension unit No 7791-1
protected by national and international patents
supplied without torque wrench, transducer or notebook

Content:

6 calibrating square drive insert tools No 734K (sizes 4, 5, 12, 20, 40, 100)

6 square drive adaptors (No 409M, No 7787, No 7788, No 7789, No 7789-4, No 7789-5)

1 USB adaptor No 7757-1

1 software TorkMaster 7731-1

1 jack cable No 7751

1 spiral cable No 7752

1 spiral cable No 7751-2 with jack plug and self-locking precision plug

1 low-temperature cable connector

1 hexagon key wrench No 10760CV size 2 mm are included

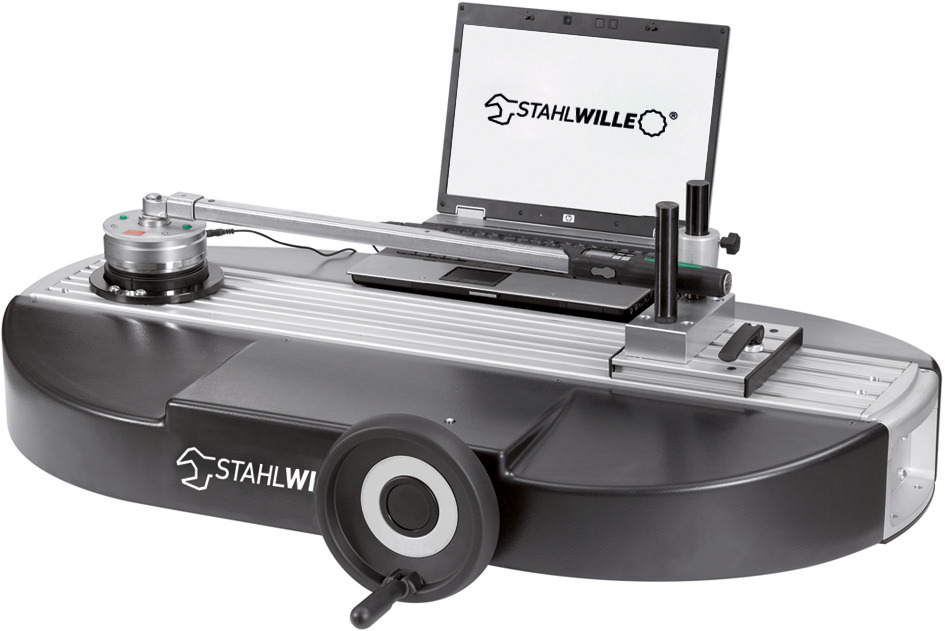

Manual calibrating unit
