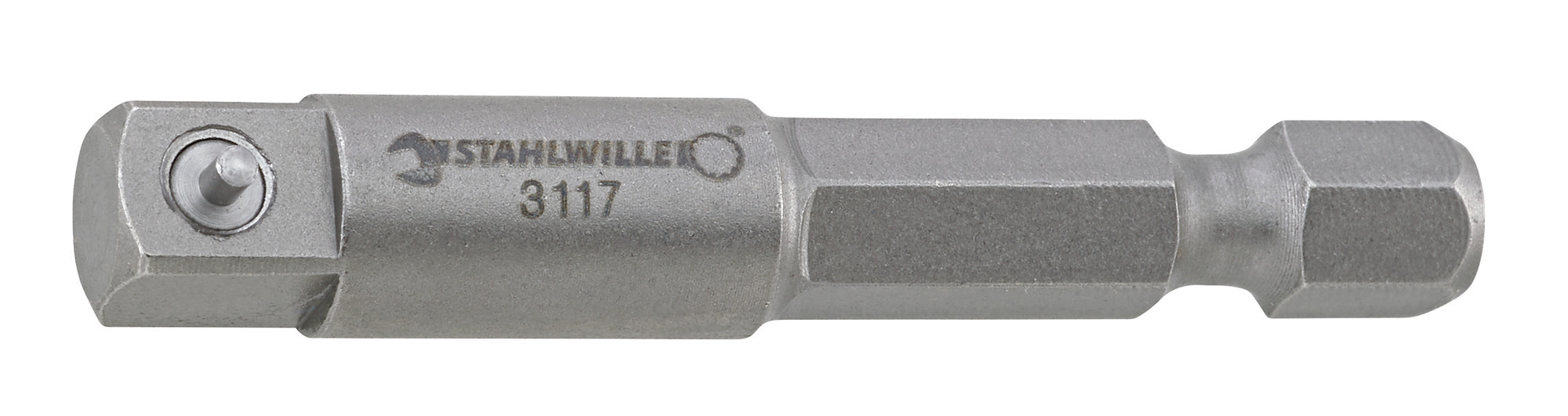

Machine-operated bit connecting part
Machine-operated bit connecting part
3117-3119
Artikel-Nr. 31170000|EAN 4018754331918
Produkt-Varianten
| Product no. | Model no. | Length mm (L) | Height mm (h) | External hex (inch) | External square | External square [inch] | d | External hex drive | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|
| 31170000 | 3117 | 50 mm | 8 mm | 1/4 | E 6,3 mm | 1/4 " | 8,9 mm | E 6,3 | 16 g | |
| 31180000 | 3118 | 50 mm | 13 mm | 1/4 | E 10 mm | 3/8 " | 15,5 mm | E 6,3 | 23 g | Jetzt entdecken |
| 31190000 | 3119 | 50 mm | 15 mm | 1/4 | E 12,5 mm | 1/2 " | 18 mm | E 6,3 | 34 g | Jetzt entdecken |
Eigenschaften
- external square drive DIN 3121/ISO 1174-2 with spring-loaded pin
- external hex drive DIN 3126/ISO 1173
- steel grey, oiled
