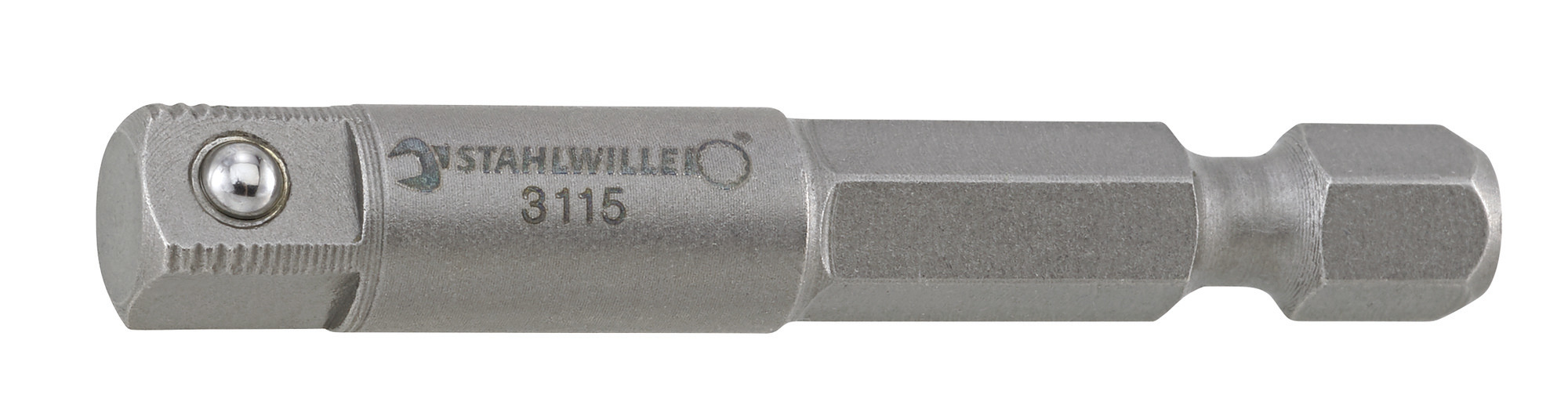

Bit connector
Bit connector
3115
Artikel-Nr. 31150000|EAN 4018754331895
Produkt-Varianten

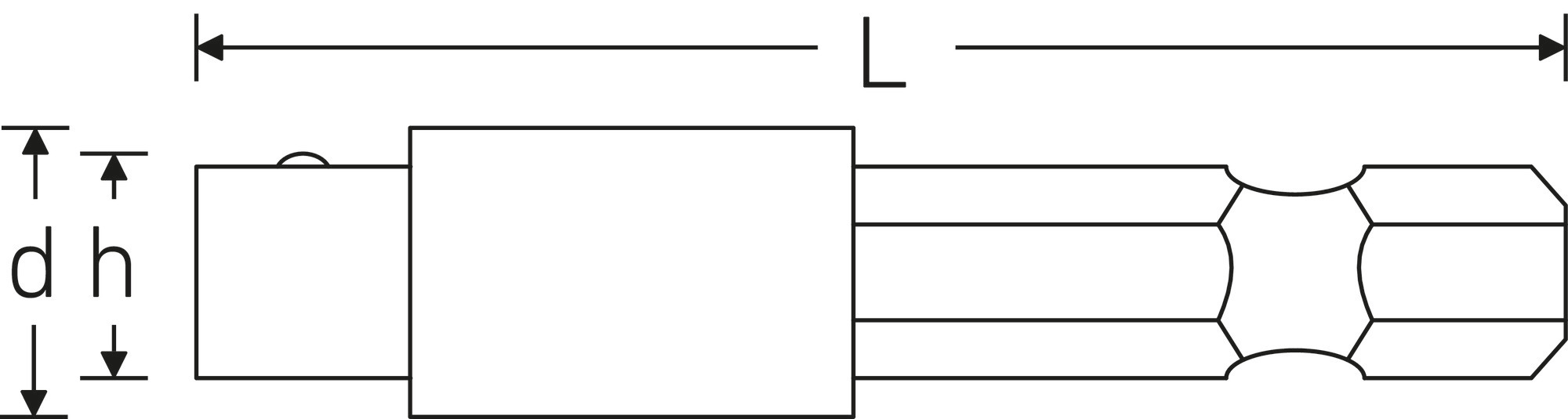

| Product no. | Length mm (L) | Height mm (h) | External hex (inch) | External square | External square [inch] | d | External hex drive | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 31150000 | 50 mm | 8 mm | 1/4 | A 6,3 mm | 1/4 " | 8,9 mm | E 6,3 | 16 g |
Eigenschaften
- to connect sockets and actuating tools
- for torque screwdrivers No. 760 and No. 775
- for hand-operated sockets bits with internal square drive 6.3 (1/4")
- square with spring-loaded ball
- steel grey, oiled surface
- outer square DIN 3120 / ISO 1174-1
- external hex drive DIN 3126 / ISO 1173
