Bit box

Bit box

1206

Artikel-Nr. 96080156|EAN 4018754332021

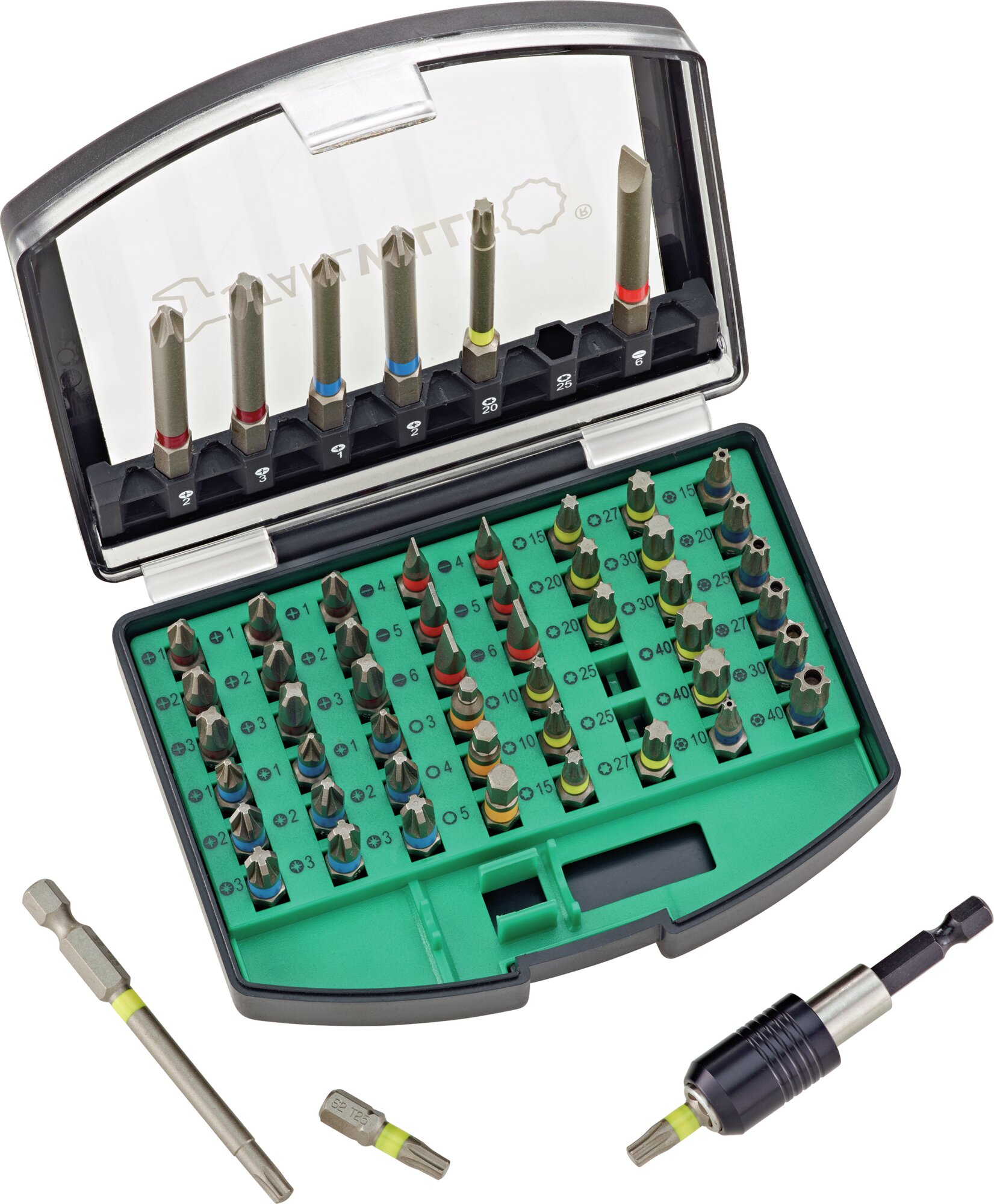

This box supports rapid changes between different screw profiles and keeps frequently needed inserts to hand in a clear layout.
Centred on screw technology, it arose from the demand for standard-compliant interchangeable bits for varying connectors.
Highlights include the magnetic quick‑change holder and long TORX inserts, complemented by short standard bits.
The target group includes assembly specialists and service teams who need to cover many drive profiles with minimal set-up time.
The colour coding, transparent lid, and organised layout make it significantly easier to select what you need, check the contents, and refill.

Produkt-Varianten

Product no.	Model	Contents	Length mm (L)	Width mm (b)	Height mm (h)	Weight (g)	Number of tools
96080156	1206	1 bit holder \| L. 25 mm: SL4;5;6 mm (2x) \| PH1;2;3 (3x) \| PZ1;2;3 (3x) \| T10;15;20;25;27;30;40 (2x) \| T BO10;15;20;25;27;30;40 \| INHEX 3;4;5 mm \| L. 75 mm: SL6 mm \| PH2;3 \| PZ1;2 \| T20;25 \| 56 pieces	128 mm	100 mm	37 mm	490 g	56 pcs.

Eigenschaften

with colour marking
robust box with transparent lid with bits for slotted, TORX®, hex, PHILLIPS® and POZIDRIV® screws
1/4" external hex drive according to DIN 3126 / ISO 1173

Contains 56-pieces:

1 bit holder with quick-change chuck with magnet

3 bits slotted: 4; 5; 6 mm (2x each), L. 25 mm

3 bits PHILLIPS®: PH1; PH2; PH3 (3x each), L. 25 mm

3 bits POZIDRIV®: PZ1; PZ2; PZ3 (3x each), L. 25 mm

7 bits TORX®: T10; T15; T20; T25; T27; T30; T40 (2x each), L. 25 mm

7 bits TORX® with hole: T10; T15; T20; T25; T27; T30; T40, L. 25 mm

3 bits INHEX: 3; 4; 5 mm, L. 25 mm

1 bit slotted: 6 mm, L. 75 mm

2 bits PHILLIPS®: PH2; PH3, L. 75 mm

2 bits POZIDRIV®: PZ1; PZ2, L. 75 mm

2 bits TORX®: T20; T25, L. 75 mm
