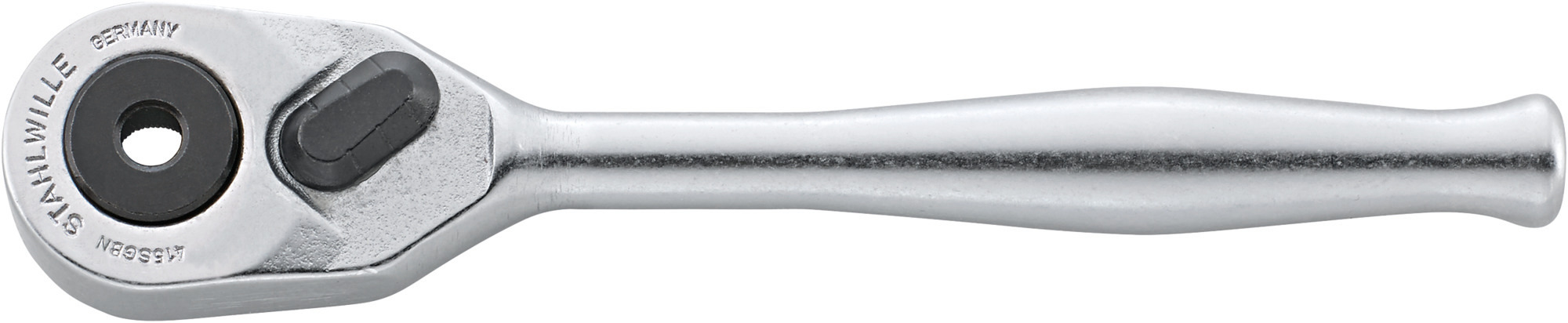

Fine-tooth bit ratchet
Fine-tooth bit ratchet
415SGB N
Artikel-Nr. 11132020|EAN 4018754282944
Produkt-Varianten

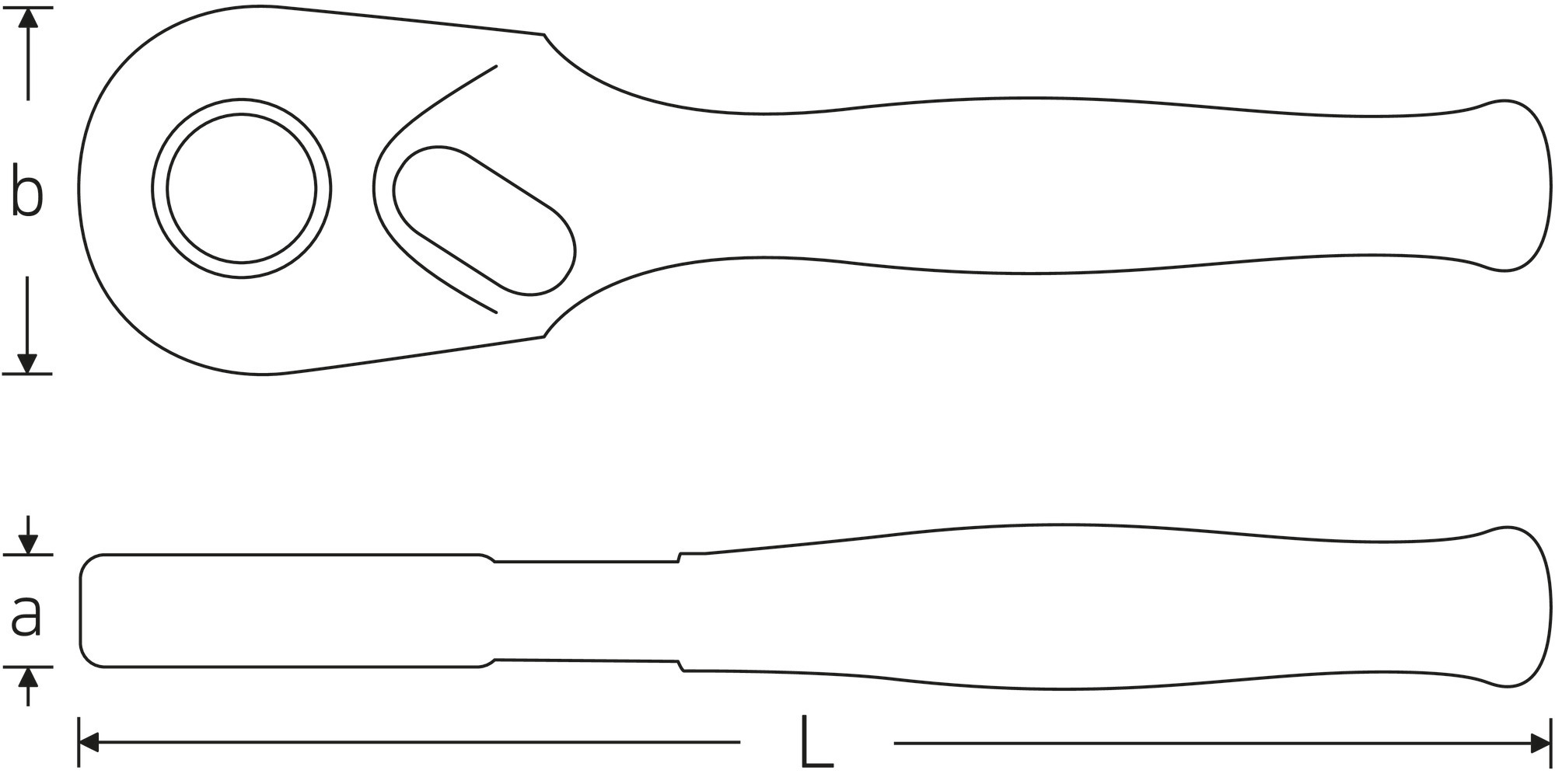

| Product no. | Internal hex drive (inch) | Length mm (L) | Width mm (b) | a | Number of teeth | Working angle | Weight | |
|---|---|---|---|---|---|---|---|---|
| 11132020 | 1/4 | 117 mm | 22.6 mm | 10,7 mm | 80 | 4.5 ° | 85 g |
Technologien und Leistungsmerkmale
Foreign Object Damage
STAHLWILLE protects against FOD (Foreign Object Damage). Our tool is ideal for safety-relevant sectors such as aviation, thanks to the screwless design.
Fine-tooth ratchet mechanism
Our fine-tooth ratchets with 80 teeth re-engage after just 4.5° for maximum precision in confined spaces. 8 pairs of parallel teeth simultaneously ensure maximum load-bearing capacity and particularly smooth running, even at high torques.
Eigenschaften
- Switchable
- 80 teeth
- With steel handle
- Internal hex 1/4"
- DIN 3126/ISO 1173 D 6,3 for bits-screwdriver bits 1/4"
- Internal hex with ring pressure spring
- Bits are easy to insert, lock securely in place and can be pulled out again without any problems; also hexagonal with wide groove (form E, DIN 3126/ISO 1173)
- for working in confined spaces, with working angle of only 4.5°
- FOD-preventive due to screwless design
