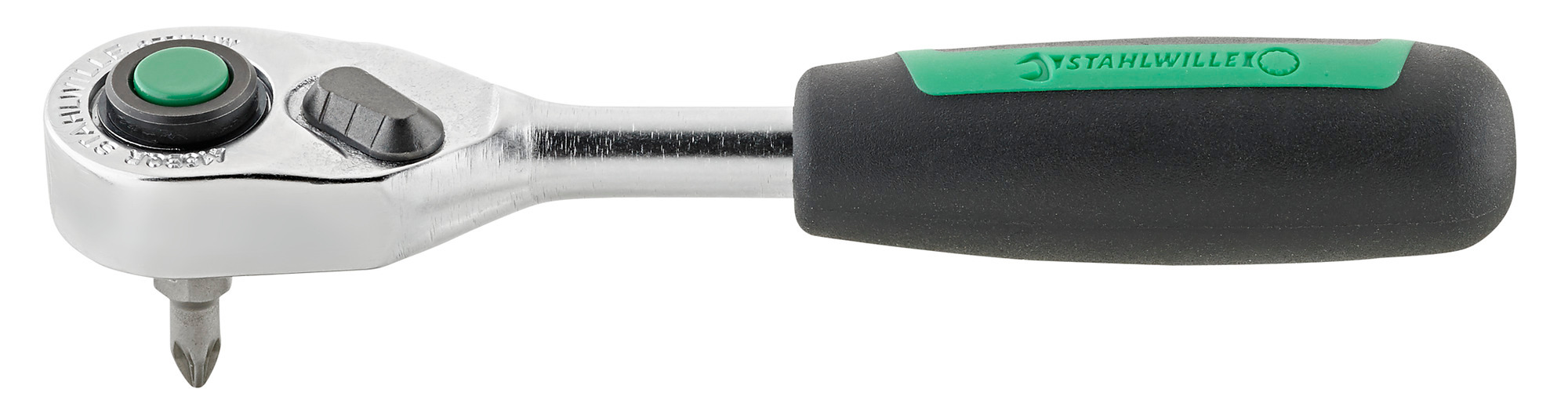

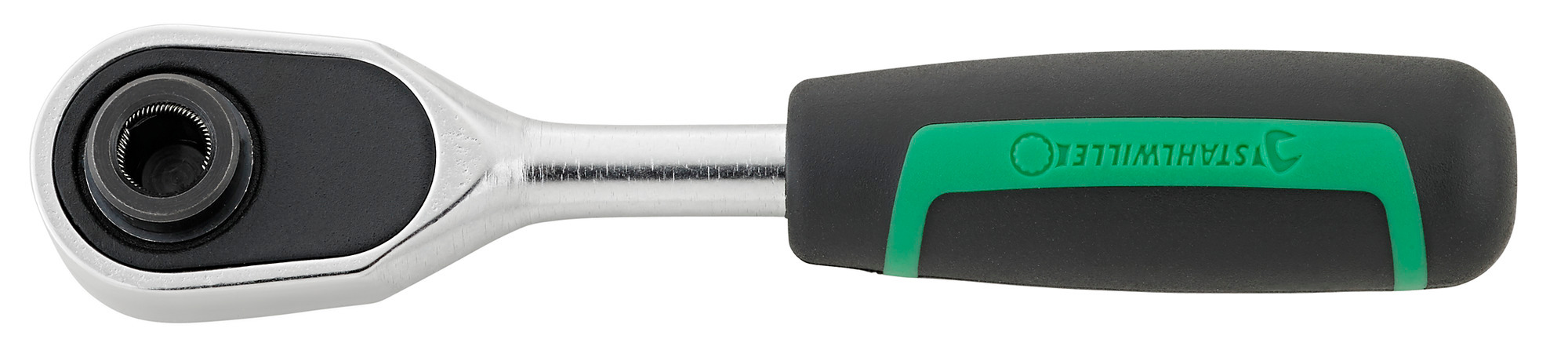

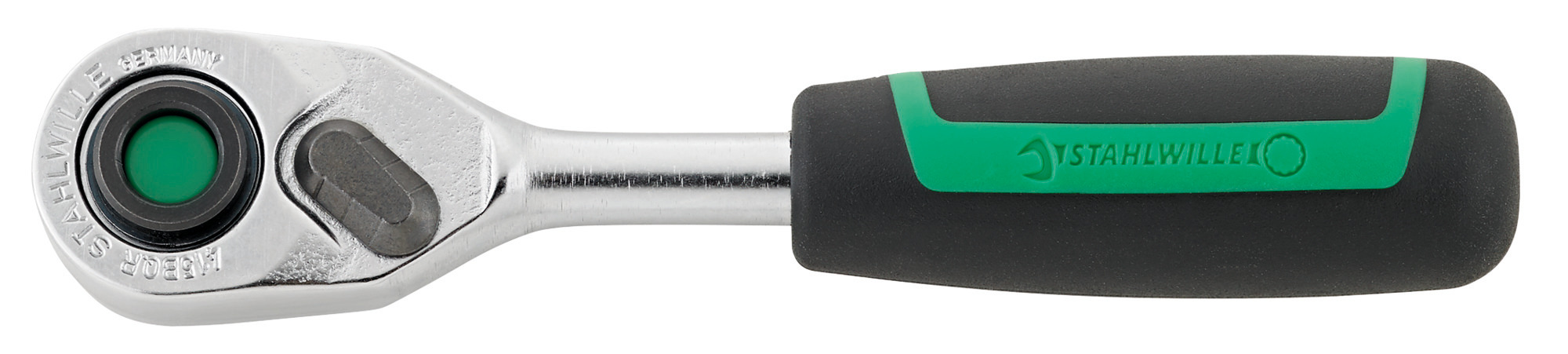

Bit fine-tooth ratchet
Bit fine-tooth ratchet
419B
Artikel-Nr. 11131010|EAN 4018754286607
Produkt-Varianten
| Product no. | Model | Inner hex drive (inch) | Length mm (L) | Width mm (b) | a | Number of teeth | Working angle | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 11131010 | 419B | 1/4 | 115 mm | 22 mm | 16 mm | 80 | 4.5 ° | 76 g |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of sockets and insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
In transducers: The QuickRelease safety lock helps you to quickly mount
and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
Foreign Object Damage
STAHLWILLE protects against FOD (Foreign Object Damage). Our tool is ideal for safety-relevant sectors such as aviation, thanks to the screwless design.
Fine-tooth ratchet mechanism
Our fine-tooth ratchets with 80 teeth re-engage after just 4.5° for maximum precision in confined spaces. 8 pairs of parallel teeth simultaneously ensure maximum load-bearing capacity and particularly smooth running, even at high torques.
Eigenschaften
- reversible, with a push-out function
- 80 teeth
- with 2-component handle
- internal 1/4" hex drive with collar-thrust spring
- for 1/4" screwdriver bits
- for working in tight spaces, with a working angle of just 4.5°
- FOD-preventive due to screwless design
- DIN 3126 / ISO 1173 Form D 6.3
