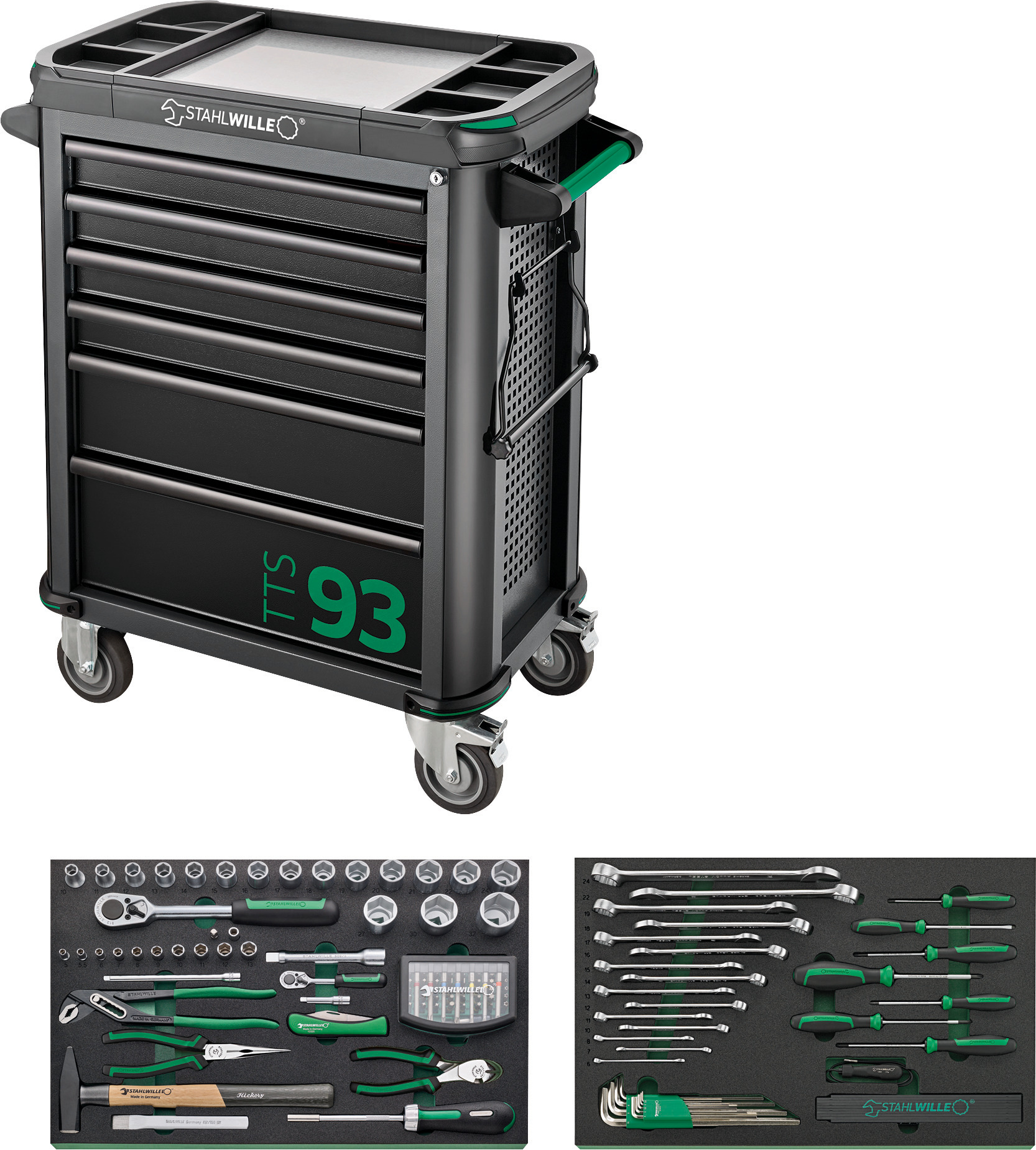

Tool assortment with workshop trolley
Tool assortment with workshop trolley
93/130
- Robust tool trolley with 6 fully extendable drawers and central locking, including a 130-piece tool set.
- Customised basic equipment or expansion of existing equipment in businesses and workshops.
- Extensive range for the highest demands: ratchets with extensions, sockets up to 32 mm, bit ratchet screwdriver and bit box, screwdrivers, various pliers and much more.
- The sturdy 93/130 has a static load capacity of up to 500 kg; the bottom drawer can hold up to 45 kg.
- The tool is securely stored in chemical-resistant, durable foam inlays with precise tool recesses and a signal coloured base layer.
Produkt-Varianten
| Product no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Number of drawers | Number of tools | Colour | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 98830177 | 93/130 | 481 mm | 877 mm | 1000 mm | 6 | 130 pcs. | anthracite, RAL 7016 | 78500 g |
Technologien und Leistungsmerkmale
Modular Inlay System
Tool Control System
Eigenschaften
- central locking with a cylinder lock and folding key
- tilt protection - it is not possible to pull out several drawers at the same time
- 2 handles, all-round impact protection
- durable plastic tray made of ABS with compartments for small parts
- oil and acid-resistant wheels (Ø 125 mm) with bearings protected from the ingress of dirt and fibres, and 2 parking brakes
- perforation on both sides for hooks No. 8031-8041, e.g., for larger tools
- 6 easily removable drawers (black, RAL 9005) with full extension runners (370 mm) and ball bearing cage guide
- with paper roll holder
- safely integrated in the modular Tool Control System (TCS)
Key features of the tool trolley
Two-stage safety concept:
1 tool trolley, anthracite No. 93/6 A: 6 drawers
Contains 130-pieces:
96830244
10 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13 mm
17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm
2 extensions 1/4" No. 405: L. 54; 150 mm
1 ratchet 1/4" No. 415-2K: L. 117 mm
1 extension 1/2" No. 509: L. 130 mm
1 ratchet 1/2" No. 512-2K: L. 265.5 mm
1 telephone pliers No. 6730: L. 200 mm
1 water pump pliers No. 6551: L. 240 mm
1 heavy-duty side cutter No. 6721: L. 160 mm
1 bit ratchet screwdriver 1/4" No. 4008: L. 250 mm
1 bit adaptor, manual 1/4" No. 3116: L. 25 mm
1 bit holder 1/4" No. 412: L. 25 mm
1 flat chisel No. 102: W. 17; L. 150 mm
1 engineer’s hammer No. 10961: 500 g
1 cable knife No. 12320: Blade length: 90 mm
1 bit box 1/4" No. 1206: 1 bit holder | L. 25 mm: SL4;5;6 mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5 mm | L. 75 mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-pieces
96830245
15 combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 22; 24 mm
1 wooden folding ruler No. 13112: L. 2 m
1 mini magnetic lifter No. 12600: 270 g
1 L-Key set hex No. 10765/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm
1 slotted screwdriver No. 4620: 0.8 x 4.0 x 100 mm
1 electrician's slotted screwdriver No. 4628: 0.4 x 2.5 x 60 mm
2 PH cross-head screwdrivers No. 4630: PH1; PH2
3 TORX® screwdrivers No. 4650: T15; T20; T25
Produkt-Highlights
Takes on anything.
The 877 x 481 mm work surface is particularly suitable for working on large components. The integrated compartments for small parts ensure a tidy and clearly arranged storage area. Thanks to its robust construction, the TTS 93 has a static load capacity of 500 kg. Thanks to reinforcements, the drawers can be loaded with 30 kg and the bottom drawer even with 45 kg.
Full configuration as standard.
Whether paper roll holders, perforations on both sides for attaching accessories, locking brakes or oil and acid-resistant smooth-running castors (Ø 125 mm) with thread protection. Our tool trolley comes with many features as standard.
