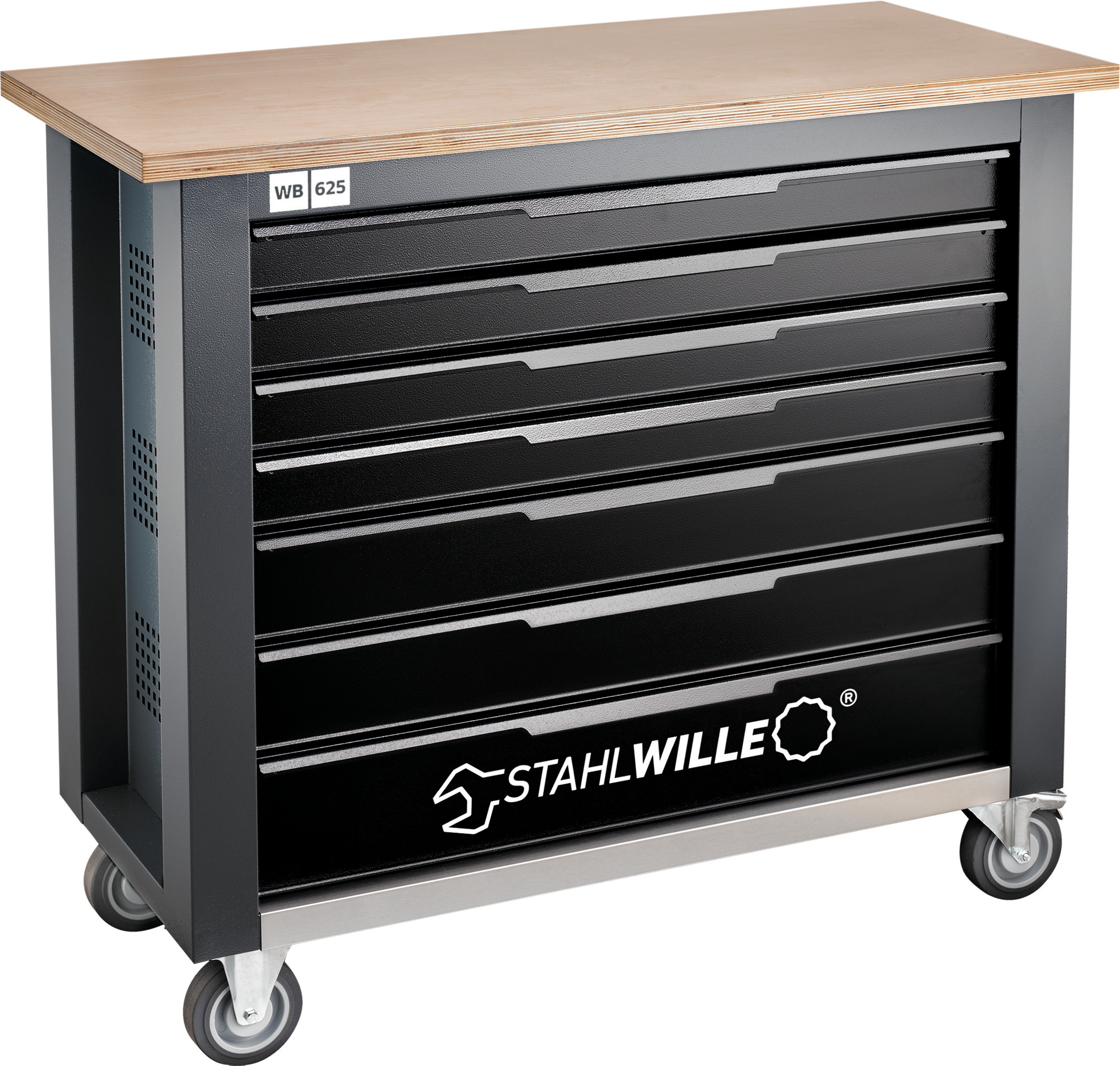

Assortment tools with workbench
Assortment tools with workbench
WB 625/161QR
- 7 easy-to-remove full-extension drawers with a ball cage guide for smooth running.
- Extra large work surface 1150 x 500 x 30 mm with robust birch wood multiplex (FSC certification).
- The tool assortment contains 161 parts for different applications and tasks.
- The three-stage safety concept ensures protection for tools and accessories.
- The robust oil- and acid-resistant wheels allow flexible use of the workbench at different work locations.
Produkt-Varianten
| Art. no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Number of drawers | Number of tools | Colour | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 98830179 | WB 625/161QR | 500 mm | 1150 mm | 1045 mm | 7 | 161 pcs. | anthracite, RAL 7016 | 119000 g |
Technologien und Leistungsmerkmale
Modular Inlay System
Tool Control System
QuickRelease
Eigenschaften
- Three-stage safety concept:
- Central locking by lateral cylinder lock with fold-down key
- Individual locking prevents unintentional opening while driving
- Tilt protection -. several drawers cannot be pulled out at the same time
- 7 drawers with full extension and ball cage runners
- large worktop with FSC-certified birch plywood worktop (1150 x 500 x 500 mm) Worktop (1150 x 500 x 30 mm)
- Working height of 104 cm
- Stainless steel trim
- Oil and acid resistant wheels (Ø125 mm) with thread protection and with two locking brakes
- Body RAL 7016, drawers and cabinet part RAL 9005 in robust industrial powder coating
- hole grid on the side for hook no. 8031-8041, e.g. for larger tools
- can be equipped with STAHLWILLE standard and TCS inserts
- drawer load 1 - 4 of up to 40 kg, 3 -7 up to 60 kg
Top feature workbench:

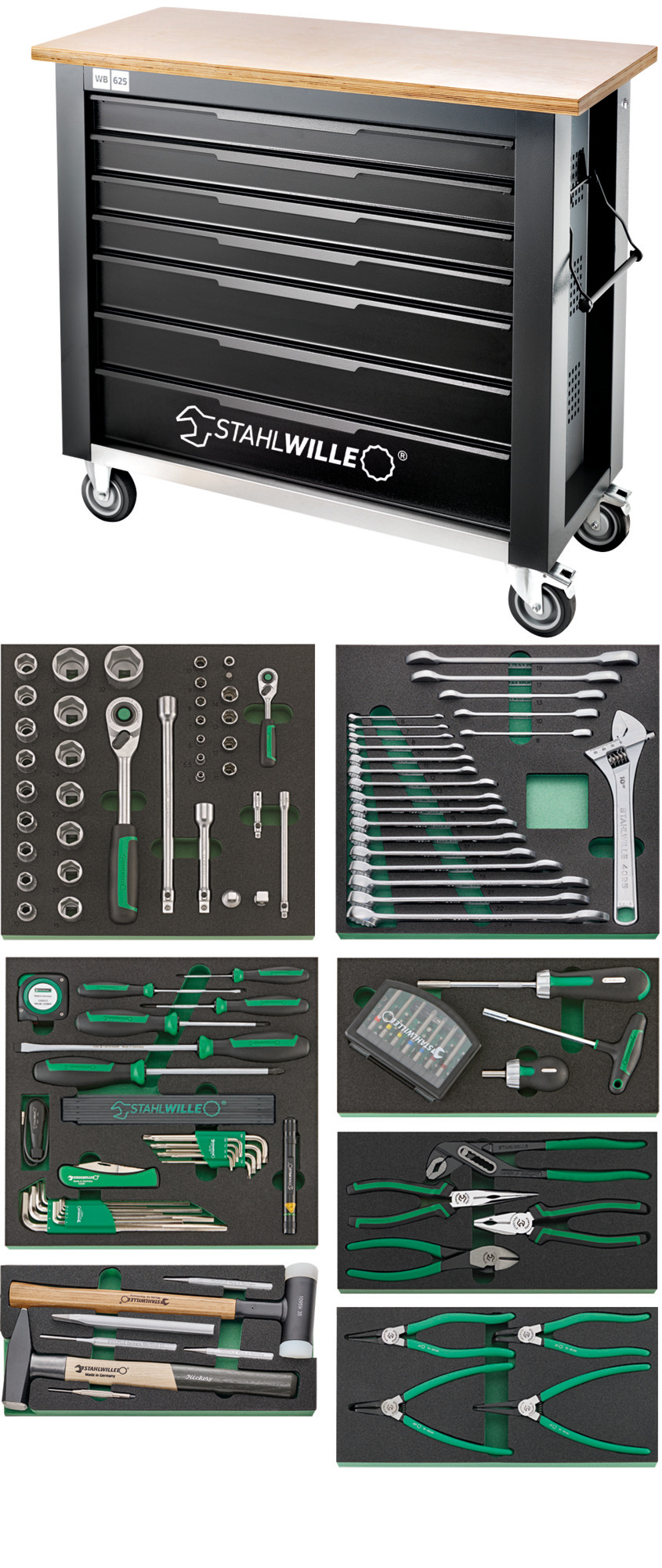

Contents 161-pcs:
1 Workbench, anthracite No. WB625: 7 drawers
11 sockets, 1/4" No. 40: 5; 5,5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
17 sockets, 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm
2 QR extensions, 1/4" No. 405QR: 54; 150 mm
1 QR fine-tooth ratchet No. 415QR N: 1/4"
1 Bit holder No. 412: 1/4"
1 Bit connector No. 3116
2 QR extensions, 1/2" No. 509QR: 130; 255 mm
1 QR fine-tooth ratchet, 1/2" No. 512QR N
1 Enlargement piece No. 410: 1/4 to 1/2"
1 Reducer No. 513: 1/2 to 3/8"
2 Bit ratchets No. 4008: Size 1; 2
1 Bit holder No. 4007: 1/4"
1 Bit set No. 1206: 1 Bit holder | L.25 mm: SL4;5;6mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5mm | L.75mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-piece set
1 Water pump pliers No. 6551: 240 mm
1 Side cutters No. 6602: 160 mm
1 Flat nose pliers No. 6529: 200 mm
1 Combination pliers No. 6501: 180 mm
16 Combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm
1 Combination spanner, adjustable No. 4025
5 Ratchet combination spanners No. 17F: 8; 10; 13; 17; 19 mm
1 Electrician's screwdriver No. 4628: 0.4x 2.5x 60 mm
2 Slotted screwdriver No. 4620: 0.8 x 4.0 x 100; 1.6 x 10.0 x 200 mm
3 PHILLIPS® screwdriver No. 4630: PH1; PH2; PH3
1 cable knifeNo. 12320
1 rolling tape measureNo. 12935: 3 m
1 mini magnetic lifterNo. 12600: 270 g
1 wooden folding rulerNo. 13111: 2 m
1 Set ballpoint offset screwdrivers TORX® No. 10771/8: T9; T10; T15; T20; T25; T27; T30; T40; 8 pieces
1 Set offset screwdrivers hexagonal No. 10765/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm; 9 pieces
1 Locksmith's hammer No. 10961: 500 g
1 Soft-face hammer No. 10959: 35 mm
1 Flat chisel, flat oval No. 102/175: 175 mm
1 Pin punch, octagonal No. 108/150: 150 x 6 mm
1 Centre punch, octagonal No. 105/100: 100 x 10 mm
1 Pin punch No. 109/6: 3.4 mm
1 Piercing punch, octagonal No. 104/120: 120 mm
1 Circlip pliers, polished No. 6543: J2
1 Circlip pliers, polished No. 6544: J21
1 Circlip pliers, polished No. 6545: A2
1 Circlip pliers, polished No. 6546: A21
Produkt-Highlights
Mobile workstation.
The 7 full-extension drawers are pre-equipped with STAHLWILLE tools in safety foam inlays. The spacious 115 cm long work surface allows you to examine large components. With a working height of 104 cm and four smooth-running wheels, you have the ideal conditions for ergonomic and mobile working, both in and outside the workshop.
Secure down to the last detail.
The central lock with countersunk, side-mounted cylinder lock, together with the foldable key, protects against injury and damage. The individual locking mechanism prevents unintentional opening during transit - the anti-tilt protection makes it impossible to pull out multiple drawers simultaneously.
