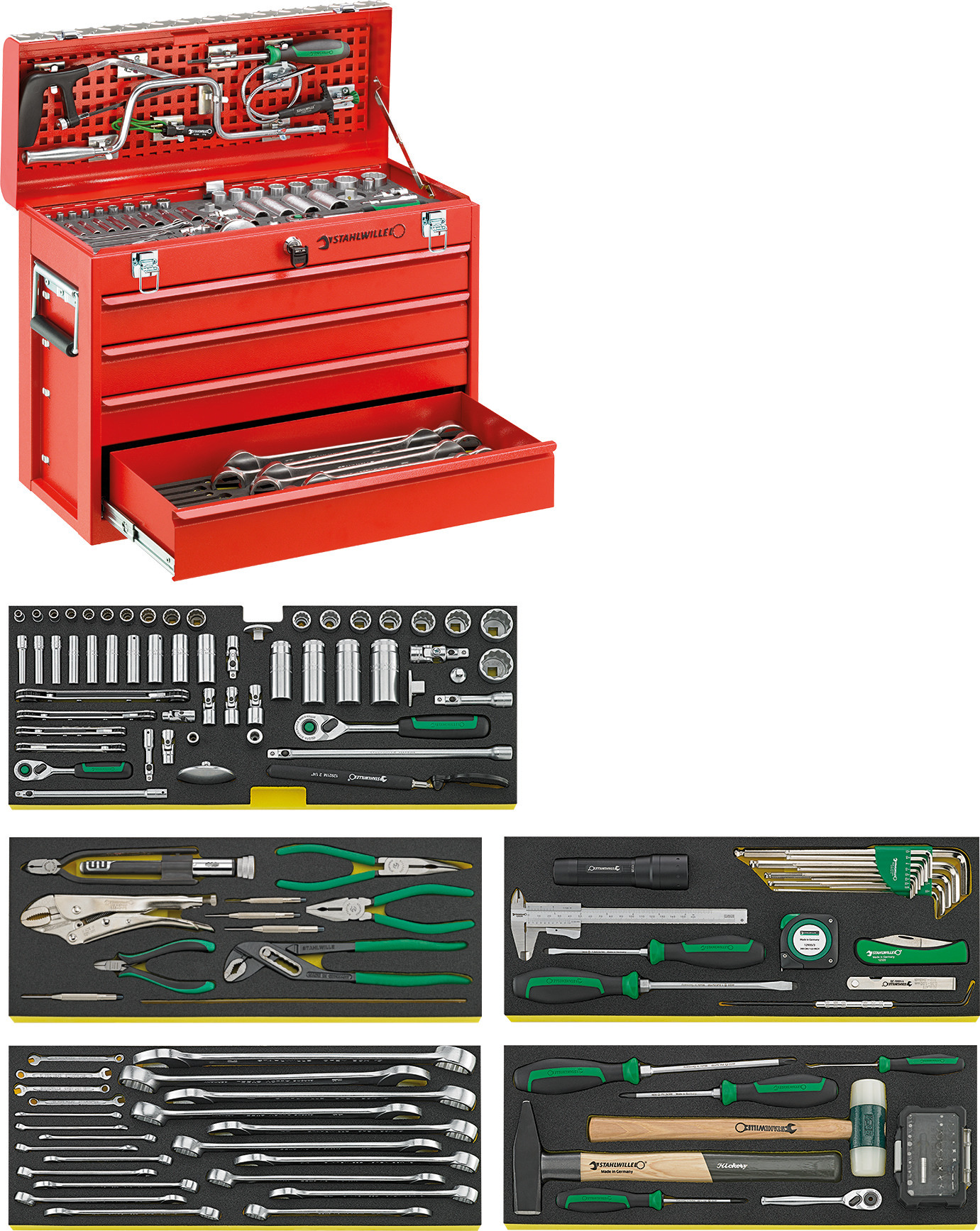

Key features of the tool box

• with 4 drawers, a compartment under the lid, a safety lock and a sturdy aluminium structural sheet on the lid
• wide, spring-mounted, plastic-covered handles on the sides
• high-quality, fully-extendable stable sliding rail system
• easy-to-remove drawers
• individual fitting of the perforated sheet with spring clamps No. 8050



• for maintenance work on aircraft and helicopters
• safely integrated in the modular Tool Control System (TCS)

1 carrying case No. 13216N/4

Contains 147-pieces:

Lid contents

1 QuickRelease speeder brace 3/8" No. 453QR: 408 mm

1 bit slotted 1/4" No. 1163: 0.6 x 4.5 mm

1 bit holder 1/4" No. 4000: L. 190 mm

1 hacksaw No. 12053: L. 252 mm

1 mini magnetic lifter No. 12600: 270 g

1 claw lifter No. 12922: Ø 6 mm; L. 540 mm

2 tool spring clips No. 8050: Size 6; 12



96830795

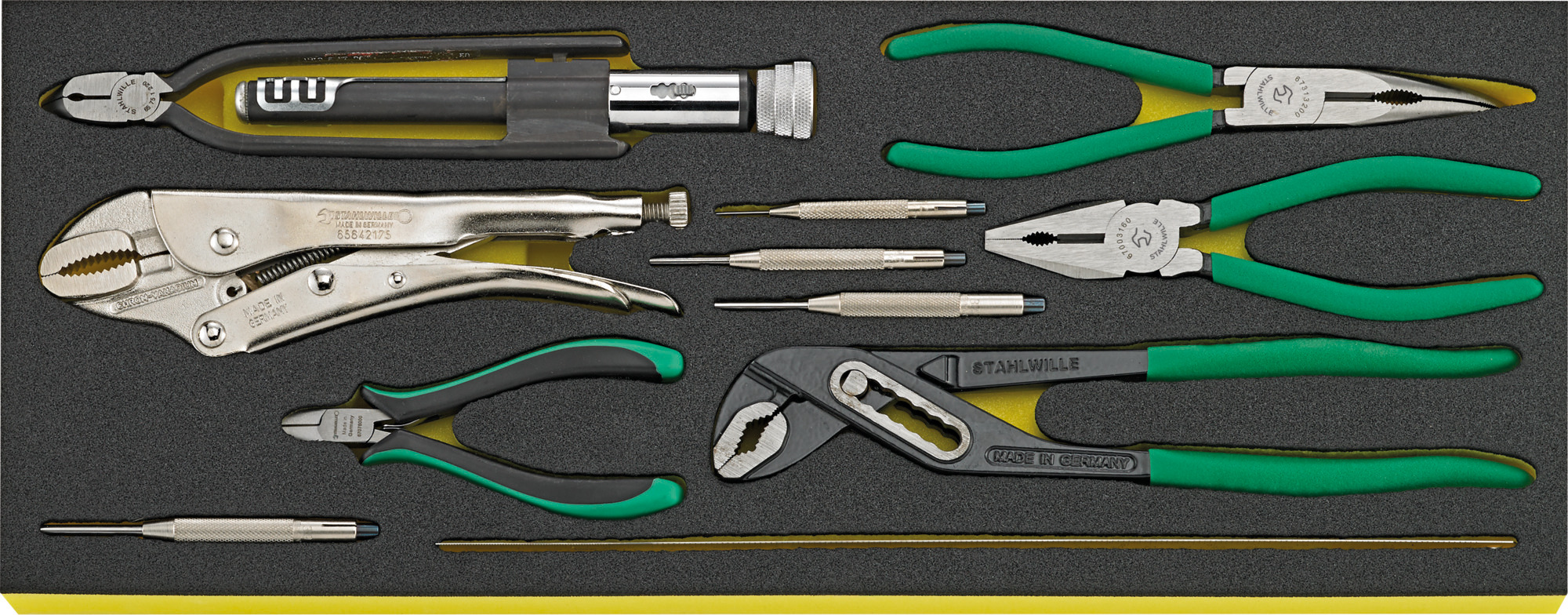

1 telephone pliers No. 6731: L. 200 mm

1 combination pliers No. 6700: L. 160 mm

1 water pump pliers No. 6551: L. 240 mm

1 self-grip wrench No. 6564: L. 175 mm

1 wire twisting pliersNo. 6575: L. 230 mm

1 electronics side cutters No. 6707: L. 115 mm

4 pin punches No. 109: Ø 1.4; 2.8; 3.4; 3.9 mm

1 steel ruler No. 13110: L. 300 mm



96830796

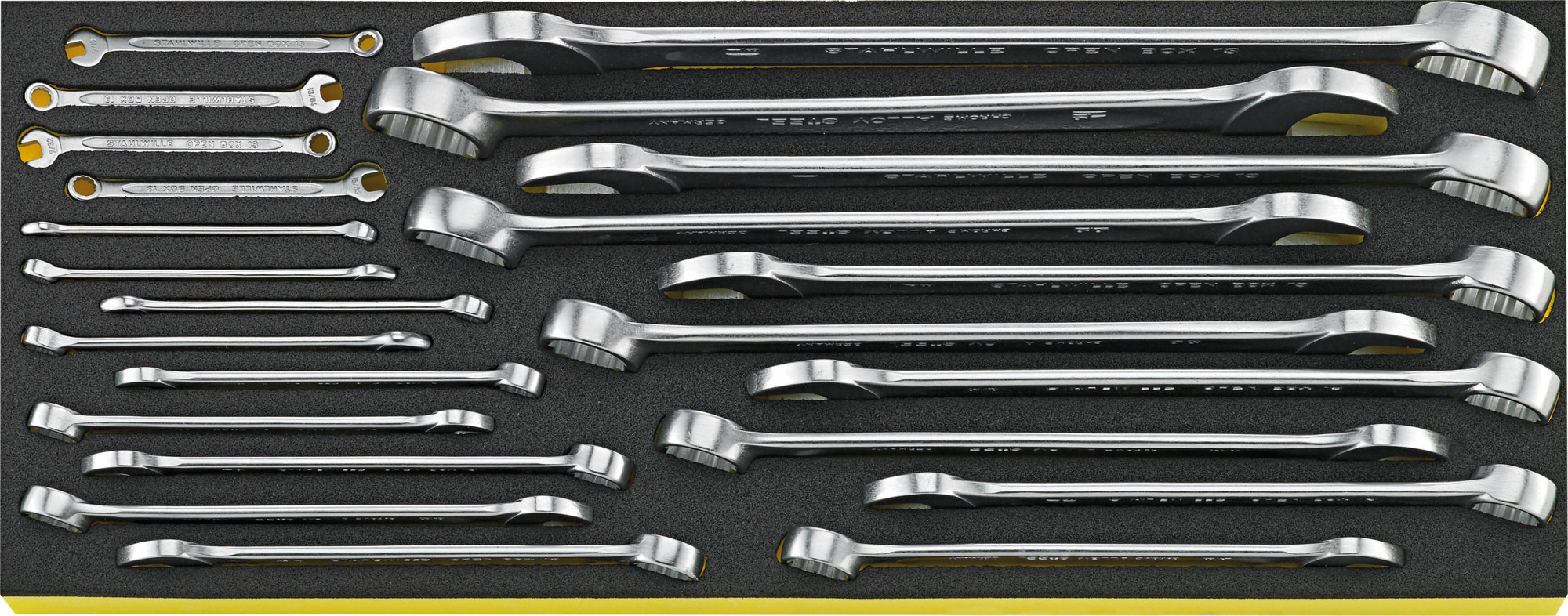

23 combination spanners No. 13a: 3/16; 13/64; 7/32; 15/64; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32; 13/16; 7/8; 15/16; 1; 1 1/16; 1 1/8“



96831793

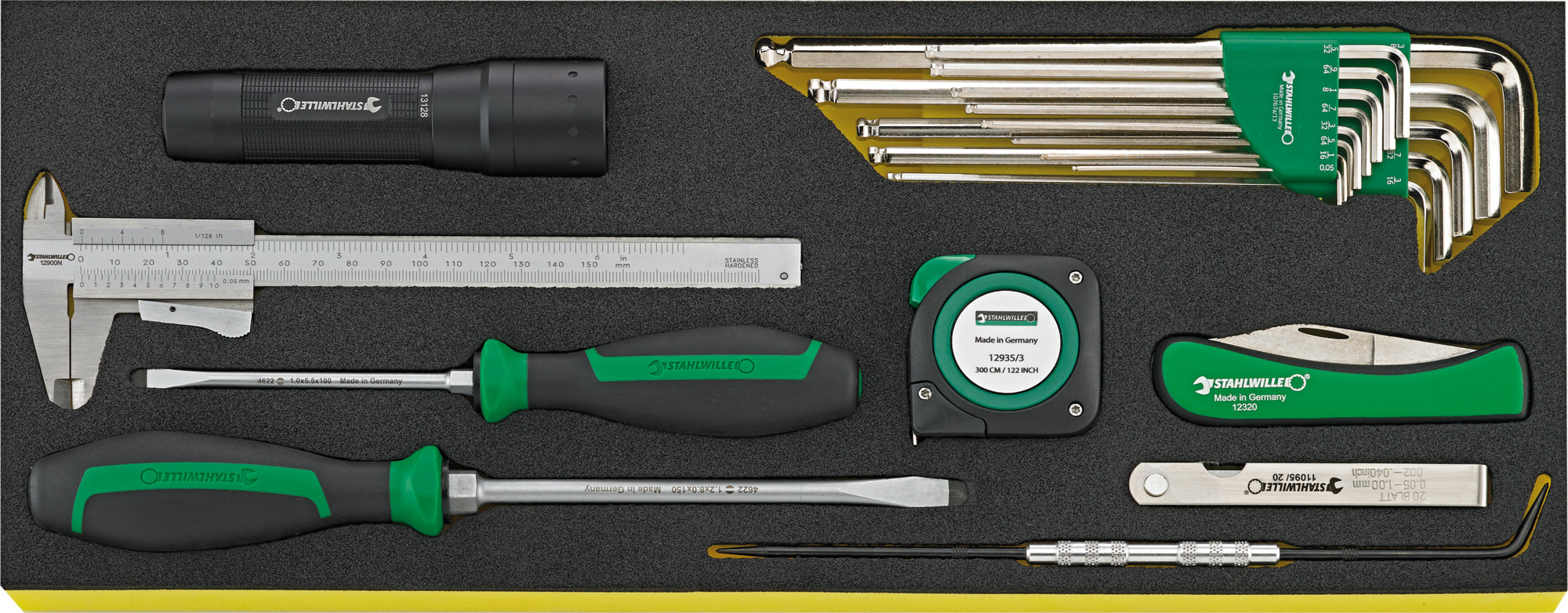

2 slotted screwdrivers No. 4622: 1.0 x 5.5 x 100; 1.2 x 8.0 x 150 mm

1 precision feeler gauges, 20 blades No. 11095: 0.05-1 mm

1 tape measure No. 12935: L. 3 m

1 caliper No. 12900: Measuring range: 150 mm/6"

1 ball-ended L-Key set hex No. 10767a/13: 0.050; 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 3/16; 7/32; 1/4; 5/16; 3/8"

1 cable knife No. 12320: Blade length: 90 mm

1 scriber No. 12321: L. 250 mm

1 torch No. 13128: 320 lm



96831794

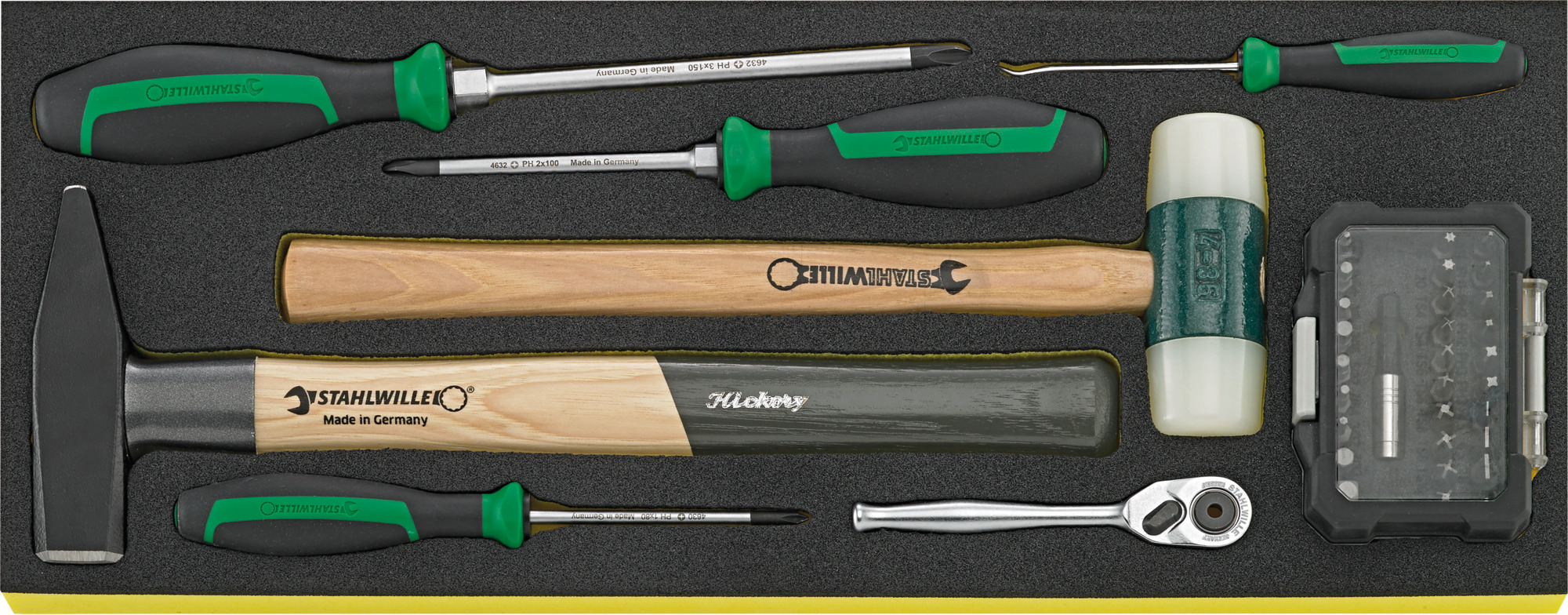

1 bit fine-tooth ratchet 1/4" No. 415SGB N: L. 117 mm

3 PH cross-head screwdrivers No. 4632: PH1; PH2; PH3

1 engineer’s hammer No. 10961: 500 g

1 nylon hammer No. 10956: Ø 35 mm

1 bit box No. 1208: 1 quick-change holder 1/4" | L. 25 mm: SL4,5;6,5;8 mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-pieces

1 hook tool No. 13001: Angled 45°



96835692

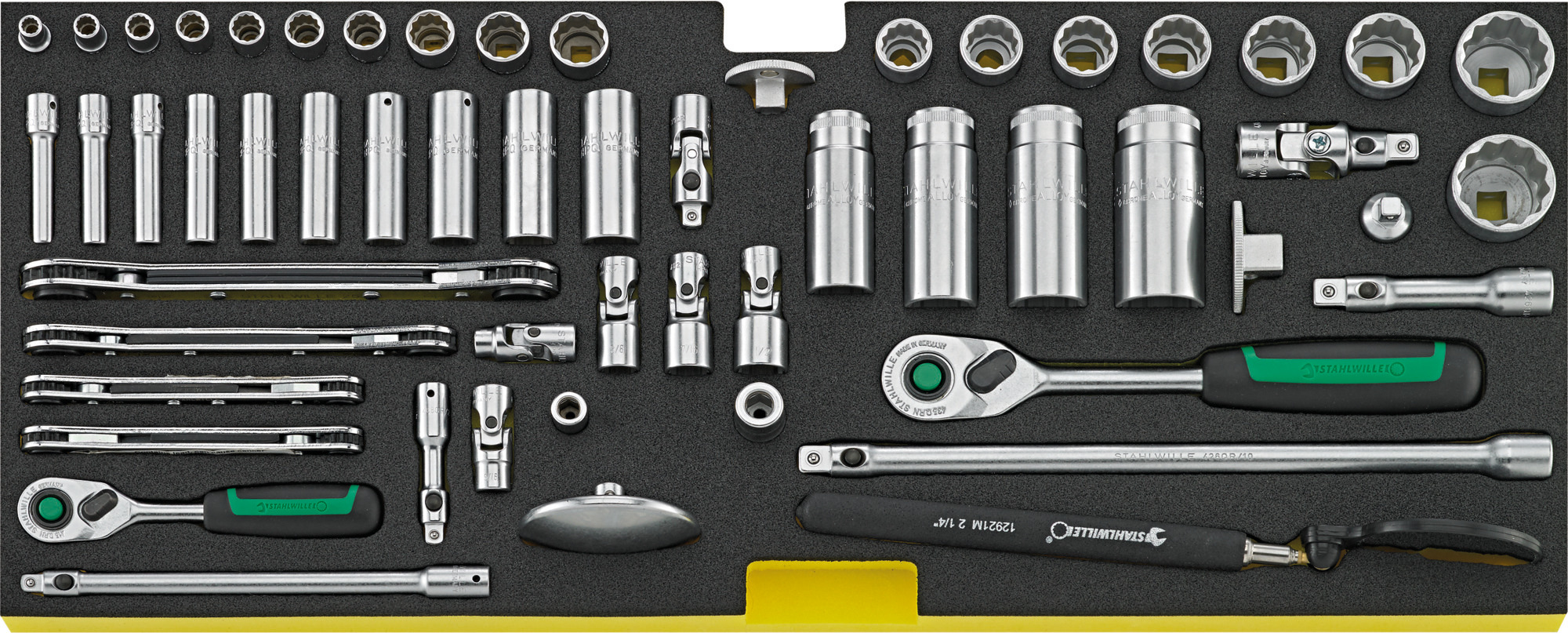

4 double-ended ratchet ring spanners No. 25a: 1/4 x 5/16; 5/16 x 11/32; 3/8 x 7/16; 1/2 x 9/16"

10 sockets with bi-hex 1/4" No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

10 sockets long, with bi-hex 1/4" No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16

5 uniflex sockets with bi-hex 1/4" No. 402a: 1/4; 5/16; 3/8; 7/16; 1/2"

2 QuickRelease extensions 1/4" No. 407/1QR: L. 55; 150 mm

1 QuickRelease universal joint 1/4" No. 407QR: L. 38 mm

1 square drive adaptor No. 409M: 1/4 to 3/8"

1 bit holder 1/4" No. 412: L. 20 mm

1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm

8 sockets with bi-hex 3/8" No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1“

4 sockets with bi-hex 3/8" No. 46a: 5/8; 11/16; 3/4; 7/8“

1 QuickRelease extension 3/8" No. 426QR: L. 75

1 QuickRelease extension 3/8" No. 427/1QR: L. 240 mm

1 QuickRelease universal joint 3/8" No. 428QR: L. 60 mm

1 square drive adaptor No. 431: 3/8 to 1/4"

1 square drive adaptor No. 432M: 3/8 to 1/2"

1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L. 193 mm

1 bit holder 3/8" No. 443: L. 32 mm

1 telescopic mirror No. 12921M: Ø 50 mm
