Line Maintenance set in tool box No 13216/4

Line Maintenance set in tool box No 13216/4

13214

Artikel-Nr. 98814803|EAN 4018754170203

    Produkt-Varianten

    Product no.Length mm (L)Width mm (b)Height mm (h)Number of toolsWeight
    98814803580 mm300 mm494 mm146 pcs.27500 g

    Technologien und Leistungsmerkmale

    QuickRelease

    The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.

    Tool Control System

    The intelligent modular insert system protects and organises the tools in tool boxes, workshop trolleys and workshop benches. Two-colour foam inlays make checking the completeness of the tools quick and easy.

    Eigenschaften

      • For maintenance on aeroplanes and helicopters

      Contents 146 pieces:

      1 Carrying case No. 13216N/4

      Contents cover:

      1 Tool spring clip Nr. 8036/1

      1 Tool spring clamp No. 8050-6

      1 Claw gripper No. 12922

      1 Mini magnetic lifter No. 12600: 270 g

      1 Metal saw bow No. 12053: L.252 mm

      1 Bit holder 1/4" No. 4000-2K: L.190 mm

      1 QuickRelease crank 3/8" No. 453QR: L.408 mm

      1 Bit screwdriver bit 1/4", for slotted screws No. 1163: 0.6 x 4.5 mm

      Contents insert TCS4 LH LR WK M.WKZ. | 96830795:

      1 Telephone pliers No. 67313200: L.200 mm

      1 Combination pliers No. 67003160: L.160 mm mm

      1 Water pump pliers No. 65516240: L.240 mm

      1 Grip pliers No. 65642175: L.175 mm

      1 Wire twist pliers No. 65751220: L.230 mm

      1 Electronic side cutter No. 67076000: L. 115 ;mm

      4 Pin punch No. 109: 1.4; 2.8; 3.4; 3.9 mm

      1 Steel ruleeNo. 13310: L.300 mm

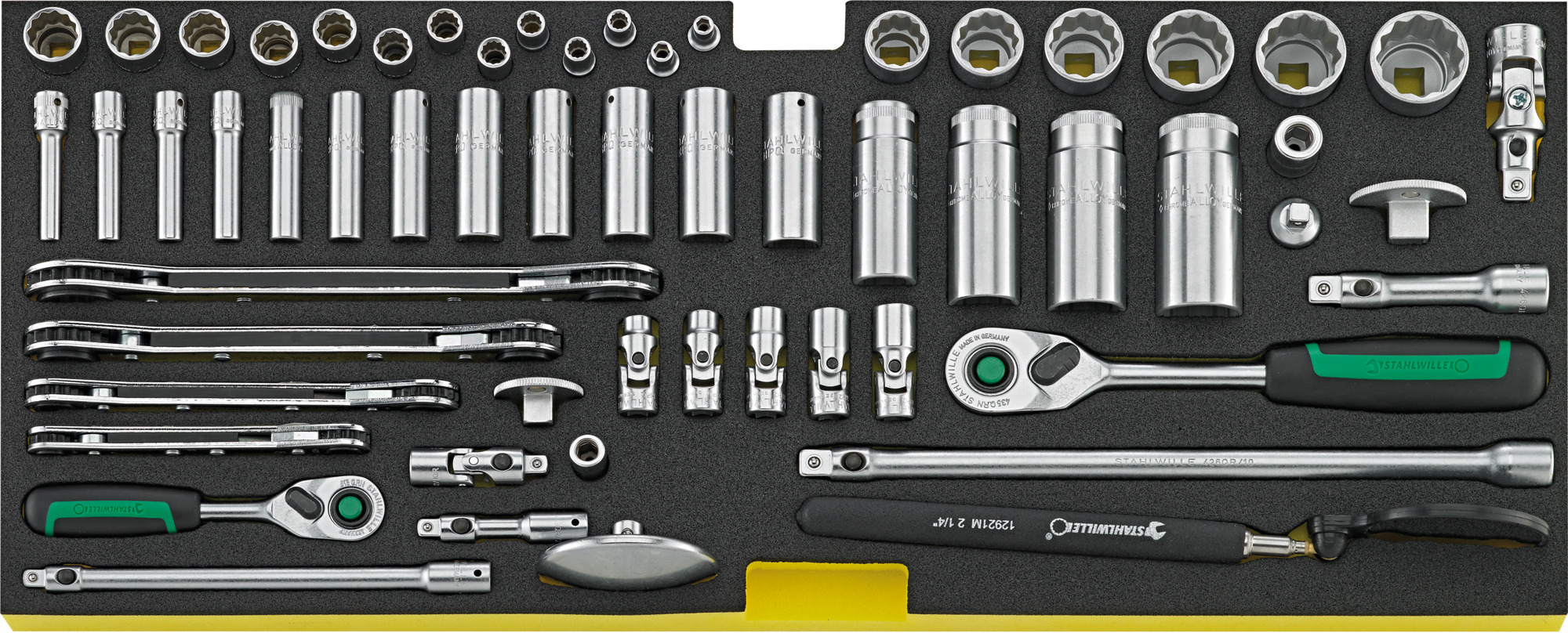

      Contents insert TCS 13214 TOP METR. | 96830804:

      2 sockets 1/4" No. 40: 4; 4,5 mm

      11 sockets 1/4" No. 40D: 5; 5,5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

      1 socket 1/4", long No. 40L: 4.5 mm

      11 sockets 1/4", long No. 40DL: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

      5 articulated sockets 1/4" No. 402: 6; 7; 8; 9; 10 mm

      1 QuickRelease universal joint 1/4" No. 407QR: L.38 mm

      2 QuickRelease extensions 1/4" No. 408QR: L.55; 150 mm

      1 enlarger No. 409M: 3/8" male square, 1/4" female square

      1 QuickRelease single tooth ratchet 1/4" No. 415QR N: L.117 mm

      1 Bit holder 1/4" No. 412: L.20 mm

      6 Sockets 3/8" No. 45: 15; 17; 19; 21; 22; 24 mm

      4 Sockets 3/8", long No. 46: 15; 17; 19; 21 mm

      2 QuickRelease extensions 3/8" No. 426QR: L.75 ; 240 mm

      1 QuickRelease universal joint 3/8" No. 428QR: L.46 mm

      1 Reducer No. 431: 1/4" external square, 3/8" internal square

      1 Enlargement piece No. 432M: 1/2" external square, 3/8" internal square

      1 Bit holder No. 443: 5/16" internal hex, 3/8" internal square

      1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L.193 mm

      4 ratchet ring spannersNo. 25: 7 x 8; 9 x 10; 12 x 13; 17 x 19 mm

      1 telescopic mirror No. 12921M: D.32 mm

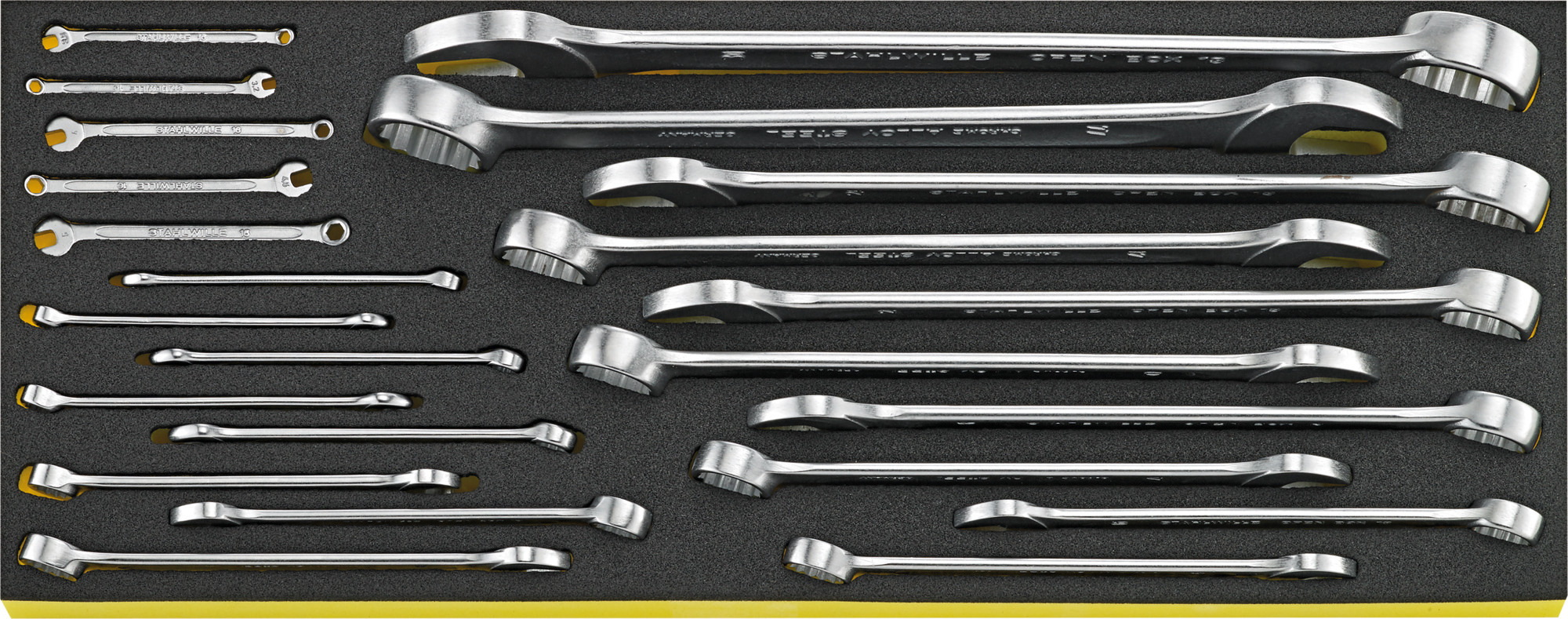

      Contents insert TCS 13214 NO.16 +13 METR |96830805:

      18 combination spanners No. 13: 5.5; 6; 7; 8; 9; 10; 12; 13; 14; 15; 17; 19; 20; 21; 22; 24; 27; 30 mm

      5 combination spanners No. 16: 3.2; 3.5; 4; 4.5; 5 mm

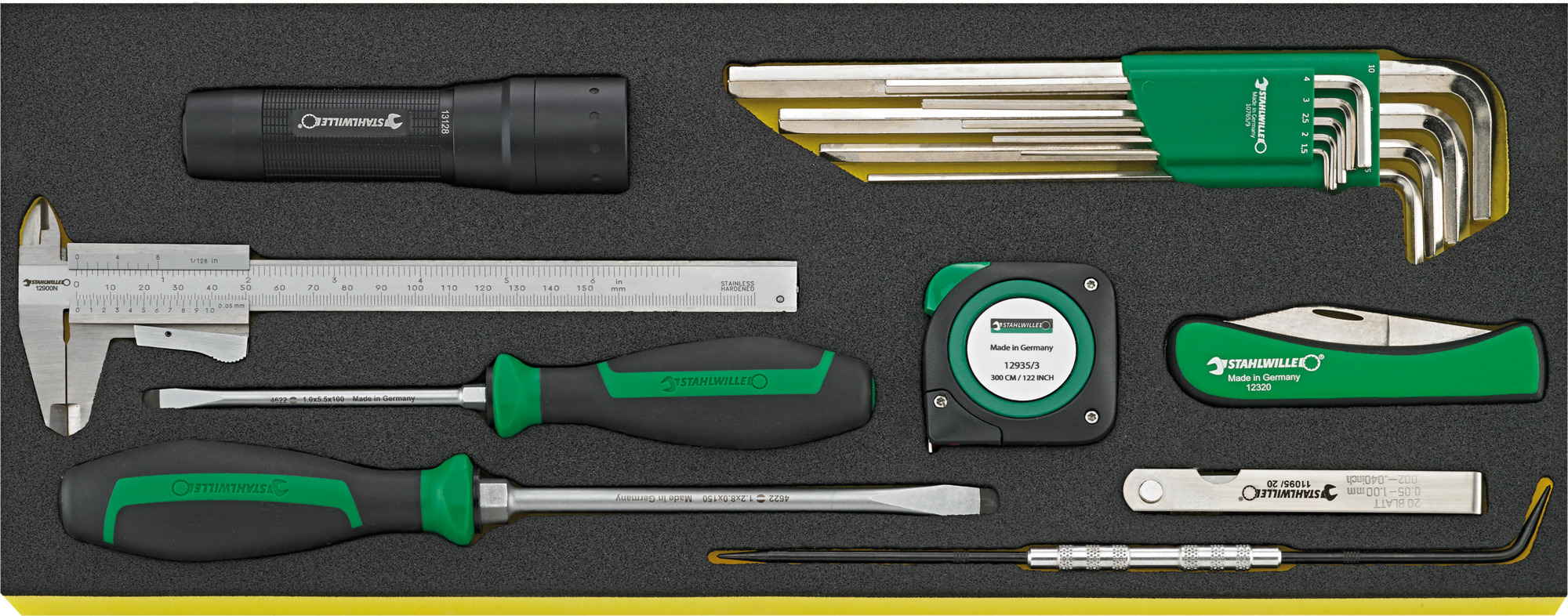

      Contents insert TCS 13214 DIV10767/9 | 96830806:

      2 slotted screwdrivers No. 4622: 1.0 x 5.5 x 100 mm; 1.2 x 8.0 x 150 mm

      1 Precision feeler gauge No. 11095/20: 0.05-1 mm

      1 Cable knife No. 12320

      1 Roller tape measure No. 12935/3: L.3 m

      1 Scriber No. 12321: L.250 mm

      1 Caliper No. 12900: 150 mm/6''

      1 LED torch No. 13218: 320 lumen

      1 Offset screwdriver set No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

      Contents insert TCS3 LH LR WK M. WKZ.N | 96831794:

      1 Bit fine-tooth ratchet 1/4" No. 415SGB N: L.117 mm

      3 PHILLIPS® screwdrivers No. 4632: PH1; PH2; PH3

      1 Locksmith's hammer No. 10961: 500 g

      1 Nylon hammer No. 10956N: D.35 mm

      1 Bit set No. 1208: 1 Quick change holder 1/4" | L.25mm: SL4.5;6.5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-piece

      1 Hook tool No. 13001: 45° angled L.155 mm

    Downloads

    Produktdatenblatt: STAHLWILLE_98814803_13214_en.pdf
    PDF | 2.01 MB
