97830821 Supplementary set VW

stahlwille

1120/1 TCS

Artikel-Nr. 97830821|EAN 4018754255580

    Produkt-Varianten

    Product no.ModelWeight (g)Number of tools
    978308211120/1 TCS6600 g66 pcs.

    Technologien und Leistungsmerkmale

    Tool Control System

    The intelligent modular inlay system protects and organises the tools in tool boxes, tool trolleys and workbenches. Two-colour foam inlays make checking the completeness of the tools quick and easy.

    Eigenschaften

      • safely integrated in the modular Tool Control System (TCS)

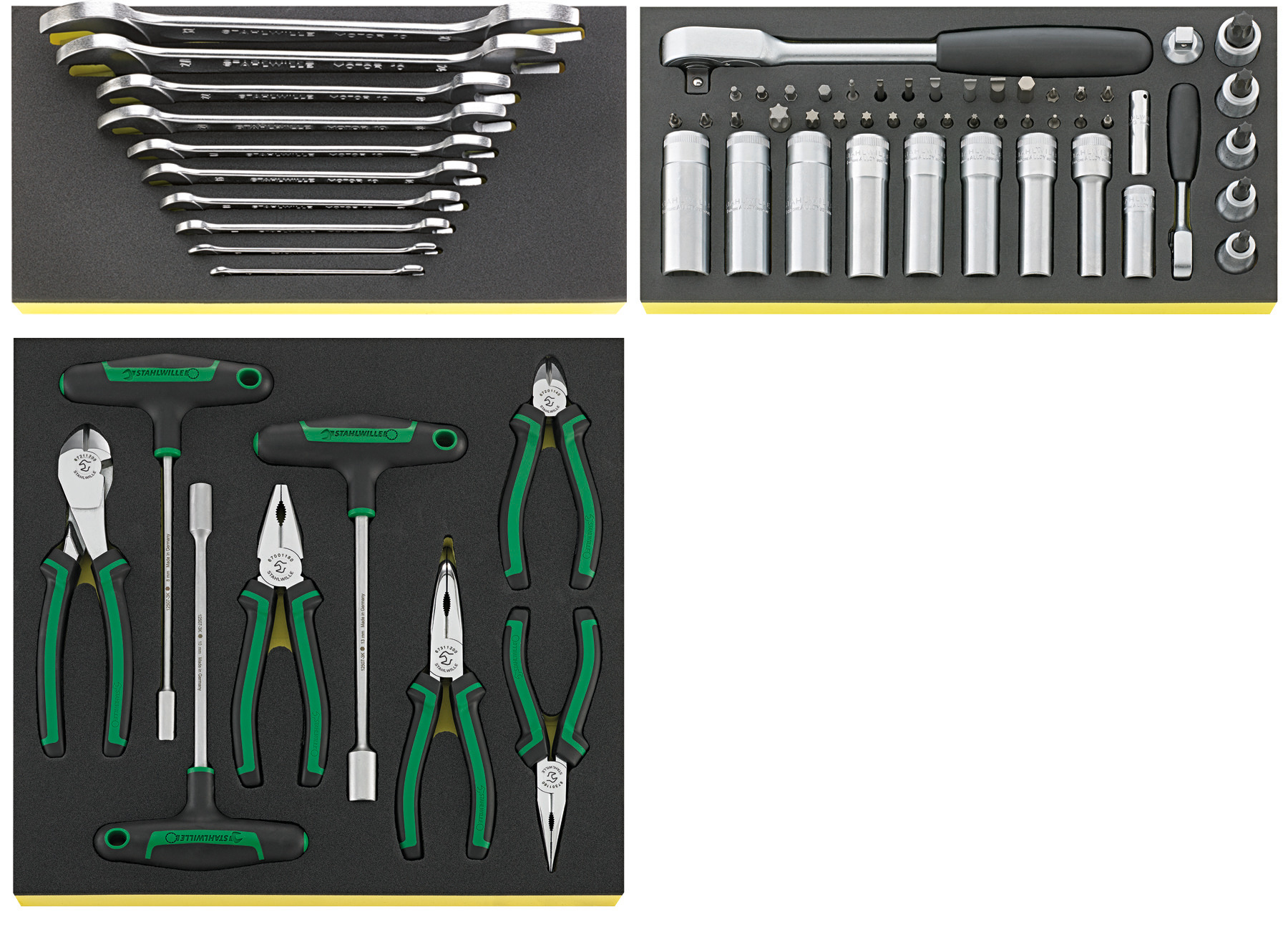

      Contains 66-pieces:

      96831601

      3 nut spinners No. 12507: 8; 10; 13 mm

      1 combination pliers No. 6700: L. 180 mm

      1 telephone pliers No. 6730: L. 140 mm

      1 telephone pliers No. 6731: L. 200 mm

      1 side cutters No. 6720: L. 140 mm

      1 heavy-duty side cutters No. 6721: L. 200 mm


      96831602

      10 double open-ended spanners No. 10: 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22; 24 x 27; 30 x 32 mm

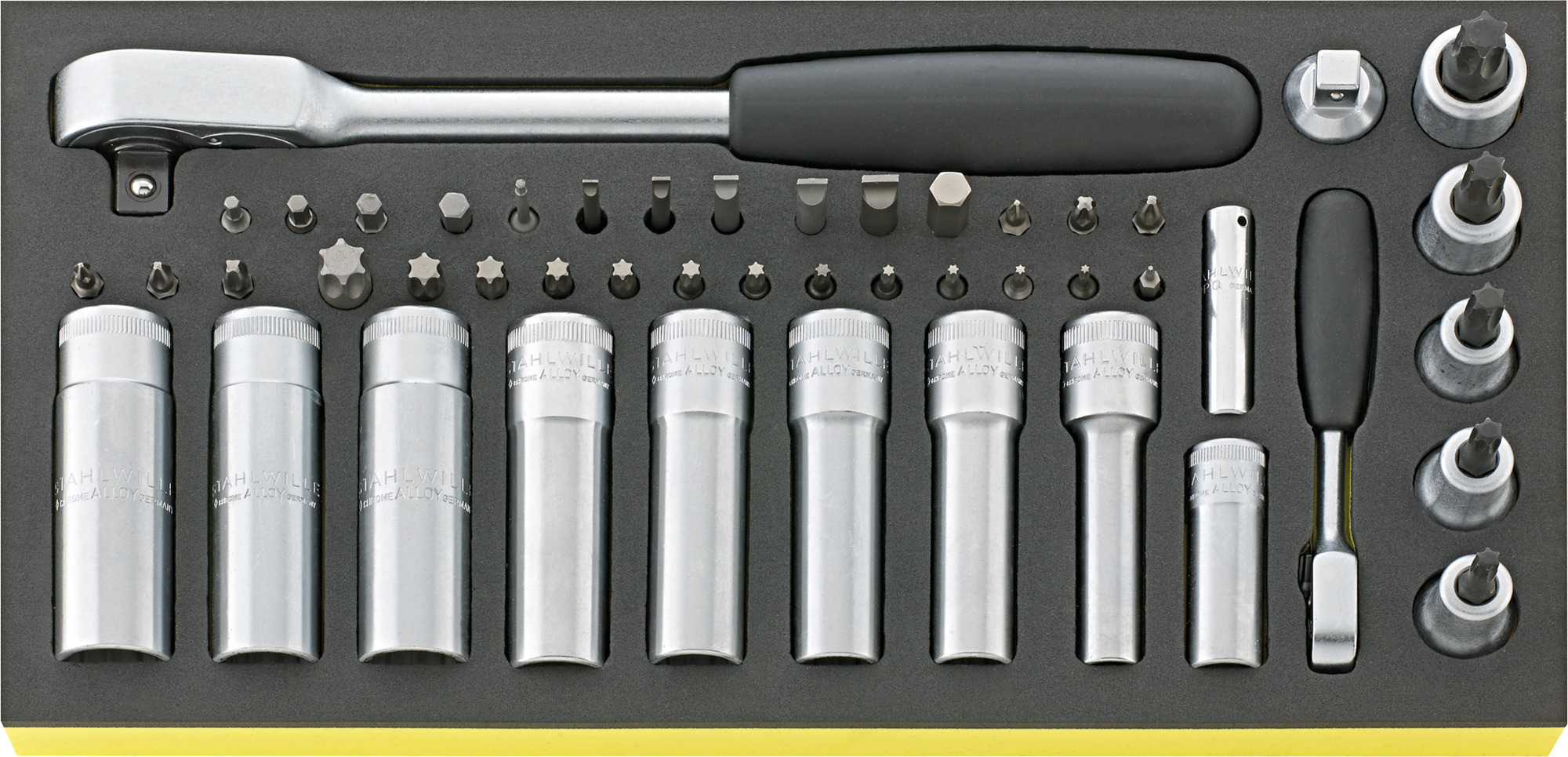

      96831607

      1 socket long, with bi-hex 1/4" No. 40DL: 8 mm

      1 socket long, with bi-hex 3/8" No. 46: 12 mm

      8 sockets long, with bi-hex 3/8" No. 51: 10; 13; 14; 15; 16; 17; 18; 19 mm

      5 screwdriver sockets TORX® No. 54TX: T30; T40; T45; T50; T55

      3 bits PHILLIPS® No. PH 1221-1223 : PH1; PH2; PH3

      3 bits POZIDRIV® No. PZ 1221-1223: PZ1; PZ2; PZ3

      5 bits slotted No. 1162; 1164; 1168; 1166; 1166/1: 0.6 x 3.5; 0.8 x 4; 1.6 x 8; 1 x 5.5; 1.2 x 6.5 mm

      1 bit slotted No. 1299: 2 mm

      5 bits hex No. 1300-1304: 3; 4; 5; 6; 8 mm

      13 bits TORX® No. 1410-1421; 1435: T6; T7; T8; T9; T10; T15; T20; T25; T27; T30; T40; T45; T55

      1 bit ratchet 1/4" No. 415B-2K: L. 117 mm

      1 square drive adaptor No. 513: 1/2 to 3/8"

      1 ratchet 1/2" No. 512-2K: L. 265.5 mm

    Downloads

    Produktdatenblatt: STAHLWILLE_97830821_TCS-1120-1-VW_en.pdf
    PDF | 7.08 MB
    In unserem Kundenportal bieten wir weitere Informationen und Downloads.
