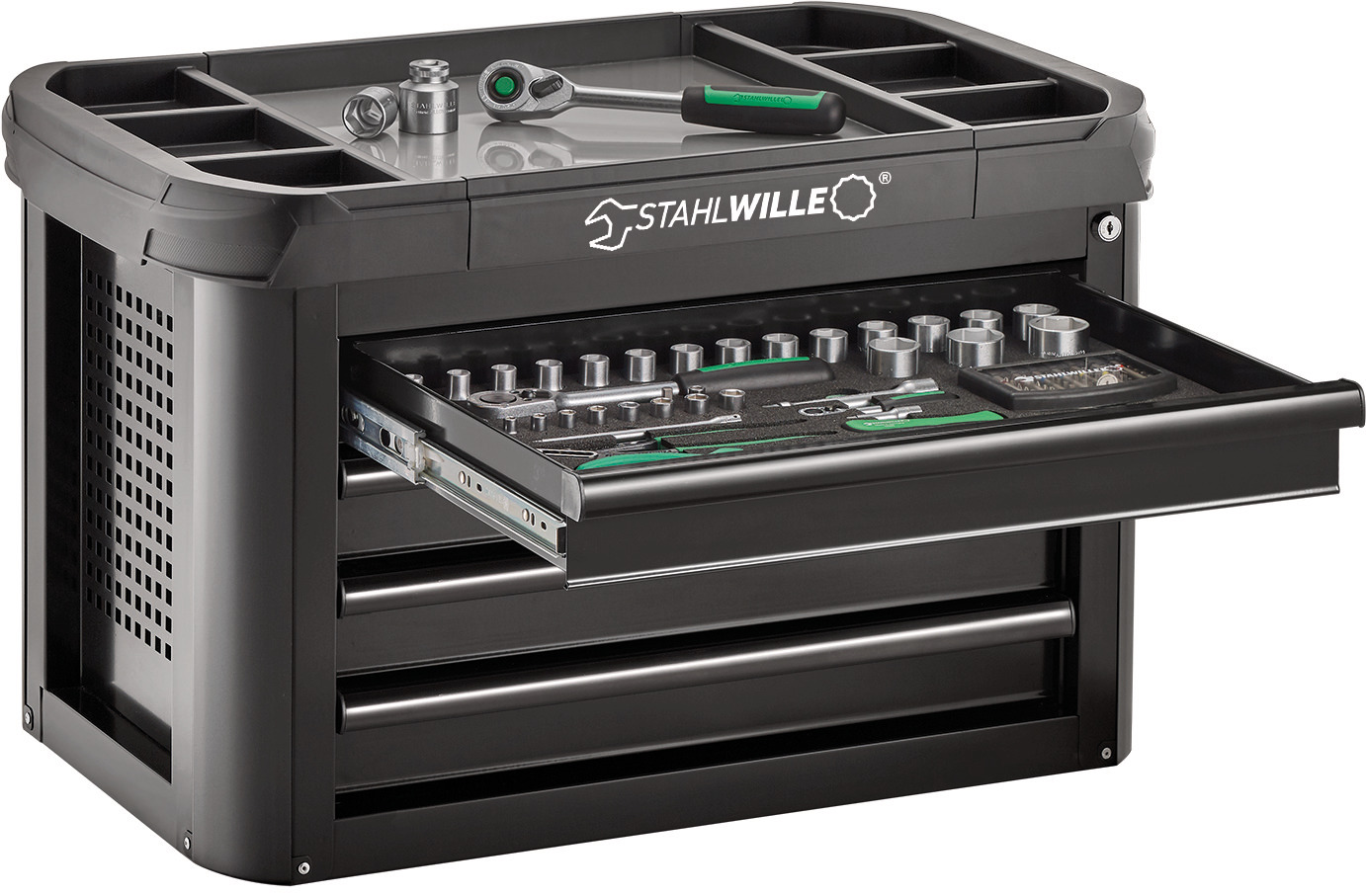

93 TOP BOX

Artikel-Nr. 81200157|EAN 4018754334414
  • Modular add-on for tool trolley No. TTS 93/6 – space for tools in four additional drawers.

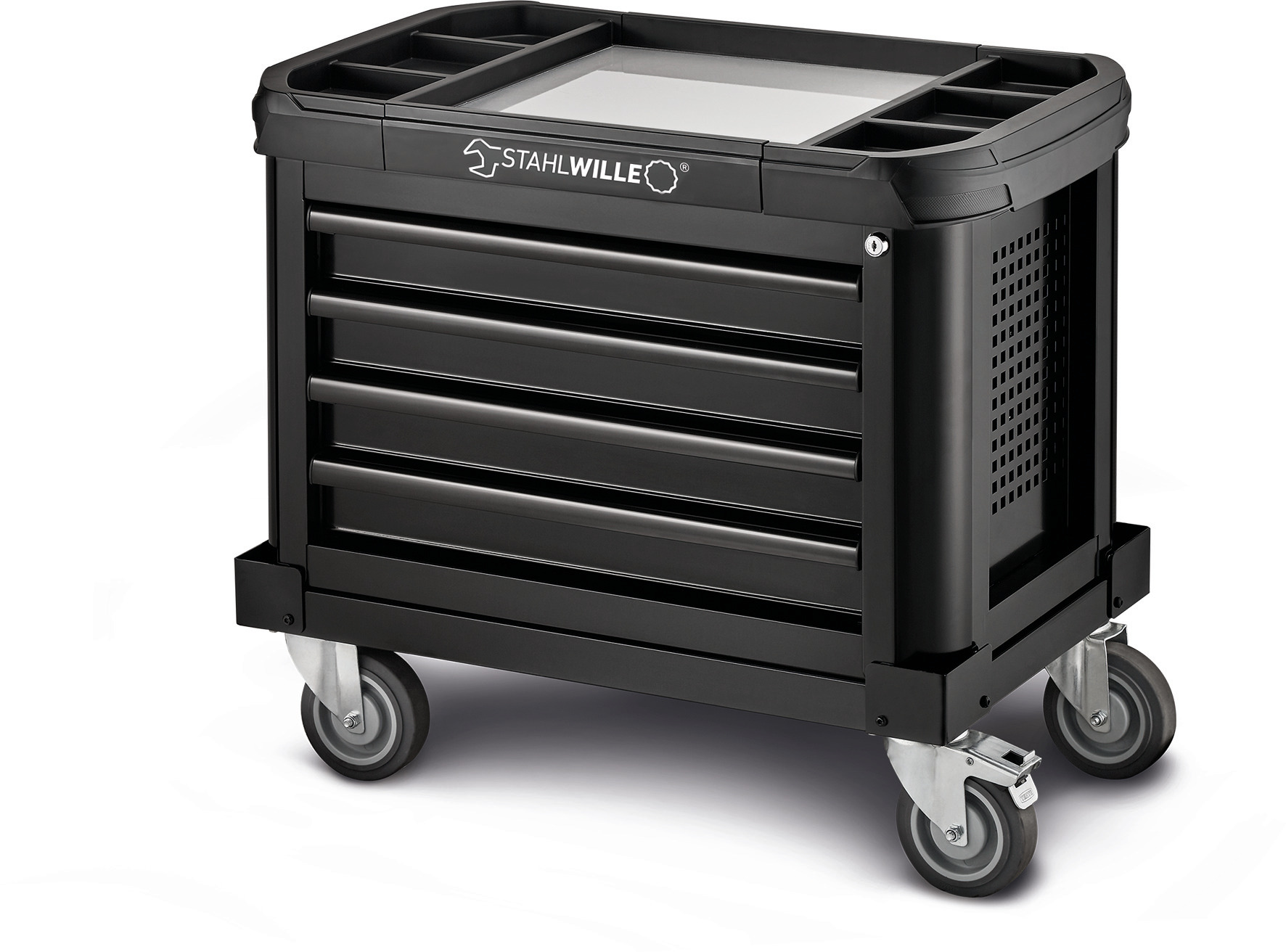

  • The optional frame No. 93 TOP BOX CADDY makes the toolbox mobile.
  • 6 seitliche Behälter sorgen für die ordentliche Aufbewahrung von Kleinteilen und Zubehör.
  • Mit praktischen Seitengriffen ist die Werkzeugtruhe leicht zu transportieren - optimal für Einsätze in und außerhalb der Werkstatt.
  • Das optionale Fahrgestell Nr. 93 TOP BOX CADDY macht die Werkzeugtruhe mobil.

Produkt-Varianten

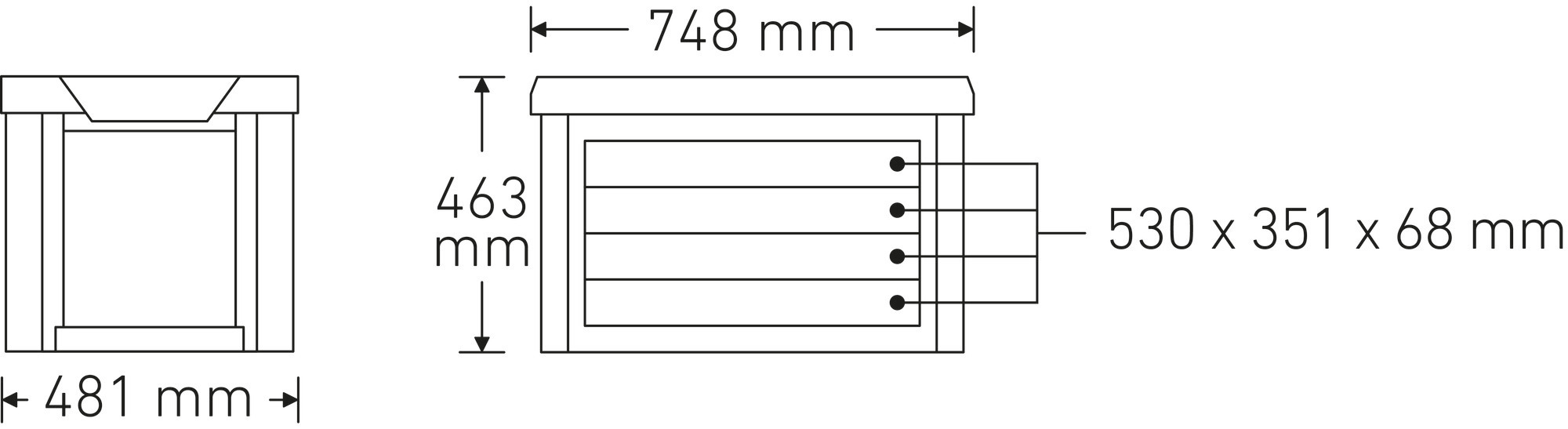

Art. no.ModelLength mm (L)Width mm (b)Height mm (h)Number of drawersInternal drawer dimensions mmDrawer load capacityColourfor model
8120015793 TOP BOX481 mm748 mm463 mm4530 x 351 x 68 mm (4x)30 kg Black, RAL 900593/6

Technologien und Leistungsmerkmale

Tool Control System

The intelligent modular inlay system protects and organises the tools in tool boxes, tool trolleys and workbenches. Two-colour foam inlays make checking the completeness of the tools quick and easy.

Eigenschaften

    Two-stage safety concept:

    1. Central locking through cylinder lock with hinged key

    2. Tilt protection – it is not possible to pull out several drawers at the same time

    • Powder coated body and drawers (black, RAL 9005)
    • 4 easily removable drawers with full extension (370 mm) and ball bearing cage guide
    • Durable plastic tray made of ABS with compartments for small parts
    • Hole pattern on both sides for hooks No. 8031-8041, e.g., for larger tools
    • Can be fitted with STAHLWILLE standard and TCS inserts

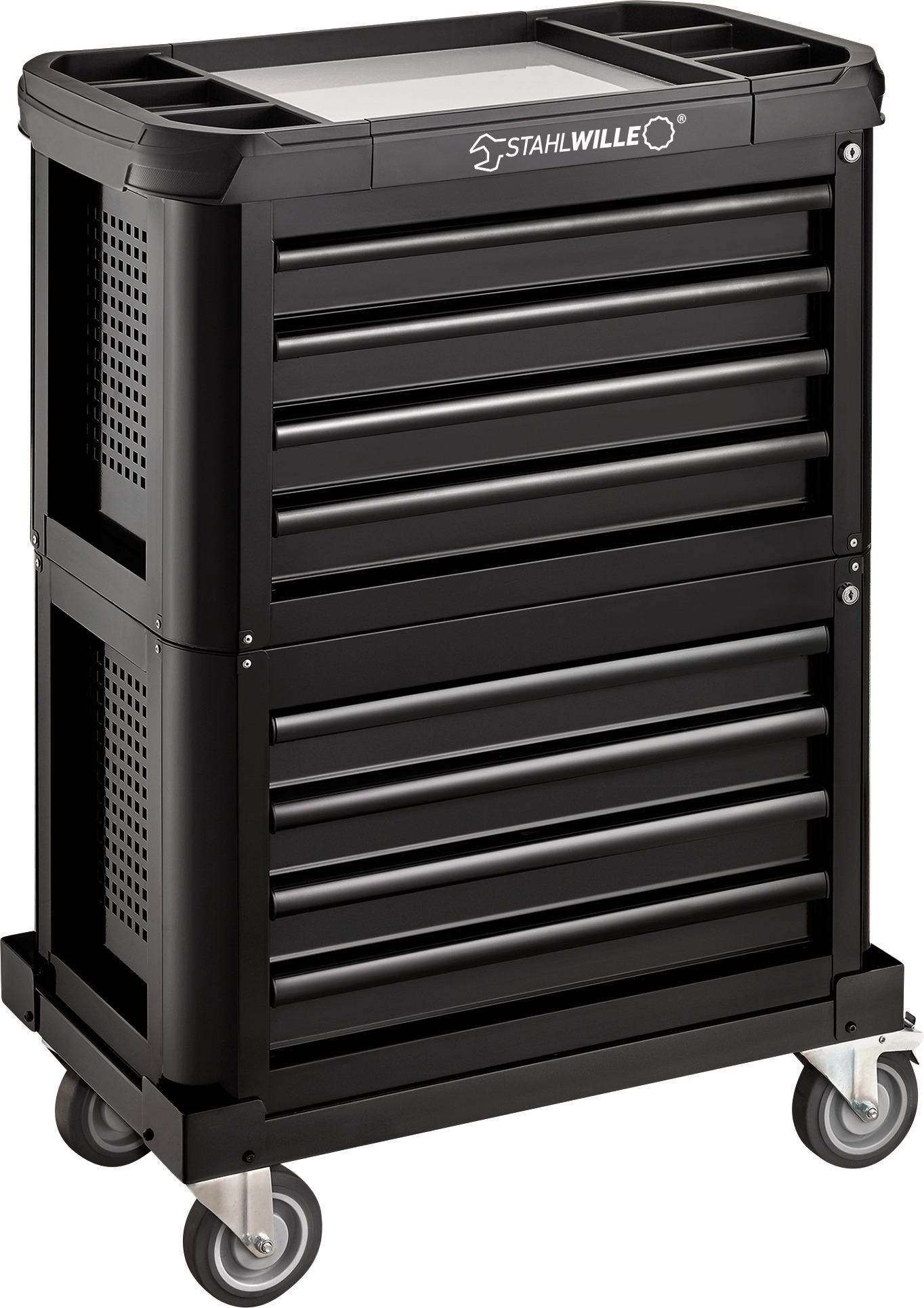

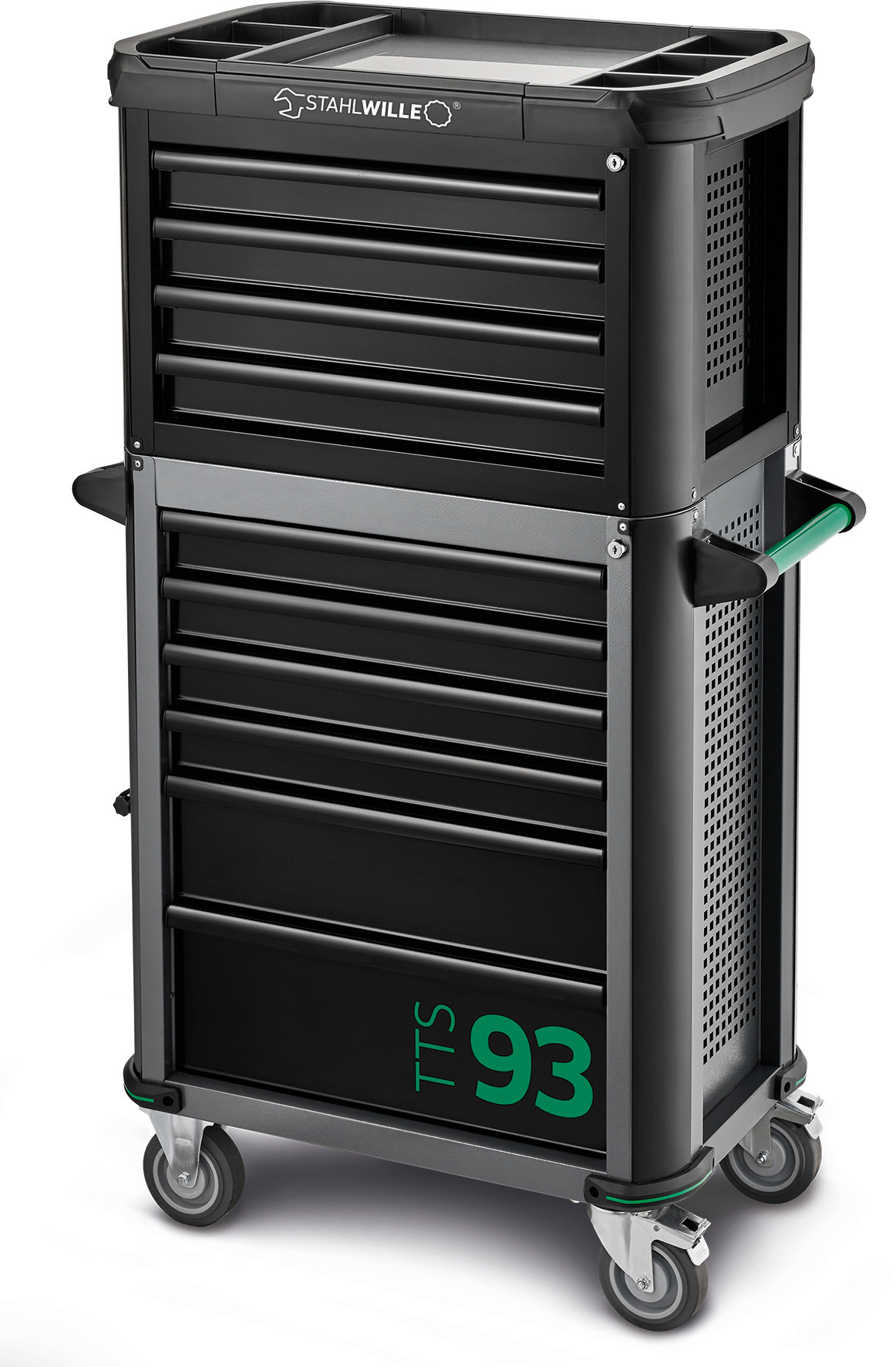

    • Can be combined with the tool trolley No. 93/6
    • Optional chassis No. 93 TOP BOX CADDY

Produkt-Highlights

Flexible, mobile, well thought-out.

Our tool chest is the optimal solution for mobile use or for the workshop. Thanks to the practical side handles, it is easy to transport. With the chassis No. 93 TOP BOX CADDY, it also becomes effortlessly mobile. As an extension to the TTS 93/6 and WB 630 tool trolleys, it offers even more storage space for your tools.

Order made easy.

The integrated compartments for small parts not only ensure a tidy and clear storage area, but also increase their functionality and create an organised environment where everything remains within easy reach.

Maximum safety.

The central locking system with side cylinder lock and folding key protects the tool from unauthorised access. The tilt protection prevents multiple drawers from being pulled out at the same time to avoid the risk of injury or damage.

Optimally organised.

All drawers can be extended up to 100 %. Combining the use of STAHLWILLE standard and TCS inlays, or the variable drawer dividers, ensures a clear overview and convenient access to tools.

More space for organisation.

Hooks, trays, and safety locks for tools, screws and small parts can be attached to the perforated side walls of the TOP BOX as required. This means that everything is always within reach and well-organised.

Downloads

Montageanleitung: stahlwille-ma-top-box-93-web.pdf
PDF | 1.70 MB
Montageanleitung: 91972090-stahlwille-ma-arbeitsplatte-tts93-topbox-de-en.pdf
PDF | 2.48 MB
Flyer: stahlwille-br-neuheiten-gesamt-en-web.pdf
PDF | 3.40 MB
Flyer: stahlwille-br-werkzeugaufbewahrung-en-web.pdf
PDF | 10.71 MB
Produktdatenblatt: STAHLWILLE_81200157_93 TOP BOX_en.pdf
PDF | 2.94 MB
