Puller
Puller
11055
Artikel-Nr. 71190013|EAN 4018754173112

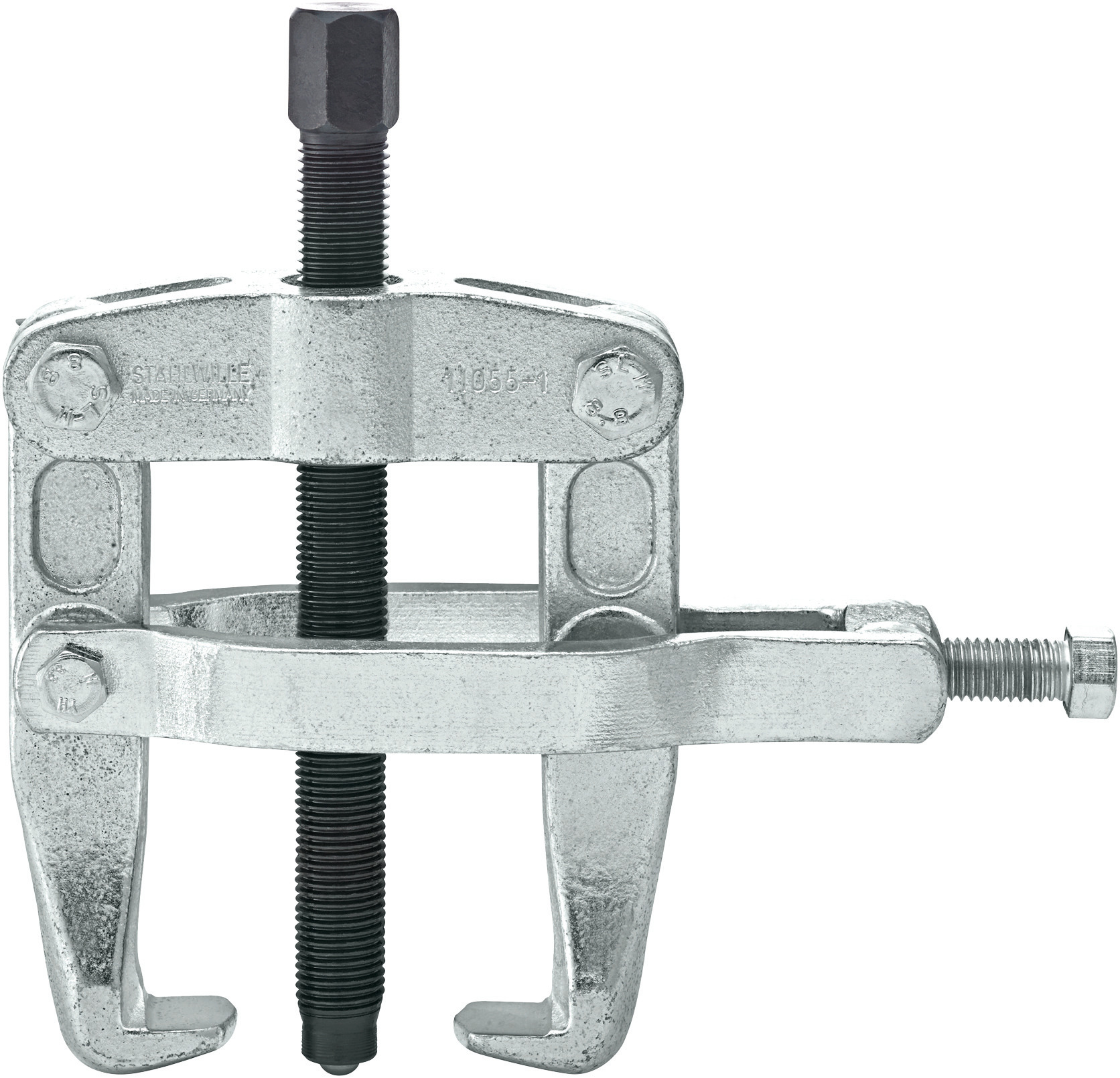

- Two-armed, with swivel hooks and lateral tension pins, galvanised
Produkt-Varianten
| Product no. | Size | Number of hooks | max. load | max. torque | Clamping depth (h) mm | Span mm (w) | Weight | |
|---|---|---|---|---|---|---|---|---|
| 71190013 | 3 | 2 | 8,0 t | 150 N·m | 150 mm | 30-150 mm | 2907 g |
Eigenschaften
- two-armed, with swivelling extractor hooks and lateral clamp clip, zinc plated
- when the clamp clip is tightened, the claws of the extractor hooks locate under the part to be extracted and lever it free as force is applied before extraction begins
- for extracting gearwheels, ball bearings, pulleys, drop arms and similar parts from shafts or axles
- the clamp clip presses the extractor hooks firmly against the part being extracted
Produkt-Highlights
Adapted access geometry.
Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
