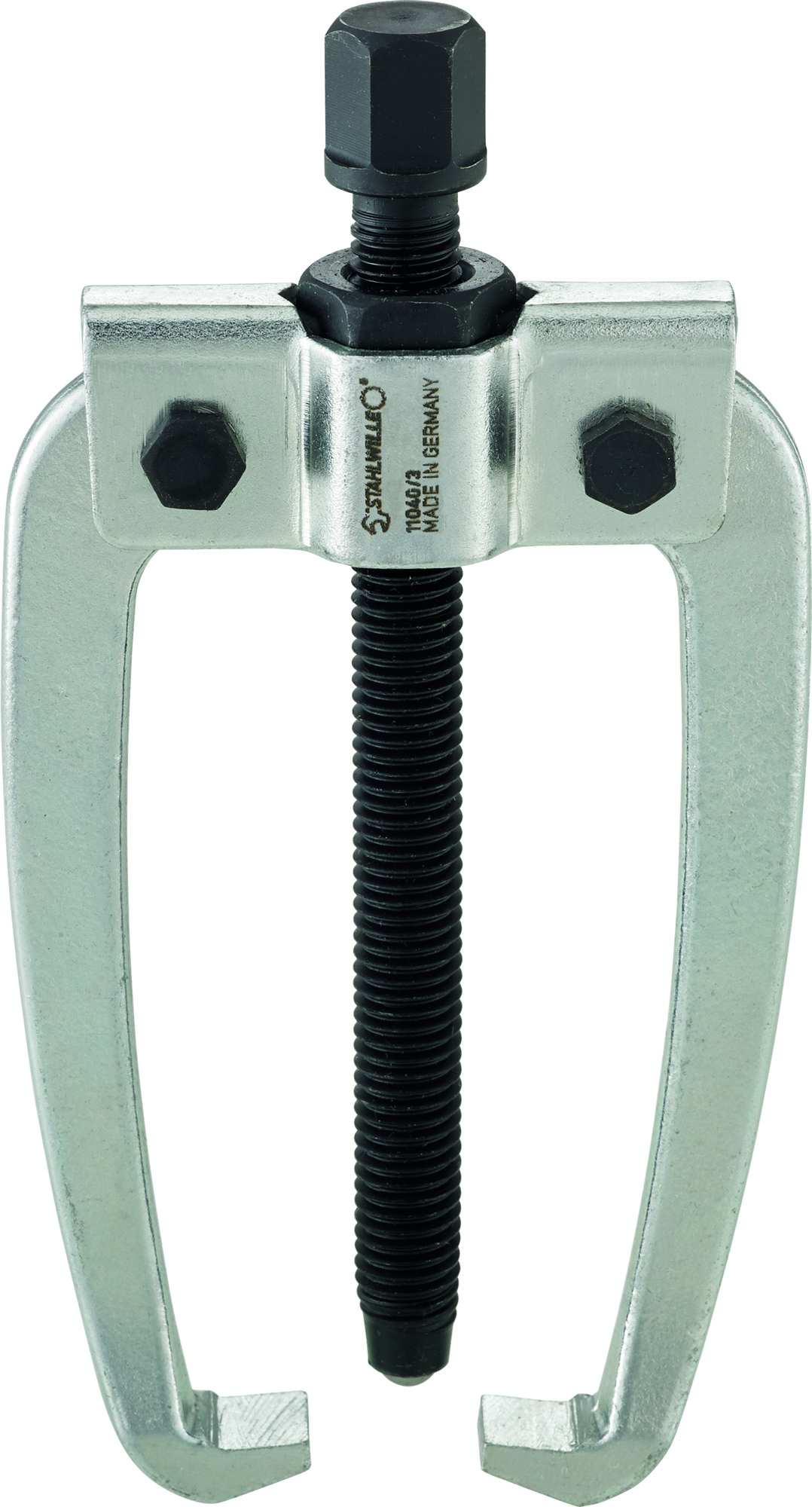

Battery terminal pullers
Battery terminal pullers
11040
Artikel-Nr. 71120013|EAN 4018754172832
- Two-armed, with self-centring quick-action clamping and automatic gripping adjustment, galvanised
Produkt-Varianten
| Product no. | Size | External hex drive (mm) | Number of hooks | max. load | max. torque | Clamping depth (h) mm | Span mm (w) | Spindle thread size | Hook base width mm (b) | Hook base depth mm (c) | Thickness of hook base tip mm (a) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71120013 | 3 | 12 mm | 2 | 3,5 t | 45 N·m | 80 mm | 10-100 mm | M10 x 110 mm | 11 mm | 11 mm | 2,5 mm | 315 g |
Eigenschaften
- two-armed, with a self-centring quick-action clamp and automatic feed, zinc plated
- for extracting battery terminal clamps, smaller ball bearings, pulleys etc.

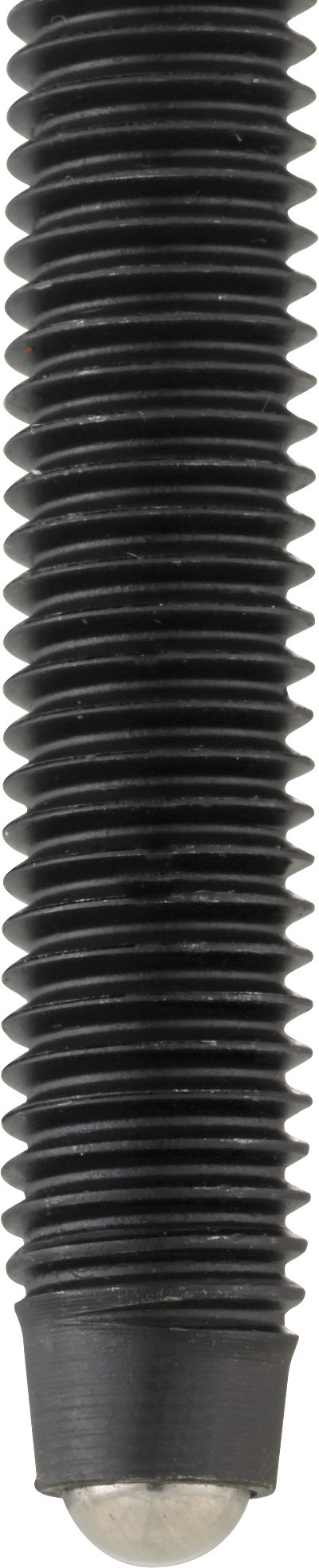

- as force is applied through the spindle, the extractor hooks automatically apply increasing force to the part being extracted
- particularly suited to car electrics, compressed air system repairs and similar applications due to the compact design and small hooks
Produkt-Highlights
Adapted access geometry.

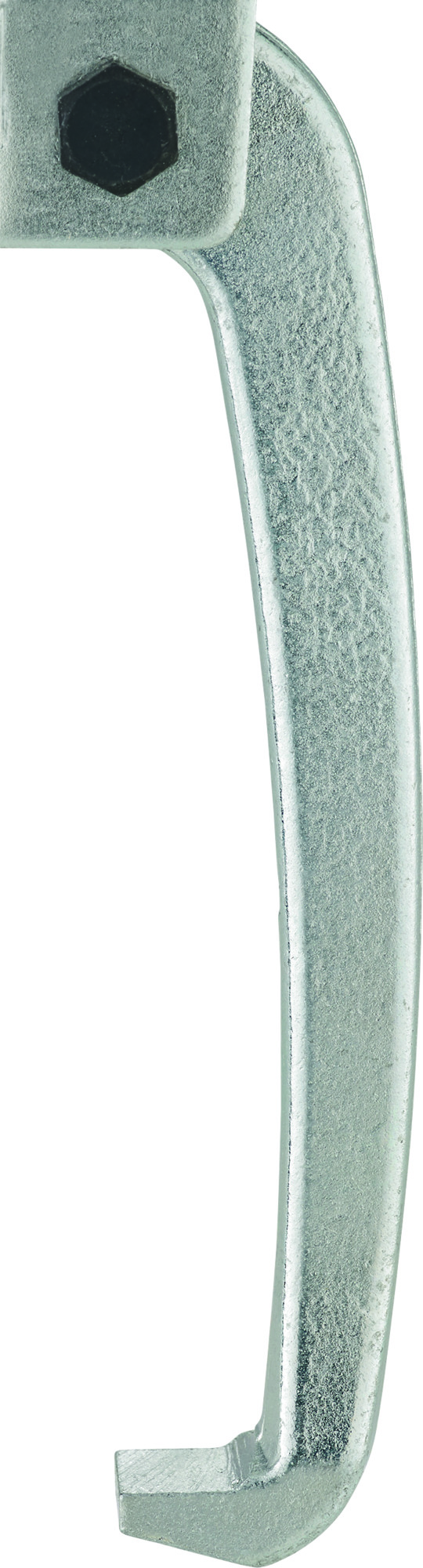

Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
