Standard puller
Standard puller
11051

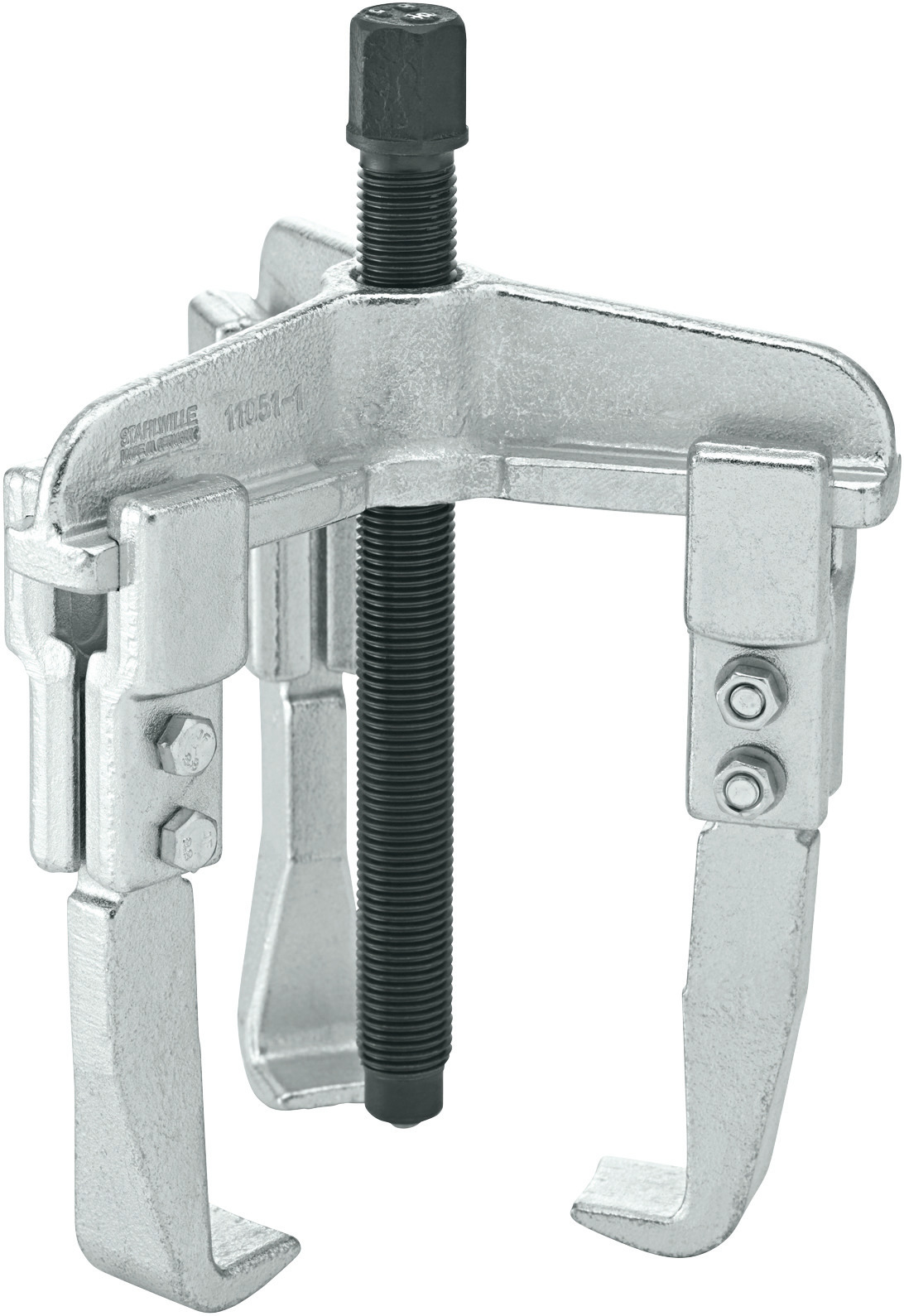

- Three-armed, with sliding, always parallel extractor hooks, galvanised
- Gleichmäßige Lastverteilung auf 3 Abzugshaken gewährleistet einen sicheren Halt und zentrisches Abziehen.
- Umsteckbare Abzugshaken ermöglichen einen universellen Einsatz als Außen- oder Innenabzieher.
- Nitrierte Oberfläche der Druckspindel gewährleistet eine ausgezeichnete Gleitfähigkeit und benötigt keine zusätzliche Ölung.
Produkt-Varianten
| Product no. | Size | Number of hooks | max. load | Clamping depth (h) mm | Internal span max. mm (w2) | Internal span min. mm | Spindle thread size | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 71080011 | 1 | 3 | 5,5 t | 100 mm | 80 mm | 25 mm | M14 x 1,5 x 140 mm | 1280 g | |
| 71080014 | 4 | 3 | 7,0 t | 150 mm | 200 mm | 25 mm | G1/2 x 14 x 210 mm | 3690 g | Jetzt entdecken |
Eigenschaften
- three-armed, with sliding permanently parallel extractor hooks, zinc plated
- for extracting gearwheels, ball bearings, pulleys, fan wheels and similar parts from shafts or axles
- for removing ball bearings, bearing outer races and bushes from holes
- hooks can be used as internal or external hooks
Produkt-Highlights
For improved safety.
Designed with practical applications in mind, drop forged, precision machined on the latest machine tools, hardened and tempered: the STAHLWILLE puller range offers numerous products for a wide variety of applications. For example, standard pullers, cell terminal pullers, ejectors, counter stays, ball joint pullers and wheel hub pullers. Made, of course, in Germany as premium quality tools.
Resilient.
Heavy-duty extractor hooks made of oilhardened chrome alloy steel with special-purpose access geometry for use in tight spaces. Radii adapted for shafts and axles.
2vs3 - Two- or three-legged pullers?
A three-legged puller is generally preferable to a two-legged one provided there is sufficient space because it distributes the pulling forces more evenly.
More robust.
High flexural strength thanks to legs with accurately calculated profiles and smooth, milled guides.
Reliable.
Excellent running characteristics of the thread itself thanks to high-grade hardening and tempering and the special coatings on the thrust spindles.
Protection against damage.
To prevent damage to shafts, the centre is fitted in a freely-swivelling mount.
