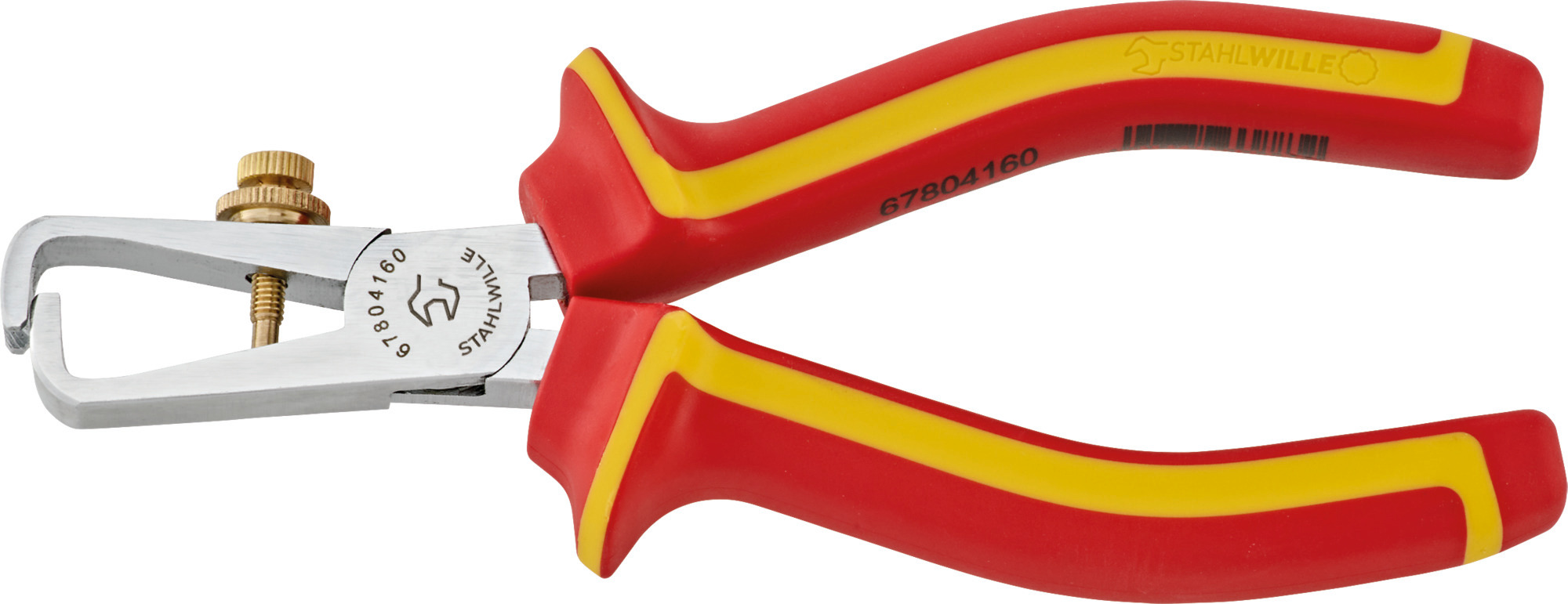

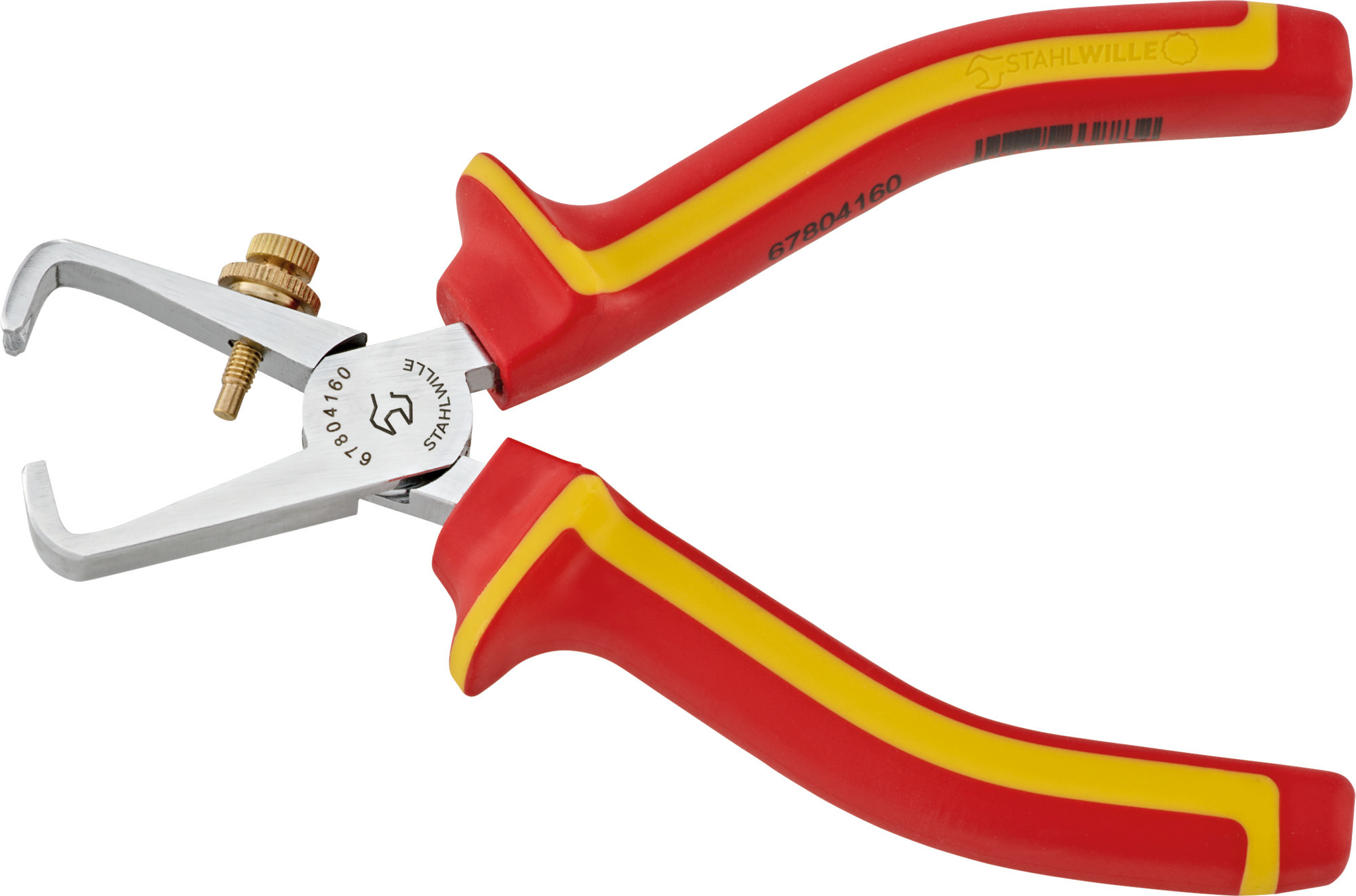

VDE wire stripper
VDE wire stripper
6780 VDE
Artikel-Nr. 67804160|EAN 4018754338832
- Real craftsmanship leaves nothing to chance – the perfect symbiosis of professional skills and excellent tools unleashes exciting results. ALARM has been committed to this principle since 1867
Produkt-Varianten

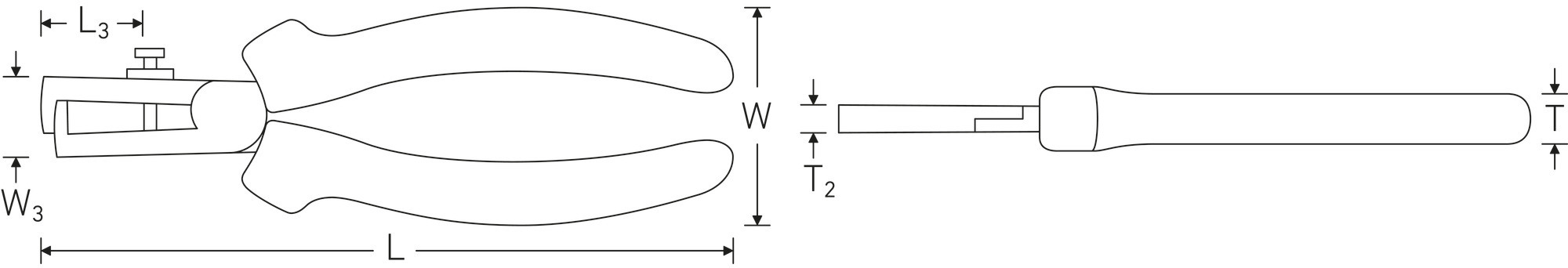

| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Head | Handles | Head width mm (a) | Head thickness mm (T2) | Jaw length mm (L3) | Diameter max. (mm²) | Diameter min. (mm²) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67804160 | 160 mm | 58 mm | 29 mm | Chrome-plated | 2-component handles | 18 mm | 9.5 mm | 26 mm | 10 mm² | 5 mm² | 190 g |
Eigenschaften
- mechanical wire stripper with adjusting screw and opening spring for easy removal of insulating sheaths from electrical conductors such as e.g. wires or stranded wires for work in the electrical field up to 1000V AC
- for solid and stranded as well as fine-stranded conductors
- die-forged from heat-treated tool steel
- cutting edges additionally inductively hardened to approx. 44 HRC
- head chrome-plated
- STAHLWILLE 2-component plastic handles
- IEC 60900
