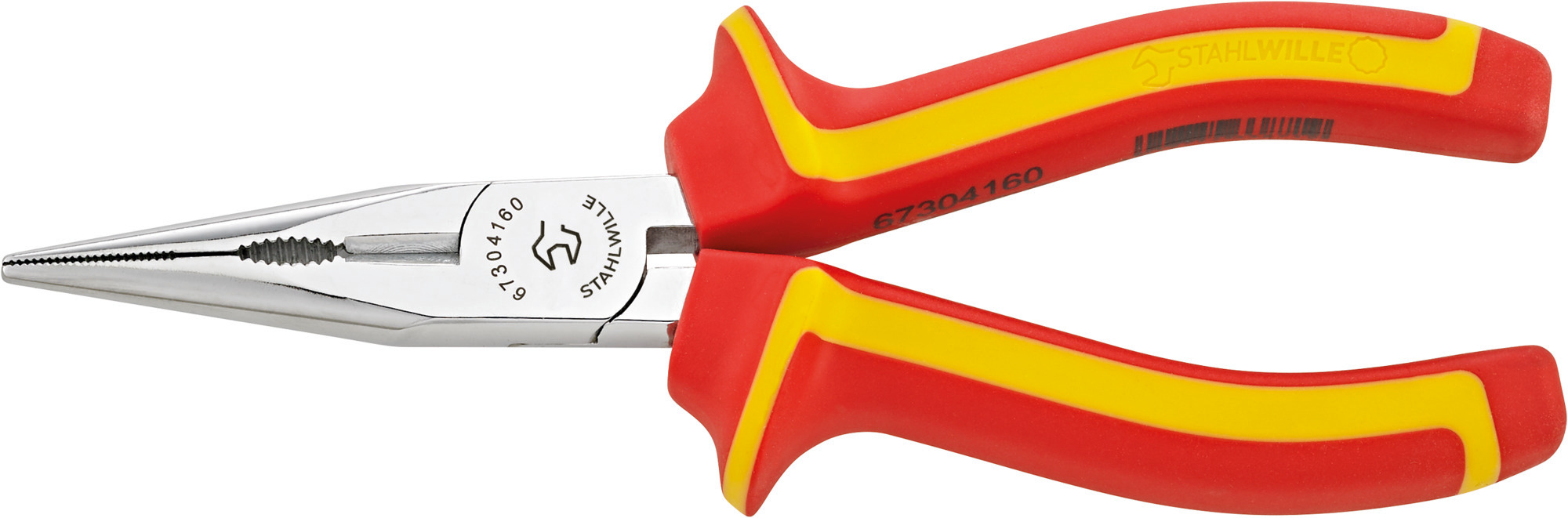

VDE telephone pliers
VDE telephone pliers
6730 VDE
Artikel-Nr. 67304160|EAN 4018754338719
Produkt-Varianten

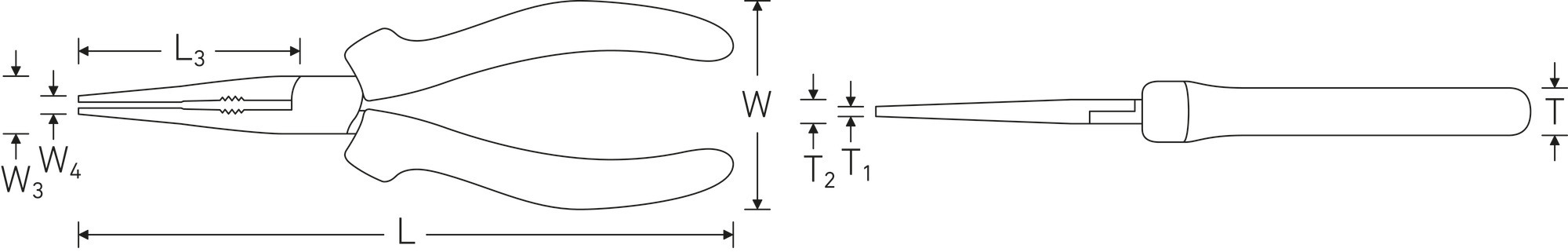

| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Head | Handles | Head width mm (a) | Head thickness mm (T2) | Jaw length mm (L3) | Tip width mm (f) | Tykkelse på midten mm (T1) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67304160 | 160 mm | 54 mm | 28 mm | Chrome-plated | 2-component handles | 20 mm | 9.5 mm | 47 mm | 3.5 mm | 3.5 mm | 160 g | |
| 67304200 | 200 mm | 58 mm | 29 mm | Chrome-plated | 2-component handles | 20 mm | 11 mm | 70 mm | 5 mm | 4 mm | 200 g | Jetzt entdecken |
Eigenschaften
- Flat round-nose pliers in straight form (form A) with cutting edge and burner hole for work in the electrical field up to 1000 V AC
- For gripping, holding and cutting cables as well as soft and hard wires
- burner hole for holding nuts and studs
- flat round, round, tapered jaws with serrated gripping surfaces
- die-forged from hardened and tempered tool steel
- cutting edges additionally induction-hardened to approx. 64 HRC
- head chrome-plated
- STAHLWILLE 2-component plastic handles
- DIN ISO 5745
- IEC 60900
