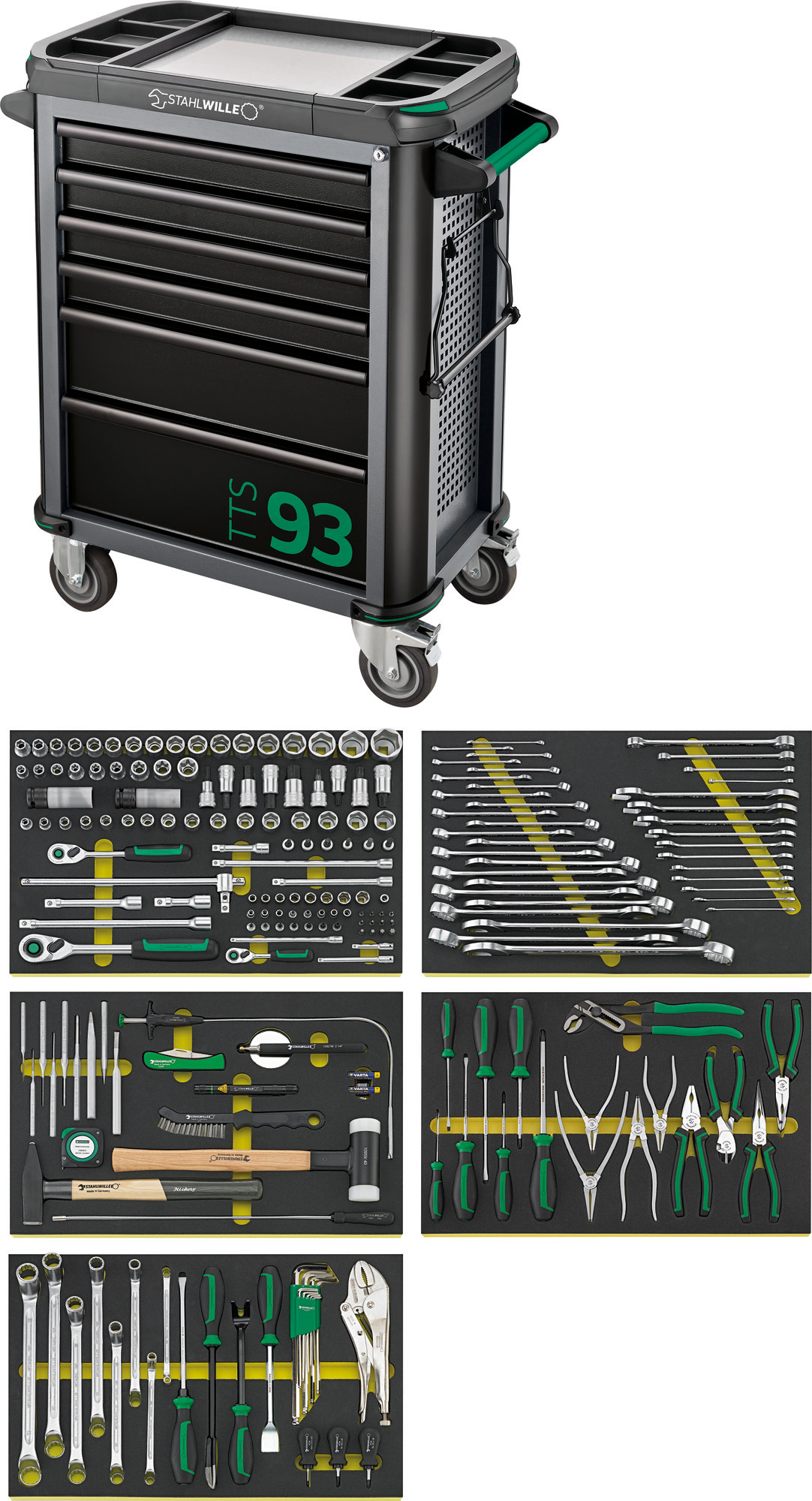

QuickRelease tool set with tool trolley
QuickRelease tool set with tool trolley
93/206QR
- Heavy-duty, robust tool trolley with 6 fully extendable drawers and central locking, including 206-piece tool set.
- Extensive automotive range with fine-tooth ratchets, sockets up to 32 mm, measuring and testing tools, screwdrivers, pliers and much more
- Patented QuickRelease locking system secures all components, from the ratchet to the extension to the socket.
- The heavy-duty tool trolley 93/6 has a static load capacity of up to 500 kg - the lower drawer has a load capacity of up to 45 kg.
- The tools are securely integrated in durable, chemical-resistant TCS inlays with precise recesses and coloured signal areas.
Produkt-Varianten
| Product no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Number of drawers | Colour | Weight (g) | Number of tools | |
|---|---|---|---|---|---|---|---|---|---|
| 98830203 | 93/206QR | 481 mm | 877 mm | 1000 mm | 6 | anthracite, RAL 7016 | 100000 g | 207 pcs. |
Technologien und Leistungsmerkmale
Modular Inlay System
Tool Control System
QuickRelease
High Performance Quality (HPQ®)
Eigenschaften
- central locking with a cylinder lock and folding key
- tilt protection - it is not possible to pull out several drawers at the same time
- 2 handles, all-round impact protection
- durable plastic tray made of ABS with compartments for small parts
- oil and acid-resistant wheels (Ø 125 mm) with bearings protected from the ingress of dirt and fibres, and 2 parking brakes
- perforation on both sides for hooks No. 8031-8041, e.g., for larger tools
- 6 easily removable drawers (black, RAL 9005) with full extension runners (370 mm) and ball bearing cage guide
- with paper roll holder
- particularly suitable for the automotive sector
- safely integrated in the modular Tool Control System (TCS)
Key features of the tool trolley
two-stage safety concept:
1 tool trolley, anthracite No. 93/6 A: 6 drawers
Contains 207-pieces:

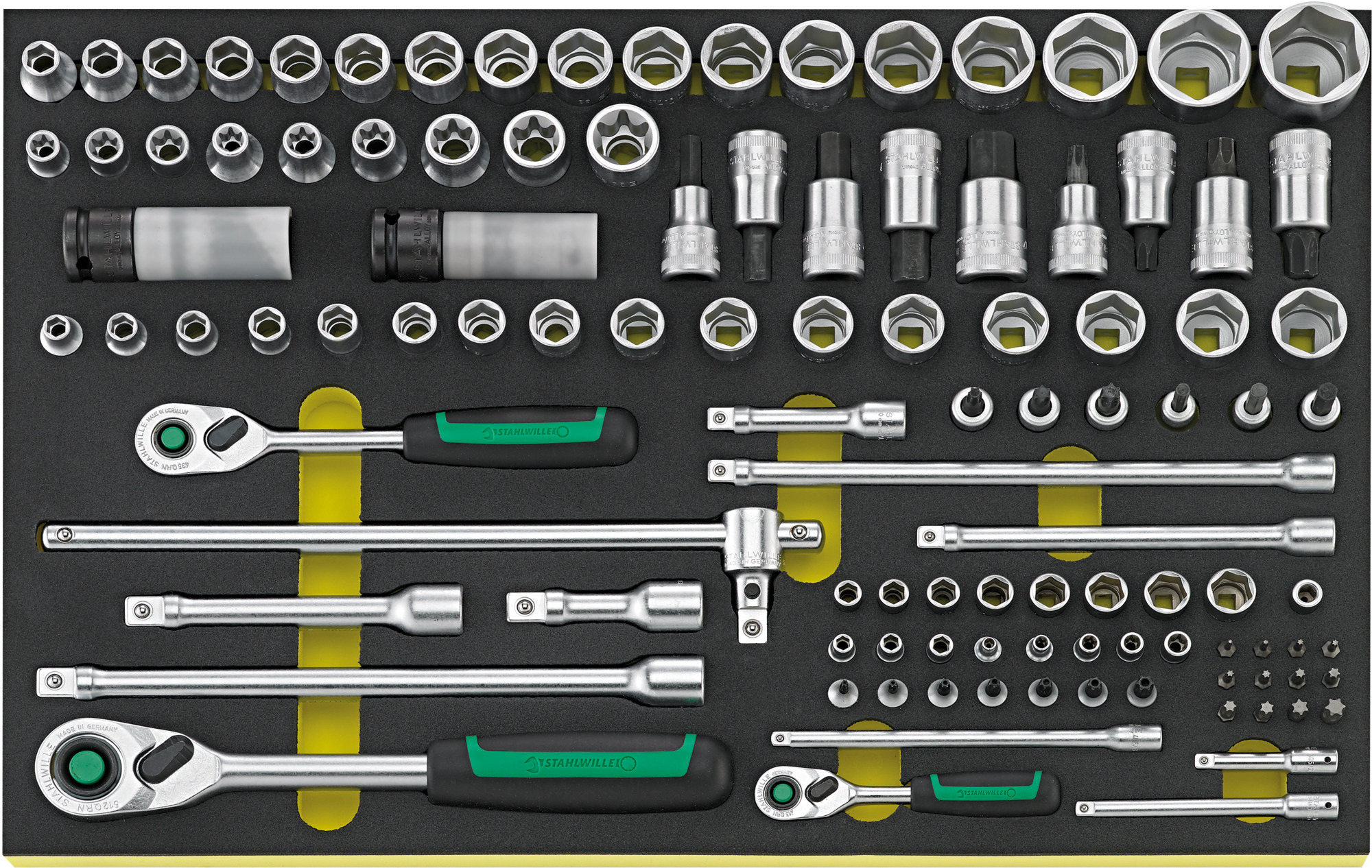

96830283
11 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
5 sockets TORX® 1/4" No. 40TX: E4; E5; E6; E7; E8
7 screwdriver sockets TORX®, with drilled hole 1/4" No. 44KTXB: T10; T15; T20; T25; T27; T30; T40
3 extensions 1/4" No. 405: L. 54; 100; 150 mm
1 bit holder 1/4" No. 412: L. 25 mm
12 bits TORX® 1/4" No. 1410-1421: T6; T7; T8; T9; T10; T15; T20; T25; T27; T30; T40; T45
16 sockets with hex 3/8" No. 456: 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22 mm
3 sockets TORX® 3/8" No. 45TX: E10; E12; E14
3 screwdriver sockets INHEX 3/8" No. 49: 5; 6; 7 mm
3 screwdriver sockets TORX® 3/8" No. 49TX: T30; T40; T45
1 QuickRelease speeder brace 3/8" No. 453QR: L. 408 mm
3 extensions 3/8" No. 427: L. 76; 160; 240 mm
17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm
6 sockets TORX® 1/2" No. 50TX: E11; E12; E14; E18; E20; E24
2 IMPACT wheel nut sockets with hex 1/2" No. 2309IMP K: 17; 19 mm
5 screwdriver sockets INHEX 1/2" No. 54: 8; 10; 12; 14; 17 mm
4 screwdriver sockets TORX® 1/2" No. 54TX: T45; T50; T55; T60
1 QuickRelease T-handle 1/2" No. 506QR: L. 300 mm
3 extensions 1/2" No. 509: L. 75; 130; 255 mm
1 QuickRelease fine-tooth ratchet 1/2" No. 512QR N80: L. 265.5 mm

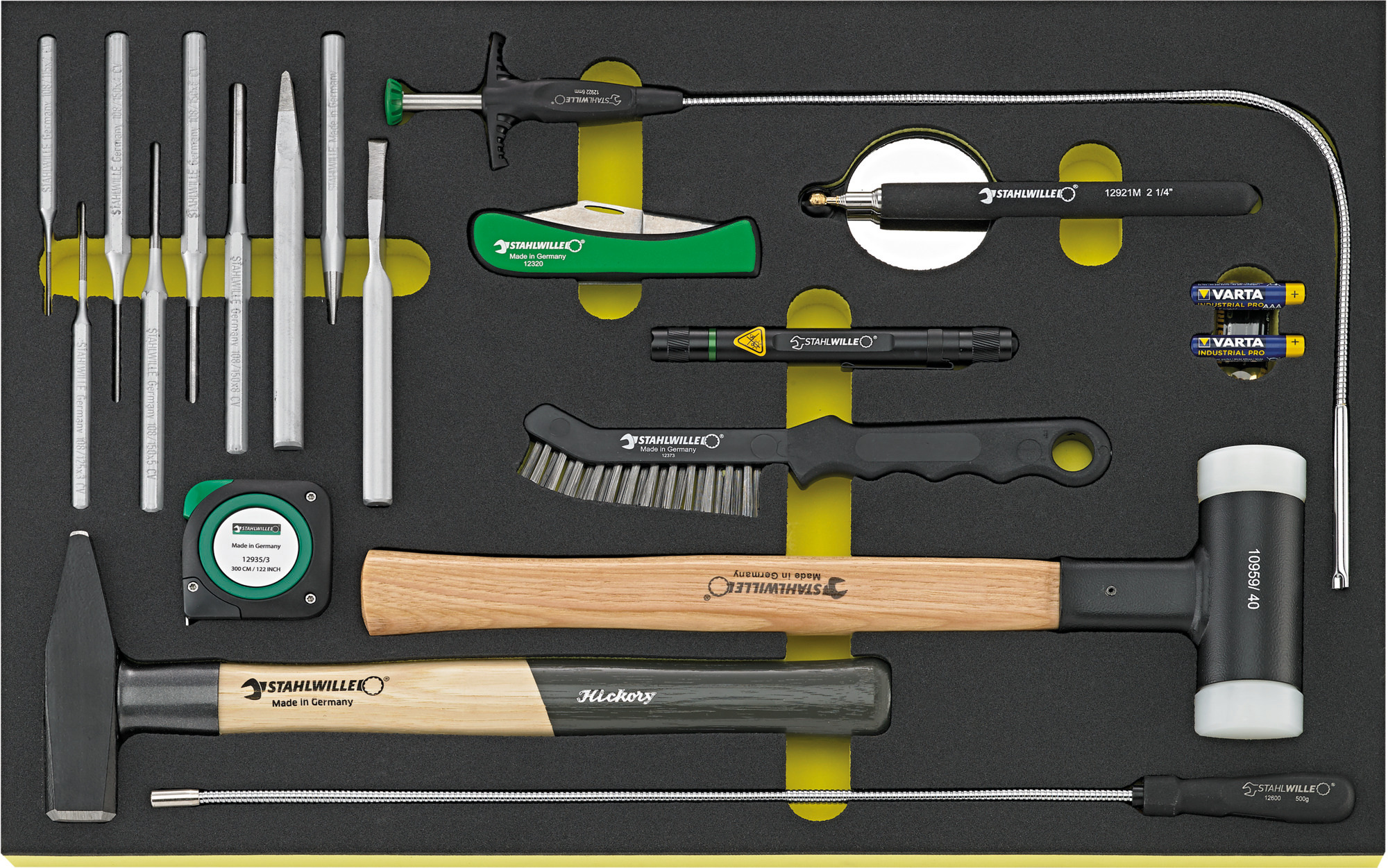

96830284
6 pin punches No. 108: Ø 2, 3, 4, 5, 6, 8 mm
1 flat chisel No. 102: W. 17; L. 150 mm
1 centre punch No. 105: Ø 10 mm
1 cross-cut chisel No. 103: W. 17; L. 150 mm
1 tape measure No. 12935: L. 3 m
1 dead blow hammer No. 10959: Ø 40 mm
1 engineer’s hammer No. 10961: 500g
1 magnetic lifter No. 12600: 500 g
1 cable knife No. 12320: Blade length: 90 mm
1 telescopic mirror No. 12921: L. 178-921 mm
1 torch No. 13132: 130 lm
2 batteries AAA 1.5 V
1 brake caliper brush, steel wire No. 12373: L. 230 mm
1 claw lifter No. 12922: Ø 6 mm, L. 540 mm
96830285
8 double-ended ring spanners No. 20: 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 19; 20 x 22 mm
1 slotted screwdriver with impact cap No. 4622SK: 1.2 x 10 x 175 mm
1 triangular bearing scraper No. 10676: 85 x 12 x 315 mm
1 lever bar No. 12770: L. 260 mm
1 gasket scraper No. 12718: L. 265 mm
1 ball-ended L-Key set hex No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm
1 self-grip wrench No. 6564: L. 250 mm
1 PZ cross-head screwdriver No. 4744: PZ2
1 PH cross-head screwdriver No. 4734: PH2
1 slotted screwdriver No. 4724: 0.6 x 3.5 x 25 mm

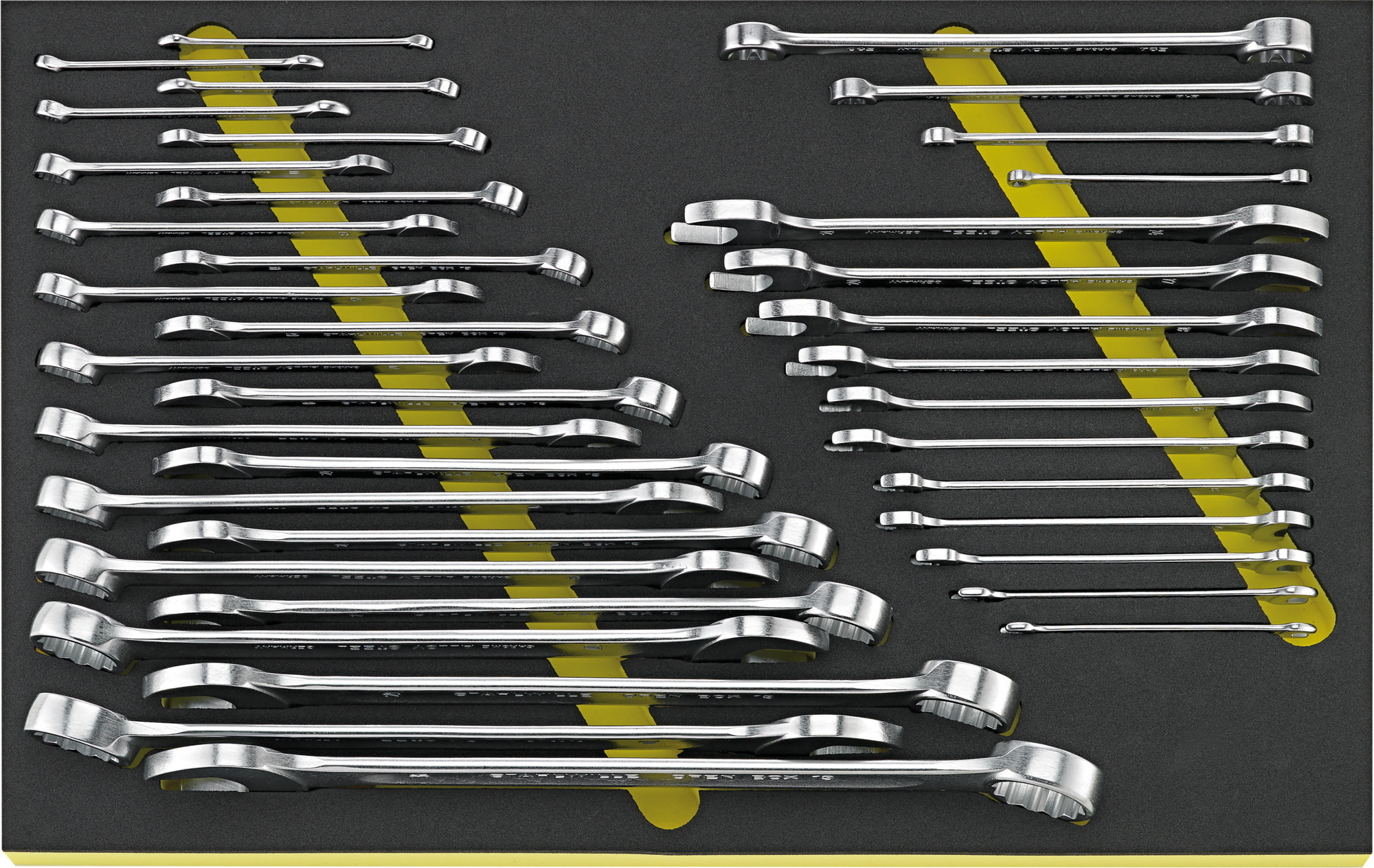

96830286
23 combination spanners No. 13: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 23; 24; 27; 29; 30; 32 mm
11 double open-ended spanners No. 10: 6 x 7; 8 x 9; 10 x 11; 10 x 12; 10 x 13; 13 x 14; 14 x 15; 16 x 17; 18 x 19; 20 x 22; 21 x 24
4 double-ended ring spanners TORX® No. 21TX: E6 x E8; E10 x E12; E14 x E18; E20 x E24
96830287
4 slotted screwdrivers No. 4620: 0.6 x 3.5 x 75; 0.8 x 4.0 x 100; 1.0 x 5.5 x 125; 1.2 x 6.5 x 150 mm
3 PH cross-head screwdrivers No. 4630: PH1; PH2; PH3
1 water pump pliers No. 6572: L. 240 mm
4 circlip pliers No. 6543, 6545: J1; J2; A1; A2
1 combination pliers No. 6700: L. 180 mm
1 heavy-duty side cutters No. 6721: L. 160 mm
1 telephone pliers No. 6730: L. 200 mm
1 telephone pliers No. 6731: L. 200 mm
Produkt-Highlights
Complete solution for automotive and industrial applications.
Our comprehensive tool set offers the right solution for professional applications in the automotive and industrial sectors: whether replacing spark plugs, loosening stubborn bolted joints on axle or chassis components, performing electrical testing or maintenance work on machines. It includes fine-tooth ratchets with QuickRelease, sockets in 1/4", 3/8" and 1/2" up to 32 mm, a versatile bit set, long spark plug sockets, precise measuring and testing tools, a wide selection of screwdrivers and pliers, and numerous special tools. This equipment provides a reliable basis for all daily tasks in the workshop and in industrial environments.
Takes on anything.
The 877 x 481 mm work surface is particularly suitable for working on large components. The integrated compartments for small parts ensure a tidy and clearly arranged storage area. Thanks to its robust construction, the TTS 93 has a static load capacity of 500 kg. Thanks to reinforcements, the drawers can be loaded with 30 kg and the bottom drawer even with 45 kg.
Full configuration as standard.
Whether paper roll holders, perforations on both sides for attaching accessories, locking brakes or oil and acid-resistant smooth-running castors (Ø 125 mm) with thread protection. Our tool trolley comes with many features as standard.
