Assortment tools


Produkt-Varianten

Product no.ModelWeight (g)
978302642510/629000 g

Technologien und Leistungsmerkmale

Tool Control System

The intelligent modular inlay system protects and organises the tools in tool boxes, tool trolleys and workbenches. Two-colour foam inlays make checking the completeness of the tools quick and easy.

QuickRelease

The QuickRelease safety lock prevents unintentional loss of sockets and insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.

Eigenschaften

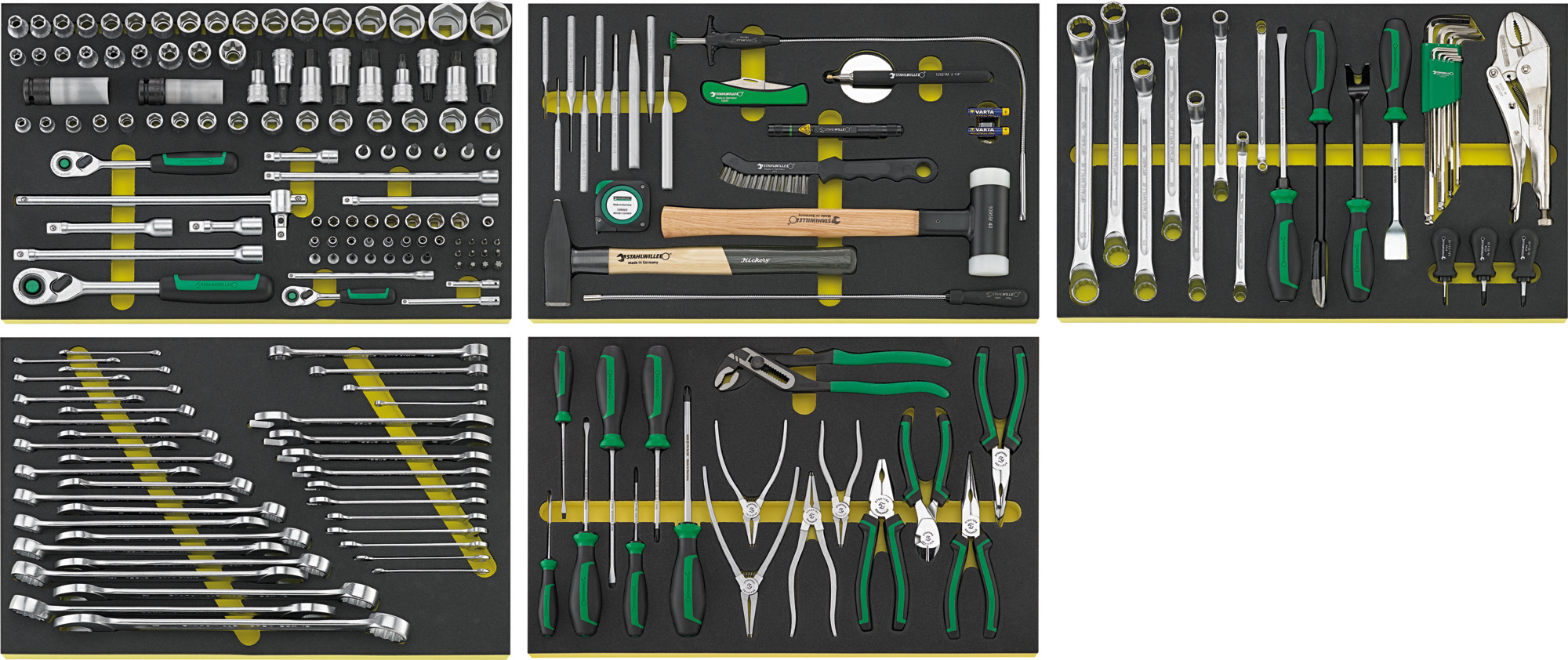

    Contents 206-pcs:

    11 sockets 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

    5 sockets 1/4" No. 40TX: E4; E5; E6; E7; E8

    7 screwdriver bits 1/4" for for internal TORX® screws No.44 KTXB; T10; T15; T20; T25; T27; T30; T40

    3 extension No. 405 6.3 mm (1/4") L.54; 100; 150 mm

    1 bit holder 1/4" No. 412: L.25 mm

    12 bits TORX® 1/4" No. 1410-1421: T6; T7; T8; T9; T10; T15; T20; T25; T27; T30; T40; T45

    16 sockets with hexagon 3/8" No. 456: 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22 mm

    3 sockets 3/8" No. 45TX: E10; E12; E14

    3 INHEX sockets 3/8" No. 49: 5; 6; 7 mm

    3 screwdriver sockets for internal TORX® screws 3/8" No. 49TX: T30; T40; T45

    1 QuickRelease crank 3/8" No. 453QR: L.408 mm

    3 Extensions 3/8" No. 427: L.76. ; 160; 240 mm

    17 sockets 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm

    6 sockets 1/2" for outside TORX® screws No. 50TX: E11; E12; E14; E18; E20; E24

    2 sockets 1/2" No. 2309IMP K: 17; 19 mm

    5 INHEX sockets 1/2" No. 54: 8; 10; 12; 14; 17 mm

    4 screwdriver sockets 1/2" No. 54TX: T45; T50; T55; T60

    1 QuickRelease cross handle 1/2" No. 506QR: L.300 mm

    3 extensions 1/2" No. 509: 75; 130; 255 mm

    1 QR fine-tooth ratchet 1/2" No. 512QR: L.265.5 mm

    6 pin punches No. 108 D.2, 3, 4, 5, 6, 8 mm

    1 flat chisel No. 102/150 W.18 mm L.150 mm

    1 Centre punch No. 105 L.120 mm

    1 Cross chisel No. 103: L.150 mm

    1 Measuring tape No. 12935: L.3 m

    1 Soft face hammer No. 10959: D.40 mm

    1 Locksmith's hammer No.10961 500g with ash handle

    1 Magnetic lifter No. 12600: 500 g

    1 Cable knife No. 12320 Blade-l.90 mm

    1 Telescopic mirror No. 12921 M 2 1/4 INCH / D. 57 mm

    1 Rod light No. 13132: 130 lm

    2 Batteries AAA 1,5 V

    1 Brake caliper brush No. 12373: L.230 mm

    1 Claw gripper No. 12922E: D.6 mm L.540 mm

    8 double-ended ring spanners No. 20: 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 19; 20 x 22 mm

    1 slotted screwdriver w.impact cap No. 4622SK 5 1.2 x 10 x 175mm 3K handle

    1 triangular spoon scraper No. 10676: 85 x 12 x 315 mm

    1 pry bar No. 12770:L. 260mm

    1 gasket scraper No. 12718: L. 265 mm

    1 Ballpoint angle screwdriver set No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

    1 Grip pliers No. 6564: L.250 mm

    1 PHILLIPS® screwdriver DRALL® No. 4744: PZ2

    1 PHILLIPS® screwdriver DRALL® No. 4734: PH2

    1 Slotted screwdriver No. 4724: 0.6 x 3.5 x 25 mm

    23 Combination spanners No. 13: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 23; 24; 27; 29; 30; 32 mm

    11 Double open-ended spanners No. 10: 6 x 7; 8 x 9; 10 x 11; 10 x 12; 10 x 13; 13 x 14; 14 x 15; 16 x 17; 18 x 19; 20 x 22; 21 x 24

    4 double-ended ring spanners No. 21TX: E6 x E8; E10 x E12; E14 x E18; E20 x E24

    4 slotted screwdrivers No. 4620: 0.6 x 3.5 x 75; 0.8 x 4.0 x 100; 1.0 x 5.5 x 125; 1.2 x 6.5 x 150 mm

    3 PHILLIPS® screwdrivers No. 4630: PH1; PH2; PH3

    1 FastGRIP water pump pliers No. 6572: L.240 mm

    2 Circlip pliers No. 6545: A1; A2

    2 Circlip pliers No. 6545: J1; J2

    1 Combination pliers No. 6501: L.180 mm

    1 Power side cutters No. 6602 L.160 mm head chrome-plated 2K-handles

    1 Flat round nose pliers No. 6529: L.200 mm

    1 Flat round nose pliers No. 6530: L.200 mm

Downloads

Produktdatenblatt: STAHLWILLE_97830264_2510-6_en.pdf
PDF | 13.16 MB
