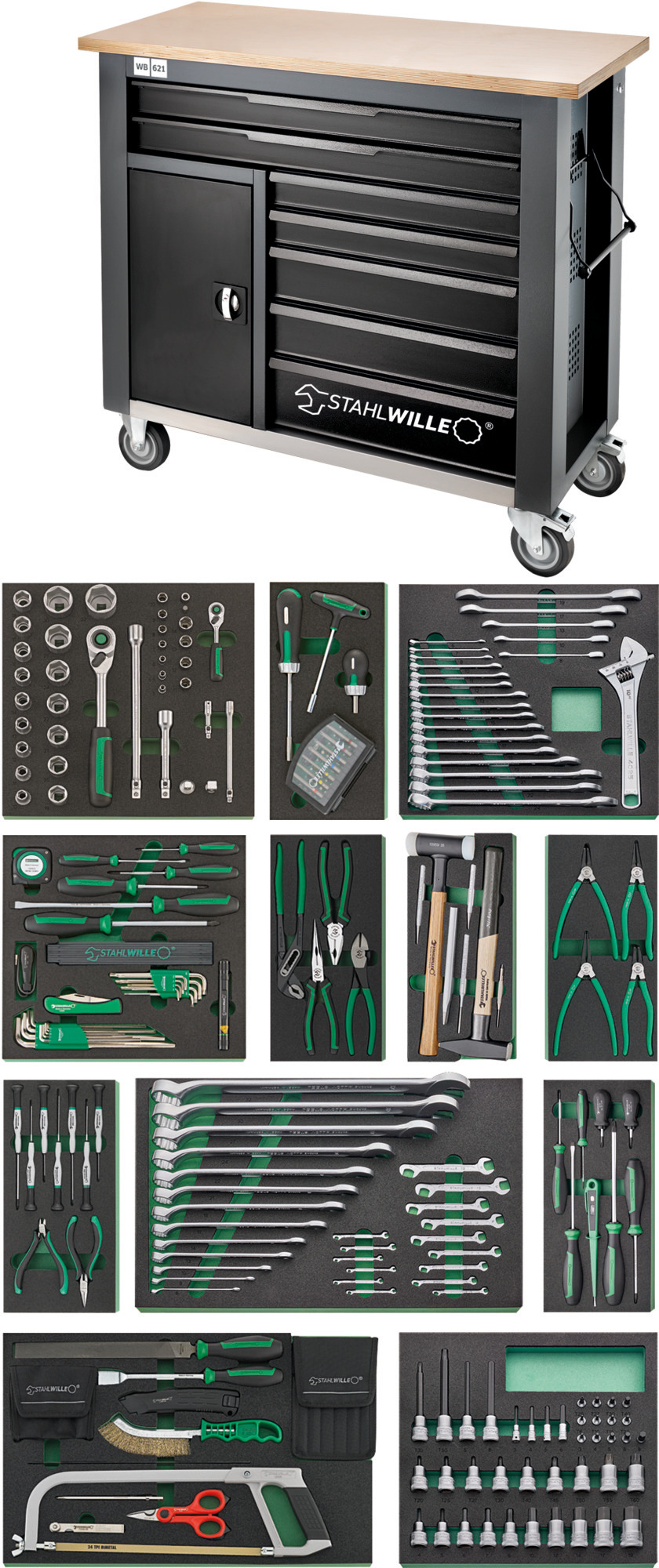

Top feature workbench

• Three-stage safety concept:
• 1. Central locking with a lateral cylinder lock and hinged key
• 2. Individual locks prevent inadvertent opening while in transit
• 3. Tilt protection – makes it impossible to pull out several drawers at the same time
• 7 drawers
• Large work surface with birch multiplex worktop, FSC certified, 1150x 500x30 mm
• Separate lockable cabinet with magnetic bracket and adjustable shelves (70mm grid)
• Drawers and cabinet section close at the same time
• Stainless steel trim
• Cabling is possible through two rubberised feed throughs and a removable cable channel on the back
• Oil- and acid-resistant wheels (125 mm diameter) with thread guards to protect the bearings from dirt and threads, with two locking brakes
• Frame RAL 7016, drawers and cabinet RAL 9005, in durable industrial powder coating
• Paper roll holder
• Hole pattern on the side for hooks No. 8031-8041, e.g., for larger tools
• Can be fitted with STAHLWILLE standard and TCS inserts, drawer 1+2; 1 x 3/3 + 1 x 2/3 drawer 3-7; 1 x 3/3
• Optionally available e-kit consisting of a magnetic multi-plug with two USB ports, a magnetic holder (for variable attachment to any part of the workbench), and a cable holder

Contents 267-piece set:

11 hex socket wrench bits, 1/4” no. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

17 hex socket wrench bits, 1/2” no. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm

2 extensions, 1/4” no. 405QR: 54; 150 mm

1 QuickRelease ratchet No. 415QR N: 1/4”

1 bit connection part no. 3116

2 extensions, 1/2” no. 509QR: 130; 255 mm

1 QuickRelease ratchet no. 512QR N: 1/2”

1 transition piece no. 410: 1/4 to 1/2”

1 transition piece no. 513: 1/2 to 3/8”

1 bit holder no. 412: 1/4”

2 bit ratchets no. 4008: 1/4”

1 bit holder no. 4007: 1/4”

1 bit set no. 1206: 1 bit holder | L. 25 mm: SL4;5;6mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5mm | L.75mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-piece set

1 pipe wrench no. 6551: 240 mm

1 heavy-duty diagonal cutting pliers no. 6602: 160 mm

1 needle-nose pliersno. 6529: 200 mm

1 combination pliers no. 6501: 180 mm

16 combination spanners no. 13:6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm

1 spanner, adjustable no. 4025

5 ratchet combination spanners, flat no. 17F: 8; 10; 13; 17; 19 mm

1 electronic slotted screwdriver no. 4628: 0.4 x 2.5 x 60 mm

2 slot screwdriversNo. 4620: 0.8 x 4 x 100; 1.6 x 10 x 200 mm

3 PHILLIPS® screwdriversno. 4630: PH1; PH2; PH3

1 cable stripping knife no. 12320

1 roller tape measure no. 12935/3: 3 m

1 mini magnet lifter no. 12600: 270 g

1 wooden folding ruler no. 13111: 2 m

1 ball-shaped offset screwdriver setTORX® no. 10771/8: 8-piece set

1 hex ball-shaped offset screwdriver set No. 10767/9: 9-piece set

1 engineer’s hammer no. 10961: 500 g

1 soft-faced hammer no. 10959: 35 mm

1 flat chisel no. 102/175: 175 mm

1 pin punch no. 108/150: 150 x 6 mm

1 centre punch no. 105/100: 100 x 10 mm

1 pin punch no. 109/6: 3.4 mm

1 drift punch no. 104/120: 120 x 4 mm

1 screw extractor set no. 900/6 T: 6-piece set

1 warding file set no. 12800: 6-piece set

1 flat file no. 12036: 260 mm

1 gasket scraper no. 12718

1 general-purpose knife no. 12965

1 wire brush no. 12377

1 steel ruler no. 13110

1 metal saw no. 12050

1 scriber tool no. 12322

1 wire cutter no. 13148

1 precision feeler gauge no. 11095/20

13 combination spanners no. 14: 6; 8; 10; 13; 14; 17; 19; 21; 22; 24; 27; 30; 32 mm

15 open-end wrenches no. 12: 3.2; 3.5; 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

1 circlip pliers no. 6546: A21

1 circlip pliers no. 6543: J2

1 circlip pliers no. 6545: A2

1 circlip pliers no. 6544: J21

9 screwdriver inserts TORX® 1/2” no. 54 TX: T20; T25; T27; T30; T40; T45; T50; T55; T60

10 screwdriver inserts for Allen screws, 1/2” no. 54: 4; 5; 6; 7; 8; 10; 12; 14; 17; 19 mm

2 screwdriver inserts for TORX®, 1/2” no. 1054 TX: T30; T50

2 screwdriver inserts for Allen screws, 1/2” no. 1054/2054: 6; 8 mm

4 screwdriver inserts for Allen screws, 1/4” no. 44: 3; 4; 5; 6 mm

8 screwdriver inserts for TORX®, 1/4” no. 44 TX: T8; T10; T15; T20; T25; T27; T30; T40

5 screwdriver inserts for Allen screws, 1/4” no. 44: 3; 4; 5; 6; 8 mm

4 electronic slotted screwdriver no. 4751: 0.3 x 1.5; 0.4 x 2; 0.4 x 2.5; 0.5 x 3 mm

3 electronic PHILLIPS® screwdrivers No. 4752: PH00; PH0; PH1

1 needle-nose pliers no. 6540: 125 mm

1 mini electronics diagonal cutter no.6604

1 slotted screwdriver no. 4620: 1.0 x 5.5 x 125 mm

4 PHILLIPS® screwdriversno. 4640: PZ0; PZ1; PZ2; PZ3

2 PHILLIPS® screwdriversno. 4734: PH1; PH2

1 voltage tester no. 10554
