Pullers
Pullers

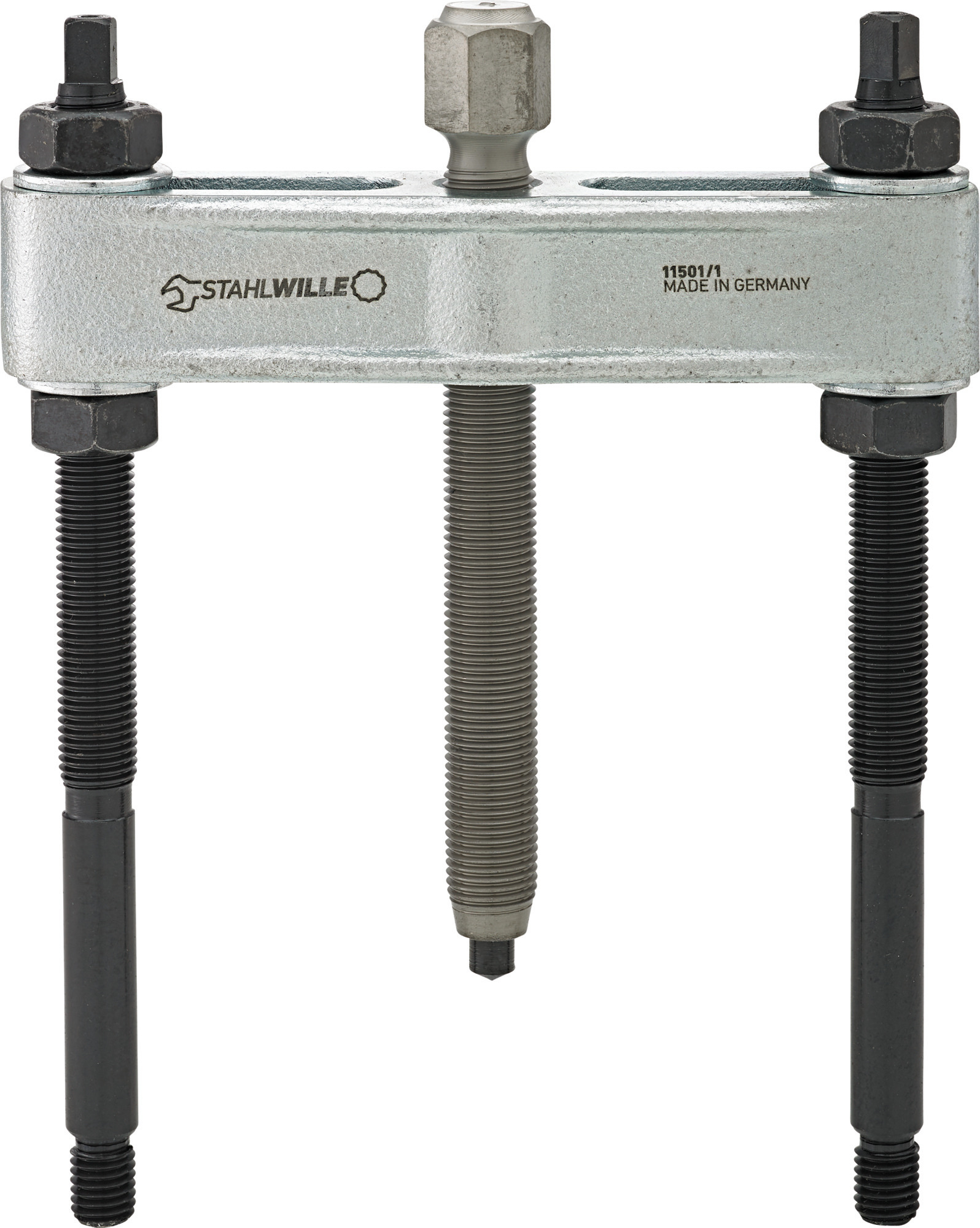

11501
Artikel-Nr. 71050103|EAN 4018754342280
- For use with the separation assembly 11500/3.

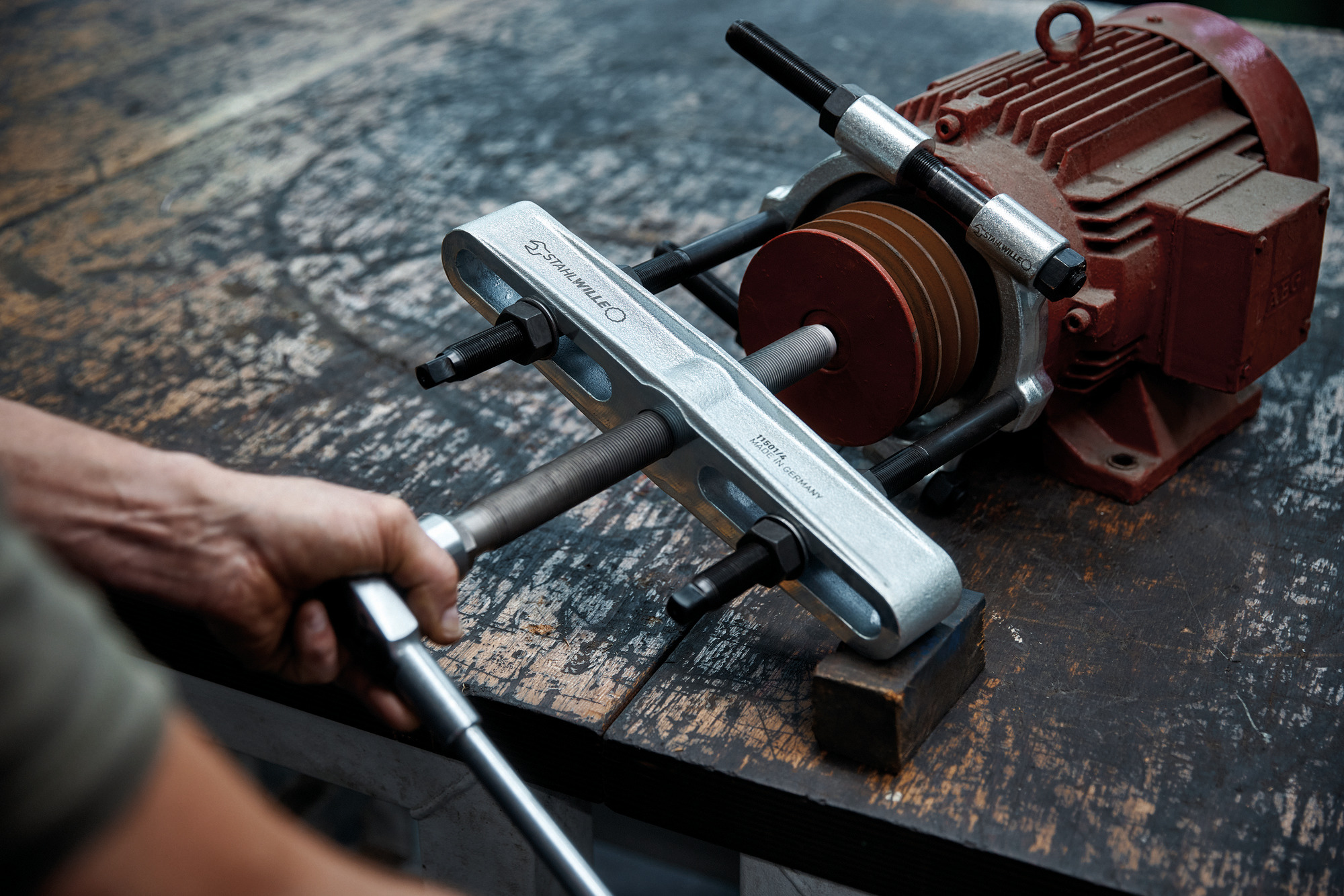

- Makes reliable and fast extraction of tight fitting ball bearings, bushings, oil seals etc. possible .
- The fixed bolting of the separation assembly to the puller provides high stability.
- Strong spindle with fine thread for outstanding precision and load capacity.
- The clamping depth can be increased using the extension 11502.
Produkt-Varianten

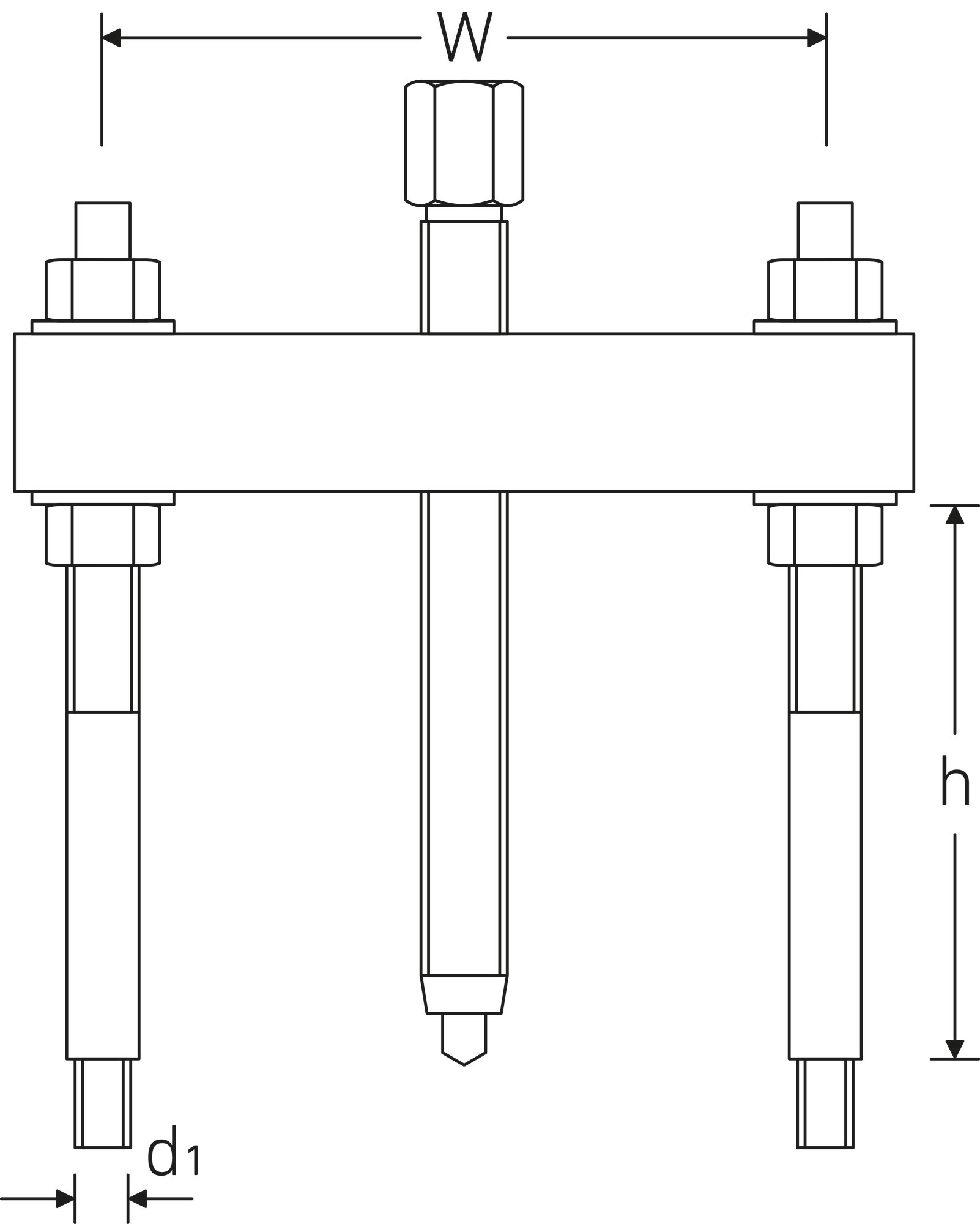

| Product no. | Size | Model | for model | External hex drive (mm) | Clamping range mm (w) | Clamping depth (h) mm | Spindle thread size | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 71050101 | 1 | 11501 | 11500/1 | 17 mm | 40-120 mm | 125 mm | M14 x 120 | 1000 g | Jetzt entdecken |
| 71050102 | 2 | 11501 | 11500/2 | 19 mm | 60-165 mm | 180 mm | M18 x 170 | 1100 g | Jetzt entdecken |
| 71050103 | 3 | 11501 | 11500/3 | 22 mm | 70-215 mm | 195 mm | G 1/2 x 210 | 3400 g | |
| 71050104 | 4 | 11501 | 11500/4 | 27 mm | 90-300 mm | 205 mm | G 3/4 x 280 | 6500 g | Jetzt entdecken |
Eigenschaften
- for the separation assemblies 11500/3
- for pulling, the puller pins are screwed into the separation assembly

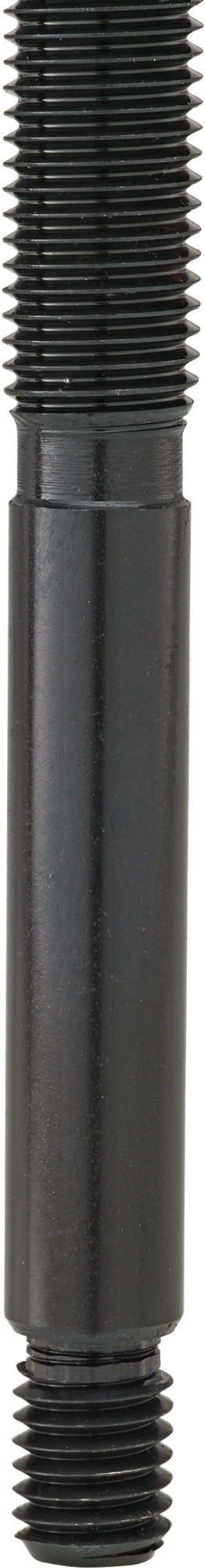

- clamping depth can be increased using extension 11502/1-4
- zinc plated
Produkt-Highlights
Even pressure distribution.
The use of a puller and separation assembly enables even pressure distribution on the parts to be separated, minimising the risk of deformation or breakage.
Reliable sliding properties.
The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.
High quality.
STAHLWILLE is known for its high-quality tools. The tool is carefully designed, made of robust steel and additionally zinc plated for high durability and resistance to high loads.
