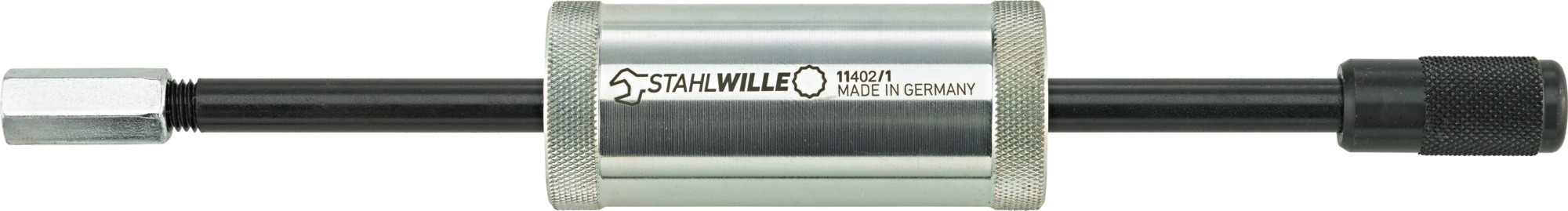

Slide hammer
Slide hammer
11402
Artikel-Nr. 71040201|EAN 4018754342204
- Makes smaller components such as ball bearings easier to remove.
- For use with internal extractors 11400/1,11400/2,11400/3.
- Ideal for use in confined spaces.
- Replaces the counter stay where support surfaces are not available.
- Knurled zones provide an optimum grip.
Produkt-Varianten
| Product no. | Size | External hex drive (mm) | Length mm (L) | for threads | for model | Impact weight | Impact path (mm) | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 71040201 | 1 | 13 mm | 280 mm | M10 | 11400/1, 11400/2, 11400/3, 11400/4, 11400/4a, 11400/5 | 700 g | 200 mm | 979 g | |
| 71040202 | 2 | 24 mm | 515 mm | M14 x 1,5 | 11400/6, 11400/7, 11400/8, 11400/9 | 1700 g | 340 mm | 2923 g | Jetzt entdecken |
Eigenschaften
for extracting ball bearings, for example, if a counter support cannot be used for space reasons
Produkt-Highlights
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
