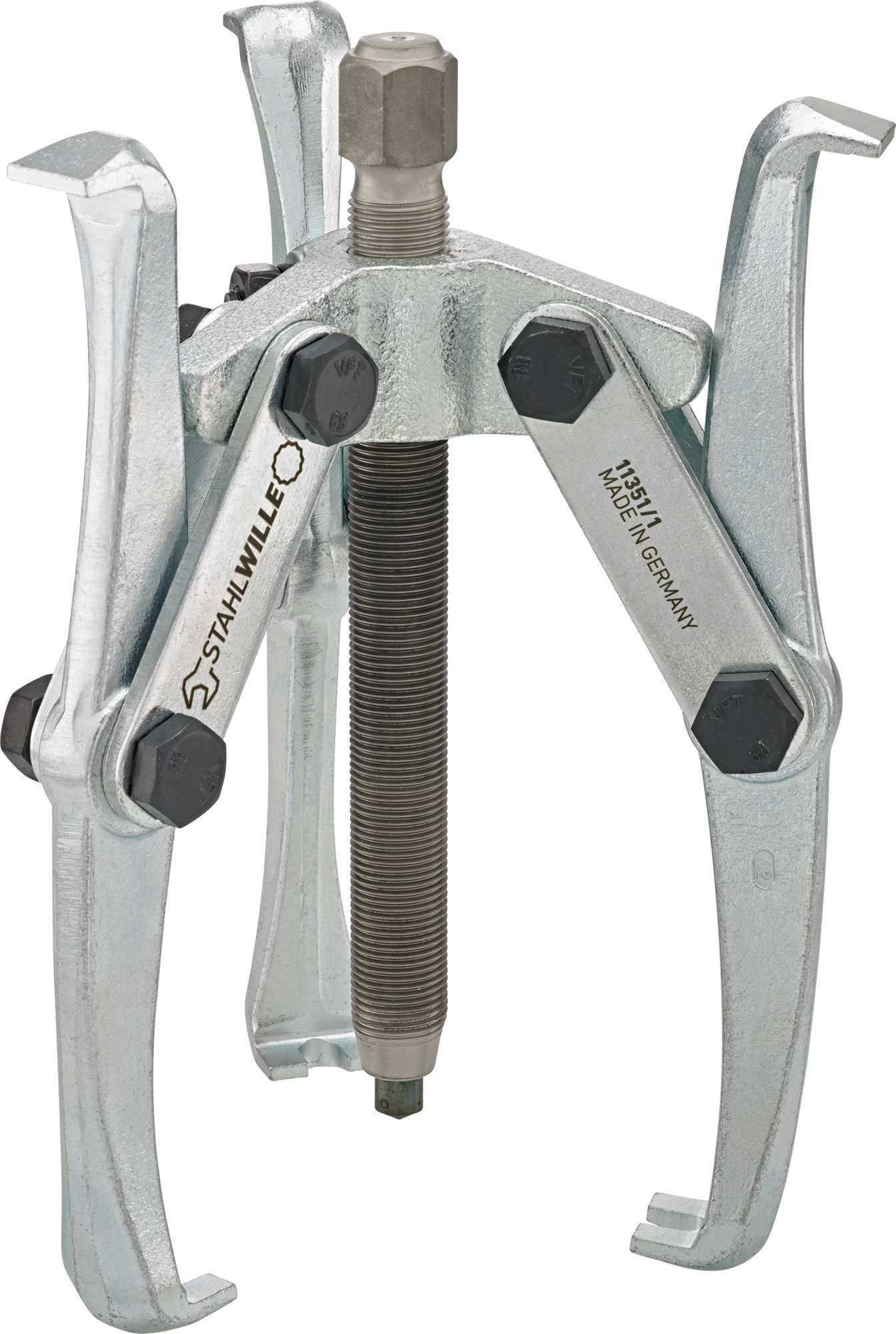

Puller
Puller
11351
Artikel-Nr. 71035101|EAN 4018754342051
- For quick and reliable removal of gears, ball bearings, pulleys and for extracting the outer rings of ball bearings and bushings from drilled holes.
- Die Hakenenden haben eine schmale und breite Ausführung und sind damit beidseitig verwendbar.
- Automatisches Anpressen der Haken unter Belastung erleichtert die Anwendung.
- Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity.
- The nitrided surface of the pressure spindle provides excellent sliding properties and does not require additional oiling.
Produkt-Varianten

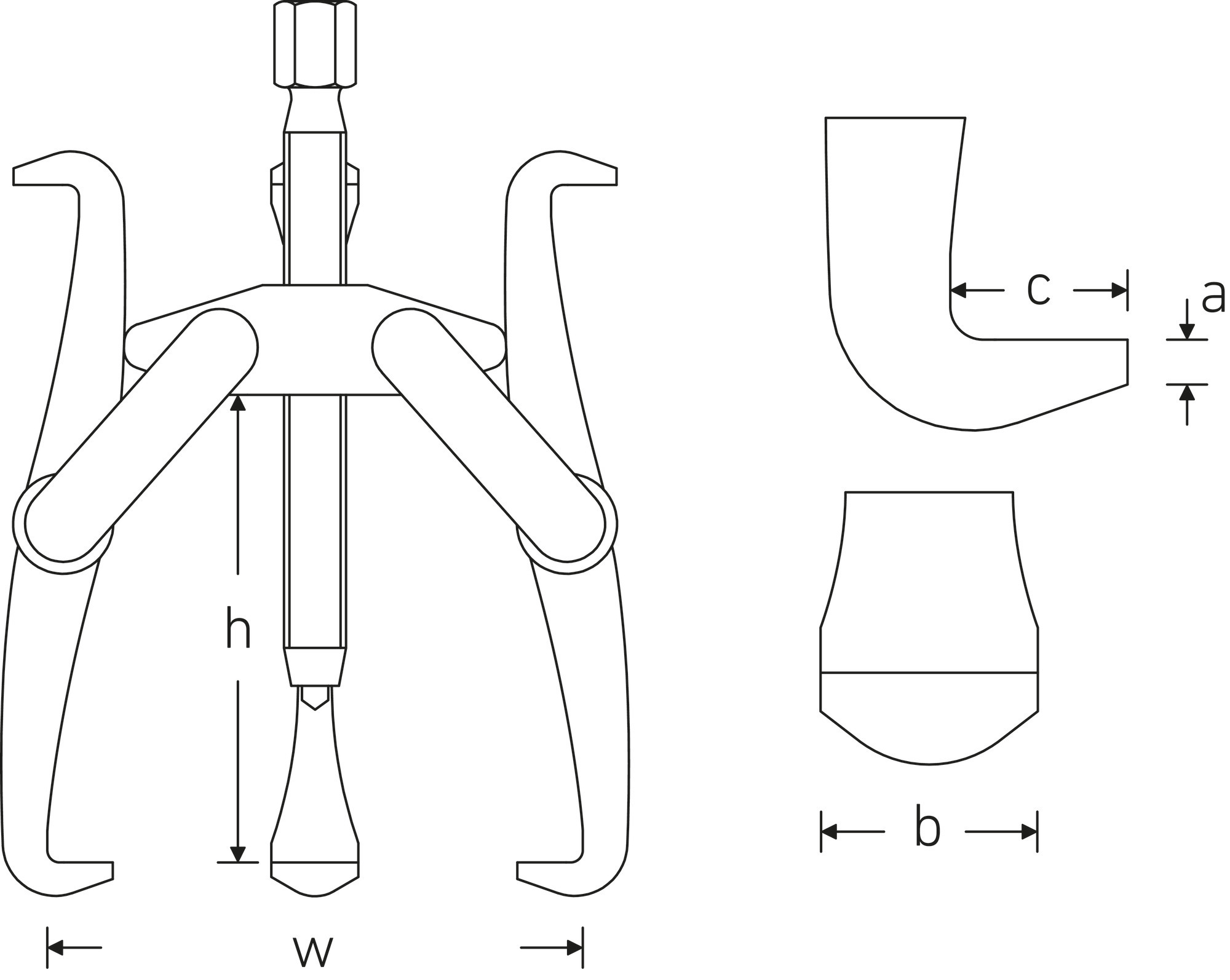

| Product no. | Size | External hex drive (mm) | Number of hooks | max. load | Clamping depth (h) mm | Span mm (w) | Spindle thread size | Hook base width mm (b) | Hook base depth mm (c) | Thickness of hook base tip mm (a) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71035101 | 1 | 19 mm | 3 | 7,5 t | 130 mm | 160 mm | M18 x 1,5 x 170 | 24 mm | 12 mm | 3 mm | 2600 g | |
| 71035102 | 2 | 19 mm | 3 | 7,5 t | 170 mm | 220 mm | M18 x 1,5 x 170 | 24 mm | 12 mm | 3 mm | 3200 g | Jetzt entdecken |
Eigenschaften
- three-armed, with self-centering puller arms
- for extracting gears, ball bearings, pulleys and similar parts from a shaft or axle
- for extracting ball bearings, ball bearing outer rings and bushes from bores
- nitrided spindle, no oiling necessary, maintenance-free
- galvanized
- puller hooks can be used on both sides
Produkt-Highlights
Reliable sliding properties.

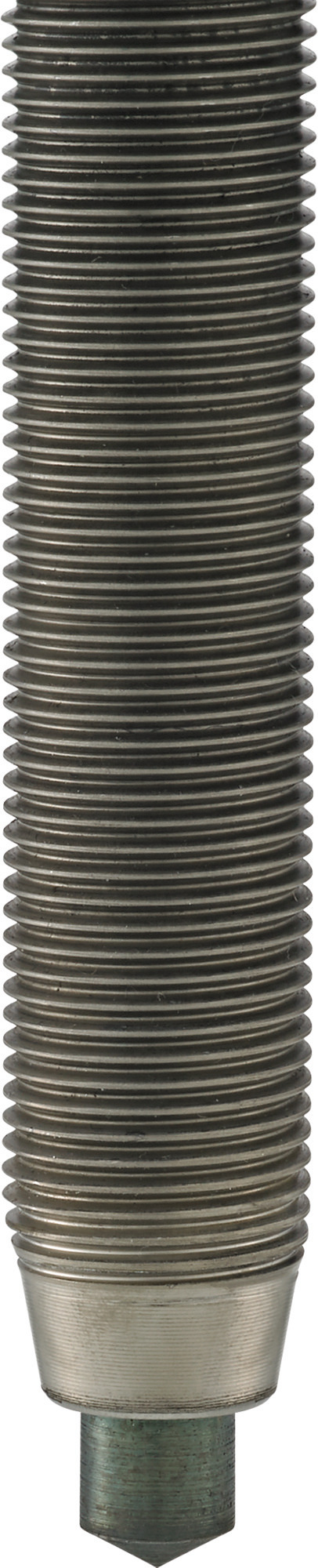

The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.
Adapted access geometry.

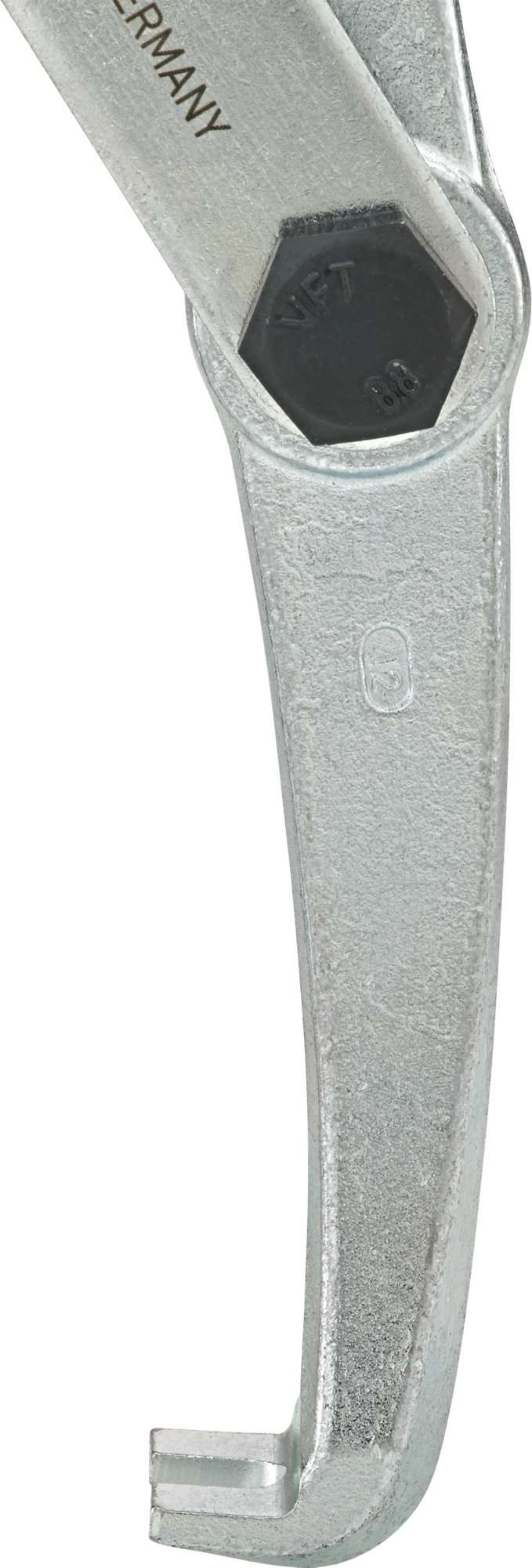

Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
Protection against damage.
The centering tip is freely rotating - to protect the shafts from damage.
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
