Puller
Puller
11210
Artikel-Nr. 71035001|EAN 4018754342013
- Centred extraction thanks to even load distribution over 3 extractor hooks.
- The greater the extraction force, the stronger the grip of the extractor hooks on the workpiece to be extracted.
- Adjustable clamping depth for universal use.
- Particularly suitable for removing V-belt pulleys and flywheels mounted on longer shafts.
- Easy on the workpiece thanks to even force distribution.
Produkt-Varianten

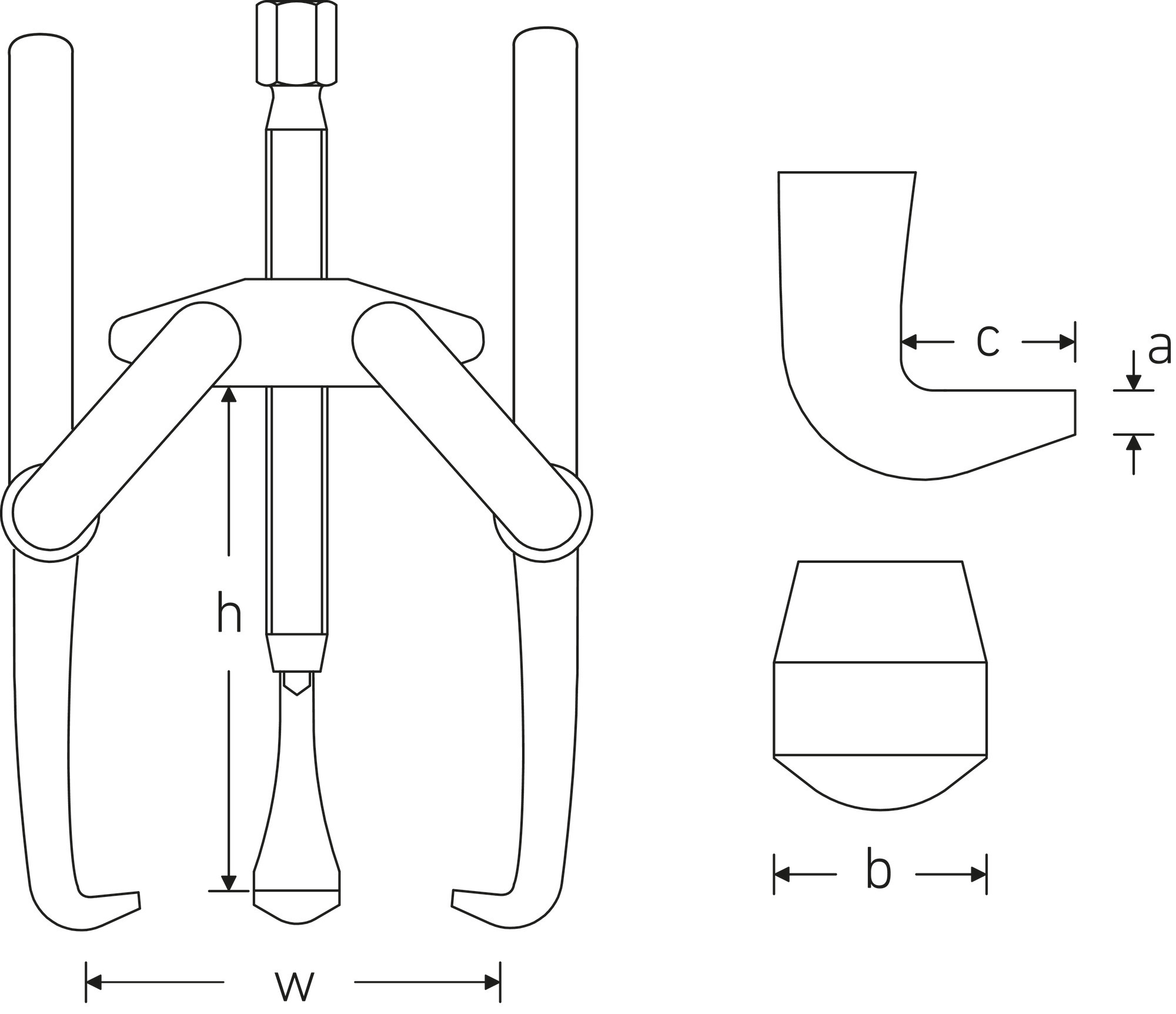

| Product no. | Size | External hex drive (mm) | Number of hooks | max. load | Clamping depth (h) mm | Span mm (w) | Spindle thread size | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 71035001 | 1 | 22 mm | 3 | 12 t | 390 mm | 280 mm | G 1/2 x 250 | 7700 g | |
| 71035002 | 2 | 22 mm | 3 | 12 t | 480 mm | 420 mm | G 1/2 x 350 | 8900 g | Jetzt entdecken |
Eigenschaften

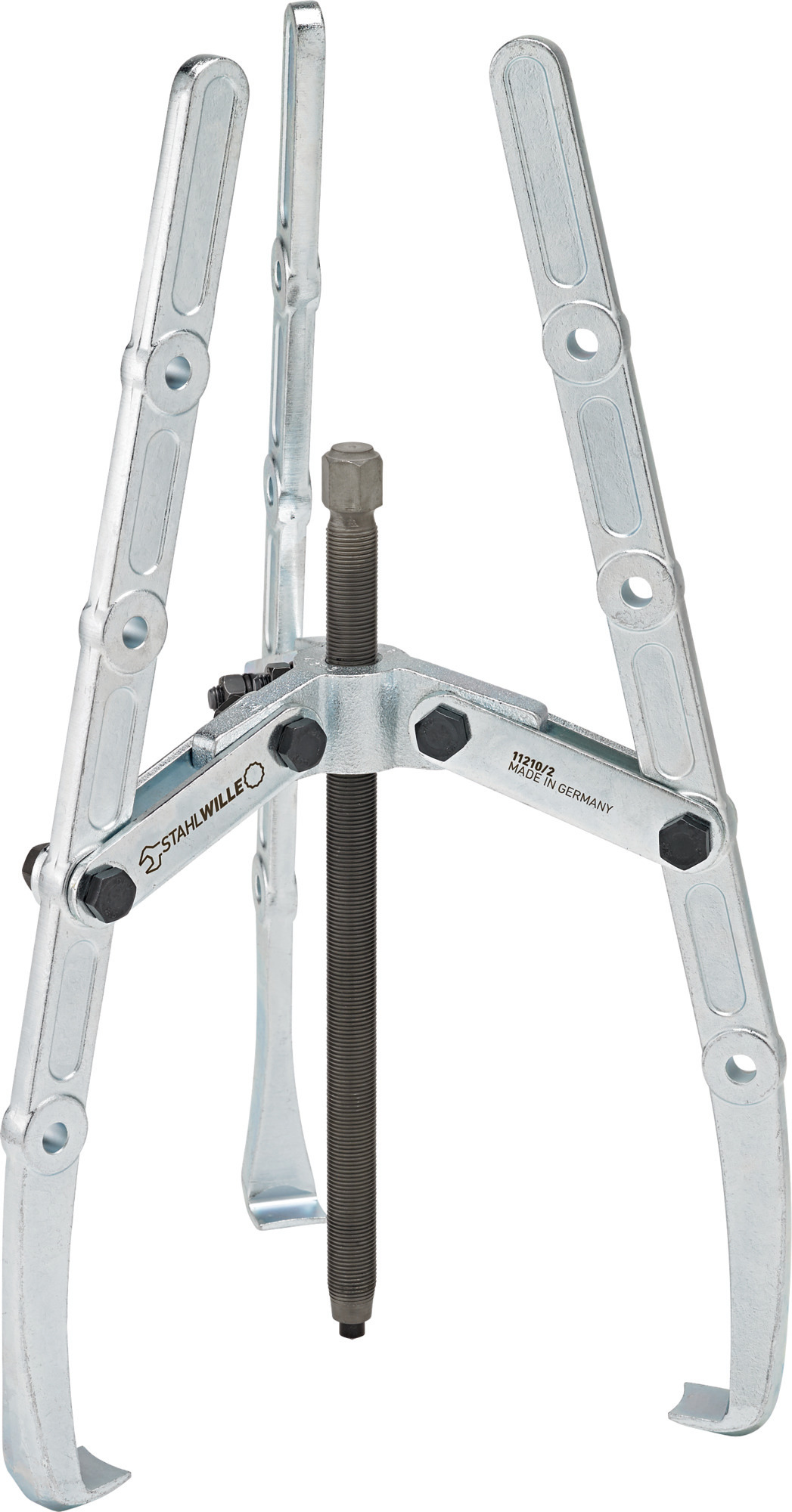

- three-armed
- with swivelling puller hooks
- puller hook and crossbar are connected by movable brackets
- for pulling off V-belt pulleys and flywheels on long shafts
- when the spindle is tightened, the puller hooks are tensioned and tighten
- variable clamping depth possible by adjusting the puller hooks

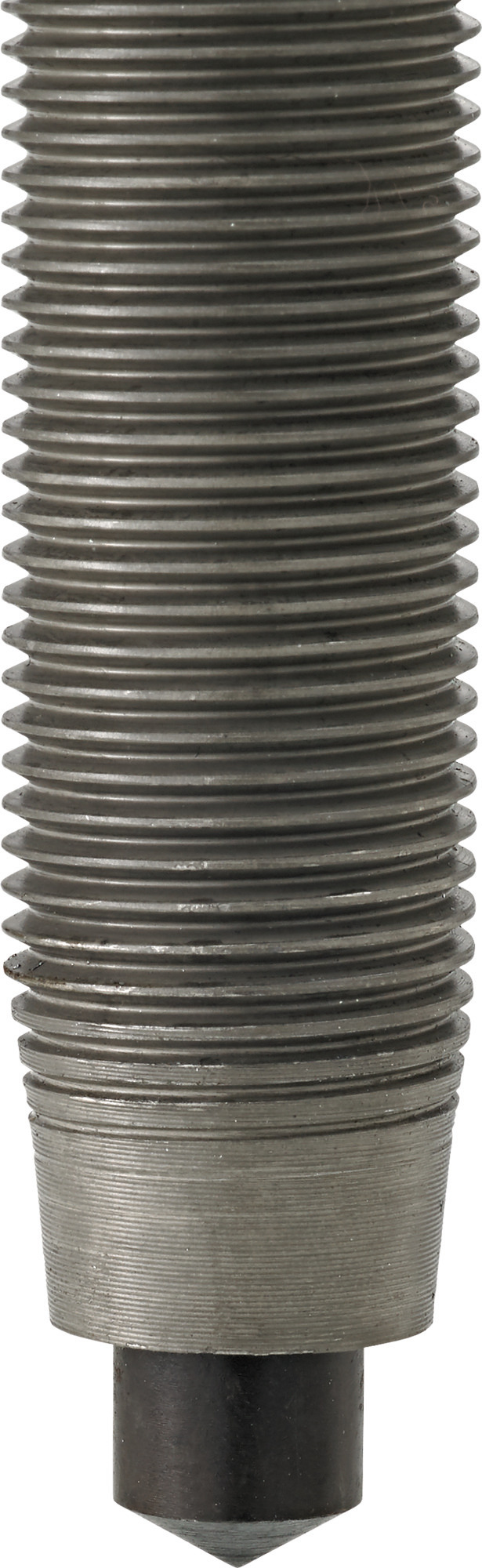

- nitrided spindle, no oiling necessary, maintenance-free
- galvanized
Produkt-Highlights
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
