Puller
Puller
11300

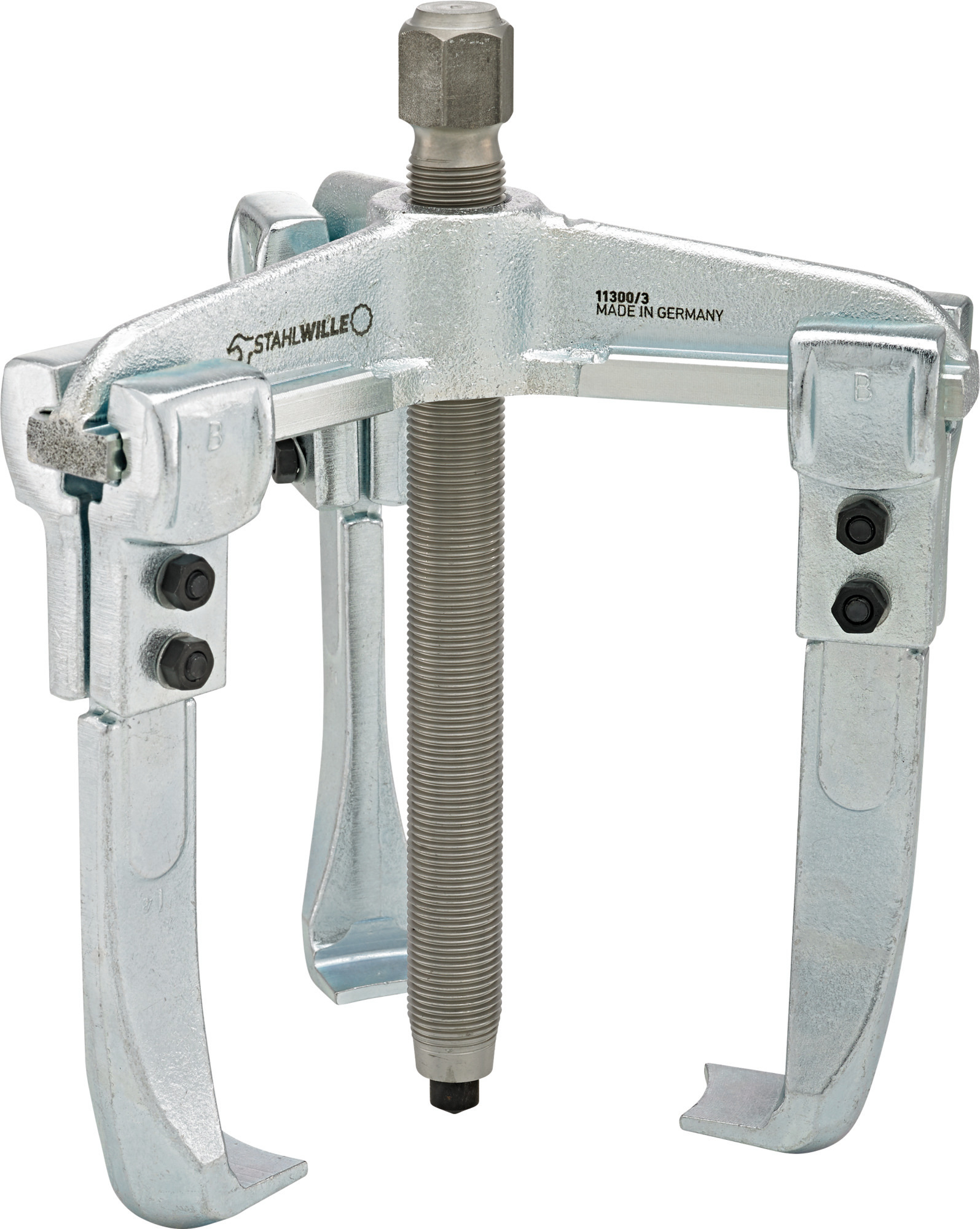

- For quick and reliable removal of gears, ball bearings, fan belts and for extracting the outer rings of ball bearings and bushings from drilled holes.
- Even load distribution over 3 extractor hooks provides a secure hold and centred extraction.
- The adjustable extractor hooks make for universal use as both an external or internal extractor possible.
- Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity.
- The nitrided surface of the pressure spindle provides excellent sliding properties and requires no additional oiling.
Produkt-Varianten
| Product no. | Size | External hex drive (mm) | Number of hooks | max. load | Clamping depth (h) mm | External span max. mm (w1) | Internal span max. mm (w2) | Internal span min. mm | Spindle thread size | Hook base width mm (b) | Hook base depth mm (c) | Thickness of hook base tip mm (a) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71030001 | 1 | 17 mm | 3 | 3 t | 100 mm | 90 mm | 140 mm | 70 mm | M14 x 1,5 x 140 | 22 mm | 12 mm | 3 mm | 1400 g | Jetzt entdecken |
| 71030002 | 2 | 17 mm | 3 | 3 t | 100 mm | 130 mm | 180 mm | 80 mm | M14 x 1,5 x 140 | 22 mm | 12 mm | 3 mm | 1600 g | |
| 71030003 | 3 | 22 mm | 3 | 5 t | 150 mm | 160 mm | 220 mm | 100 mm | G 1/2 x 210 | 30 mm | 18 mm | 4 mm | 3600 g | Jetzt entdecken |
| 71030004 | 4 | 22 mm | 3 | 5 t | 150 mm | 200 mm | 260 mm | 100 mm | G 1/2 x 210 | 30 mm | 18 mm | 4 mm | 4200 g | Jetzt entdecken |
| 71030005 | 5 | 27 mm | 3 | 7,5 t | 200 mm | 250 mm | 400 mm | 100 mm | G 3/4 x 280 | 36 mm | 28 mm | 7 mm | 9300 g | Jetzt entdecken |
Eigenschaften
- three-armed
- reversible hooks for use as external and internal pullers
- for removing gears, ball bearings, pulleys and similar parts from a shaft or axle
- for removing ball bearings, ball bearing outer rings and bushes from bores
- nitrided spindle, no oiling necessary, maintenance-free
- sturdy design, galvanized
Produkt-Highlights
Flexible repositioning function.
A three-legged puller is generally preferable to a two-legged one provided there is sufficient space because it distributes the pulling forces more evenly.
Reliable sliding properties.

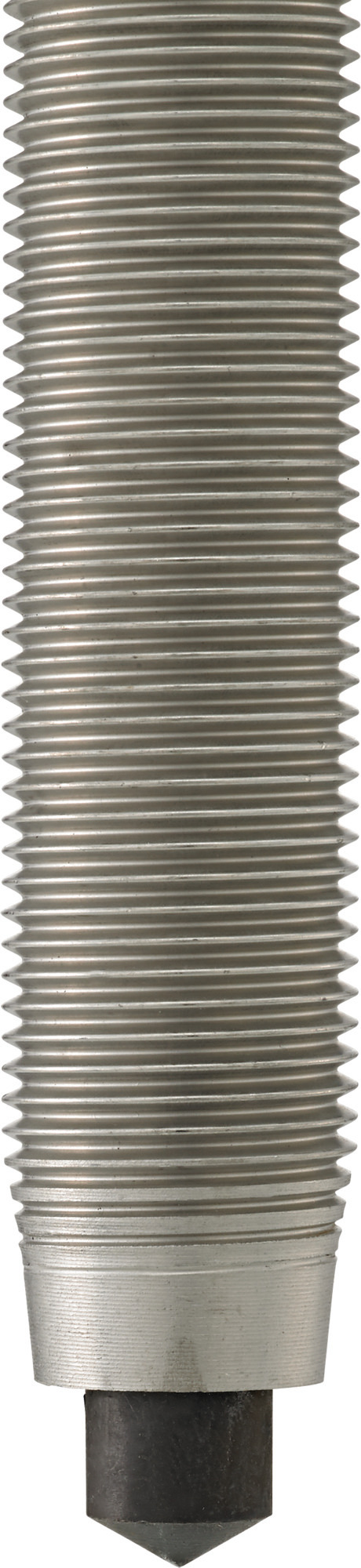

The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.
Adapted access geometry.

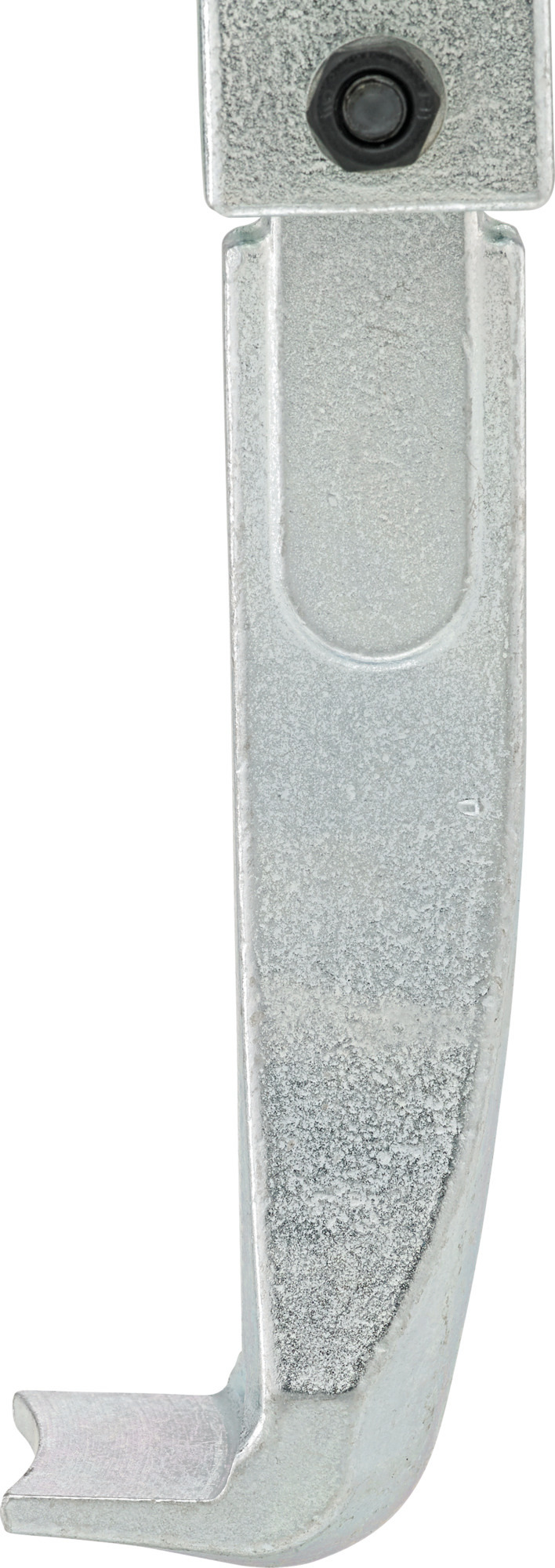

Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
Sturdy design.
High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways.
Protection against damage.
The centering tip is freely rotating - to protect the shafts from damage.
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
