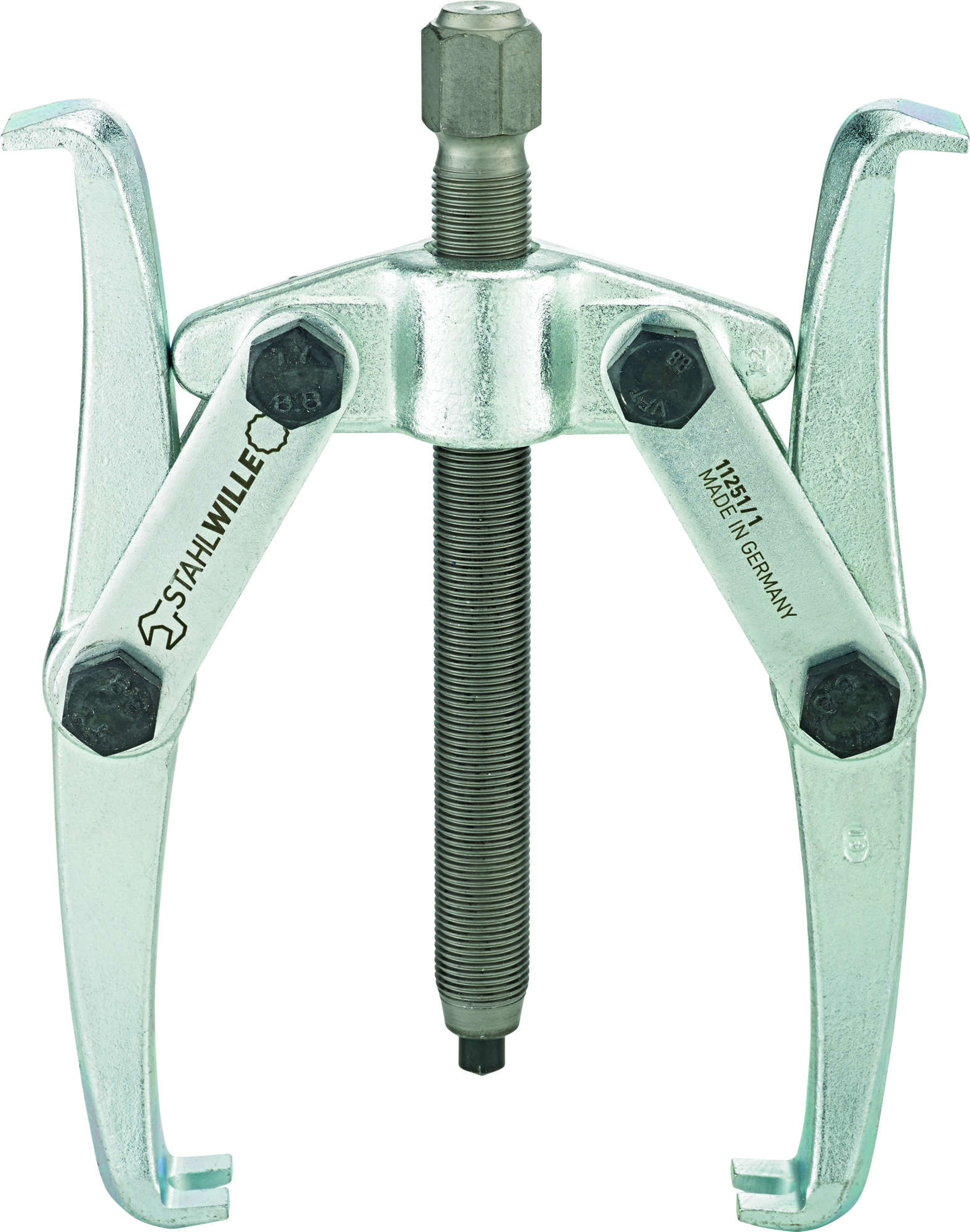

Puller
Puller
11251
- Trigger hooks can be used on both sides.
- Nitrided spindle, no oiling necessary - maintenance-free.
- Self-acting pressing of the puller hooks.
- Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity.
- The nitrided surface of the pressure spindle provides excellent sliding properties and does not require additional oiling.
Produkt-Varianten

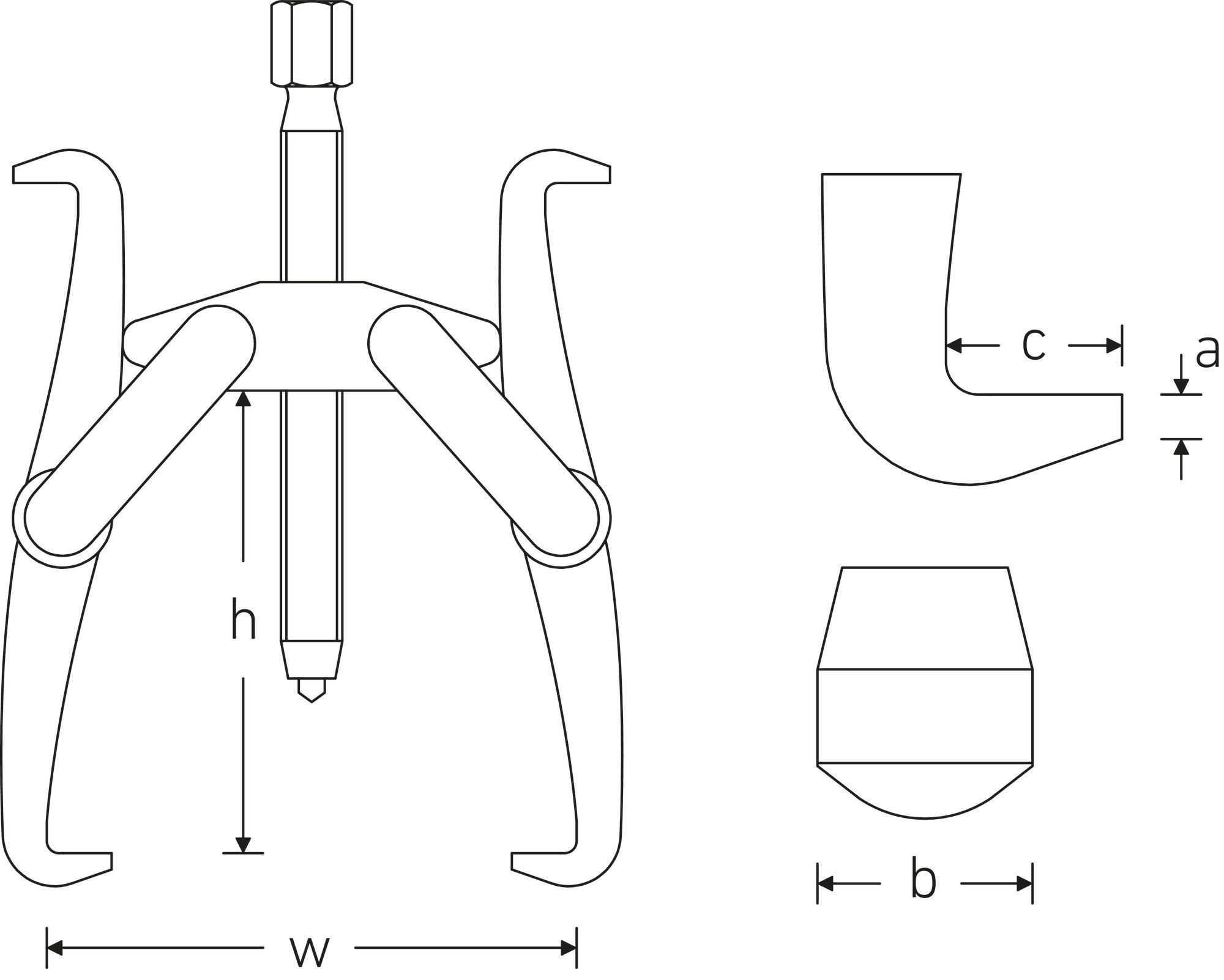

| Product no. | Size | External hex drive (mm) | Number of hooks | Hook width | max. load | Clamping depth (h) mm | Span mm (w) | Spindle thread size | Hook base width mm (b) | Hook base depth mm (c) | Thickness of hook base tip mm (a) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71025101 | 1 | 19 mm | 2 | 20/24 mm | 5 t | 130 mm | 160 mm | M18 x 1,5 x 170 | 24 mm | 12 mm | 3 mm | 2000 g | |
| 71025102 | 2 | 19 mm | 2 | 20/24 mm | 5 t | 170 mm | 220 mm | M18 x 1,5 x 170 | 24 mm | 12 mm | 3 mm | 2300 g | Jetzt entdecken |
Eigenschaften
- two-armed
- for pulling off gears, pulleys, ball bearings etc.
- nitrided spindle, no oiling necessary - maintenance-free
- One end of the hook is narrow (20 mm wide) for tight spaces
- The other end of the hook is wide (24 mm wide) with a slot (8 mm), so that discs or gears can be pulled off with the aid of 8 mm screws
Pull-off hooks can be used on both sides:
Produkt-Highlights
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
Adapted access geometry.
Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.

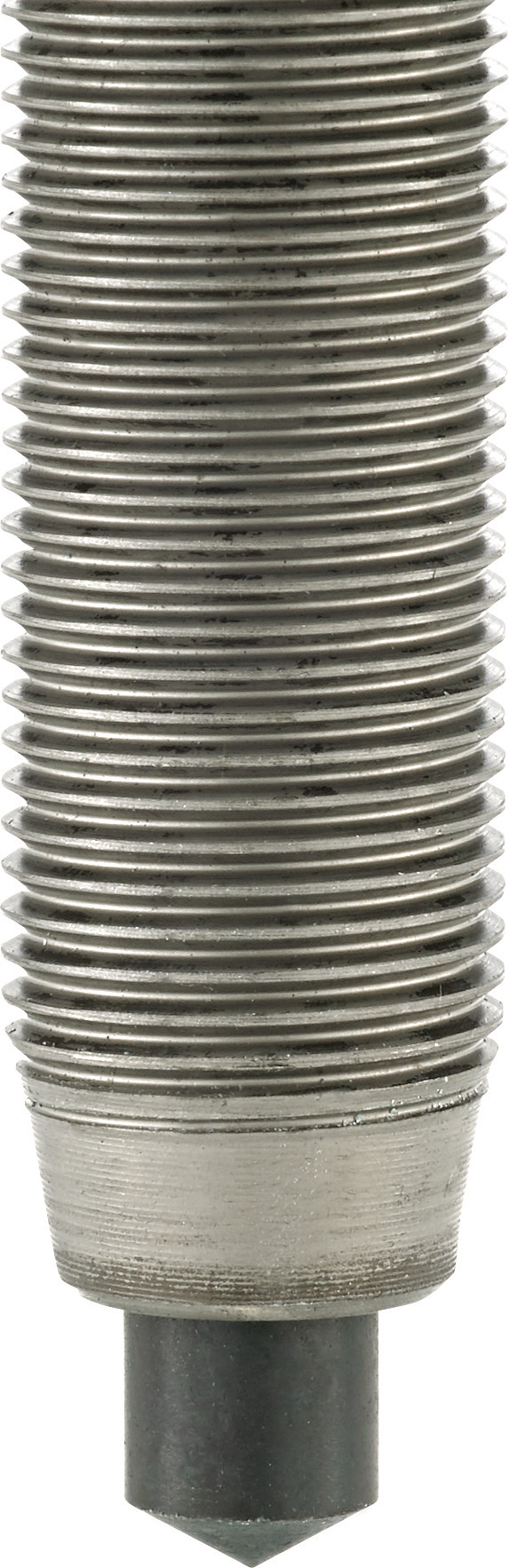

Reliable sliding properties.
The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.
Protection against damage.
The centering tip is freely rotating - to protect the shafts from damage.
Sturdy design.
High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways.

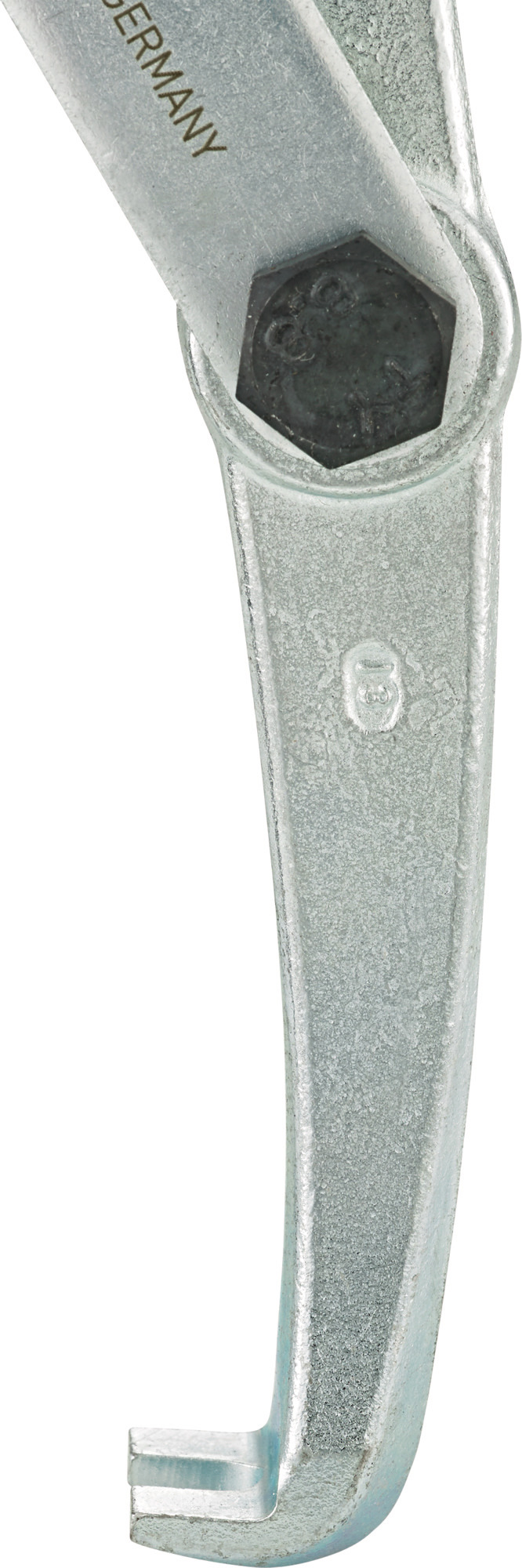

Flexible puller hooks.
The two-sided puller hooks can be used flexibly because they have different designs at both ends. The narrow side (20 mm) is perfect for tight spaces, while the wide side (24 mm) has an 8 mm slot that allows effortless removal of washers or gears with 8 mm screws.
