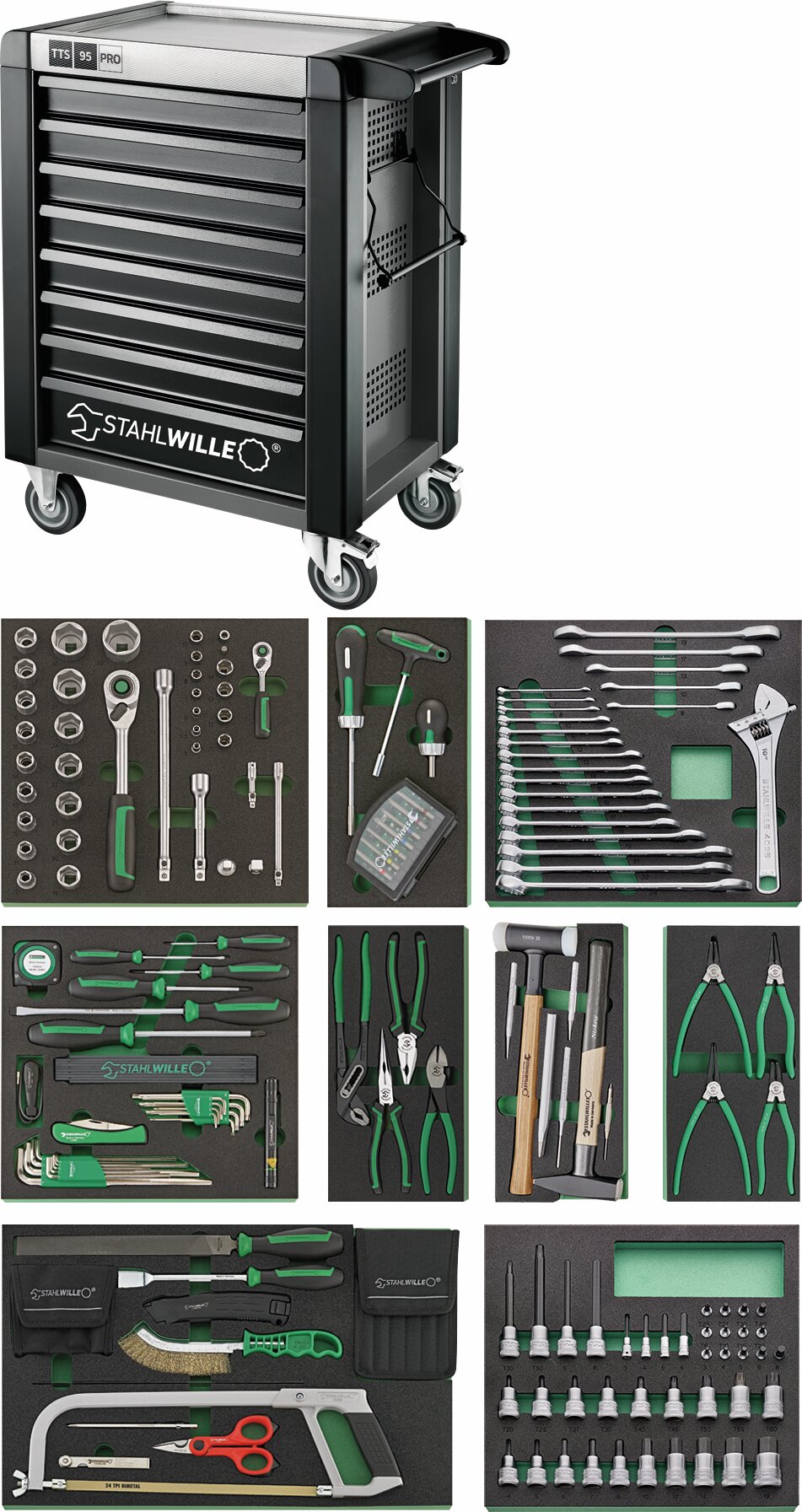

Tool assortment with tool trolley

95/222QR

Artikel-Nr. 98830244|EAN 4018754368624

Tough, sturdy tool trolley with 8 fully extendable drawers and central locking, including 222-piece tool assortment.
Professional set for discerning users: QR fine-tooth ratchets with extensions, comprehensive set of INHEX and TORX® sockets
Patented QuickRelease locking system – secures every component from ratchets and extensions to sockets.
The heavy-duty tool trolley 95/8 has a static load capacity of up to 750 kg – the lower drawer has a load capacity of up to 45 kg.
The tools are securely integrated in durable, chemical-resistant TCS inlays with precise cutouts and a colour-coded signal area.

Product no.	Model	Length mm (L)	Width mm (b)	Height mm (h)	Number of drawers	Load capacity	Drawer load capacity	Colour	Number of tools	Maß-Skizze
98830244	95/222QR	496 mm	827 mm	1020 mm	8	750 kg	30 kg 45 kg	anthracite, RAL 7016; black, RAL 9005	222 pcs.

Product no.

Model

Length mm (L)

Width mm (b)

Height mm (h)

Number of drawers

Load capacity

Drawer load capacity

Colour

Number of tools

Maß-Skizze

98830244

95/222QR

496 mm

827 mm

1020 mm

750 kg

30 kg 45 kg

anthracite, RAL 7016; black, RAL 9005

222 pcs.

Eigenschaften

Key features of the tool trolley

three-stage safety concept:
- central locking with a lateral cylinder lock and hinged key
- individual locks prevent inadvertent opening during transit
- tilt protection – makes it impossible to pull out several drawers at the same time

Contains 222 pieces:

96830264

11 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm

2 QuickRelease extensions 1/4" No. 405QR: L. 54; 150 mm

1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm

1 bit adaptor, manual 1/4" No. 3116: L. 25 mm

2 QuickRelease extensions 1/2" No. 509QR: L. 130; 255 mm

1 QuickRelease fine-tooth ratchet 1/2" No. 512QR N80: L. 265.5 mm

1 step-up adaptor No. 410: 1/4 to 1/2"

1 step-down adaptor No. 513: 1/2 to 3/8"

1 bit holder 1/4" No. 412: L. 25 mm

96830265

2 bit ratchet screwdrivers 1/4" No. 4008: L. 95; 250 mm

1 bit holder 1/4" No. 4009: L. 176 mm

1 bit box No. 1206: 1 bit holder | L. 25 mm: SL4;5;6 mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5 mm | L. 75 mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56 pieces

96830266

1 water pump pliers No. 6551: L. 240 mm

1 heavy-duty side cutters No. 6721: L. 180 mm

1 telephone pliers No. 6730: L. 200 mm

1 combination pliers No. 6700: L. 180 mm

96830267

16 combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm

1 open-ended spanner, adjustable No. 4025: max. 34 mm

5 combination ratchet spanners, flat No. 17F: 8; 10; 13; 17; 19 mm

96830268

1 electrician’s slotted screwdriver No. 4628: 0.4 x 2.5 x 60 mm

2 slotted screwdrivers No. 4620: 0.8 x 4 x 100; 1.6 x 10 x 200 mm

3 cross-head screwdrivers No. 4630: PH1; PH2; PH3

1 cable knife No. 12320: Blade length: 90 mm

1 tape measure No. 12935: L. 3 m

1 mini magnetic lifter No. 12600: 270 g

1 torch No. 13132: 130 lm

1 folding ruler No. 13112: L. 2 m

1 TORX® ball-ended L-Key set No. 10771/8: T9; T10; T15; T20; T25; T27; T30; T40

1 hex ball-ended L-Key set No. 10765/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

96830269

1 engineer’s hammer No. 10961: 500 g

1 dead blow hammer No. 10959: Ø 35 mm

1 flat chisel No. 102: W. 20; L. 175 mm

1 pin punch No. 108: Ø 6 mm

1 centre punch No. 105: Ø 10 mm

1 pin punch No. 109: Ø 3.4 mm

1 drift punch No. 104: Ø 4 mm

96830271

1 screw extractor set No. 900/6 T: M3-M4; M5-M7; M8-M11; M10-M12; M14-M16; M18-M22

1 warding file set No. 12800: 6 pieces

1 flat file No. 12036: L. 260 mm

1 gasket scraper No. 12718: L. 265 mm

1 safety knife (Cutter) No. 12965: L. 165 mm

1 wire brush No. 12377: L. 270 mm

1 steel ruler No. 13110: L. 300 mm

1 hacksaw frame No. 12050: blade length: 300 mm

1 tungsten carbide scriber No. 12322: Ø 3.15 mm

1 wire cutters No. 13148: L. 150 mm

1 precision feeler gauge, 20 blades No. 11095: 0.05-1.00 mm

96830273

2 circlip pliers for internal circlips No. 6543, 6544: J2; J21

2 circlip pliers for external circlips No. 6545, 6546: A2; A21

96830274

9 screwdriver sockets TORX® 1/2" No. 54 TX: T20; T25; T27; T30; T40; T45; T50; T55; T60

10 screwdriver sockets INHEX 1/2" No. 54: 4; 5; 6; 7; 8; 10; 12; 14; 17; 19 mm

2 screwdriver sockets TORX® 1/2" No. 1054 TX: T30; T50

2 screwdriver sockets INHEX 1/2" No. 1054/2054: 6; 8 mm

4 screwdriver sockets INHEX 1/4" No. 44: 3; 4; 5; 6 mm

8 screwdriver sockets TORX® 1/4" No. 44 KTX: T8; T10; T15; T20; T25; T27; T30; T40

5 screwdriver sockets INHEX 1/4" No. 44 K: 3; 4; 5; 6; 8 mm

Produkt-Highlights

Complete solution for industry.

Our extensive range includes high-quality tools for a wide range of applications, such as vehicle maintenance, general repairs or assembly and disassembly work. It includes spanners with various sizes, sockets up to 32 mm, a large bit set, a wide selection of pliers and much more. With this equipment, you get a broad base for a wide range of applications in the automotive, electrical and mechanical engineering industries.

Takes on anything.

High-quality materials such as the tightly welded stainless steel tray with a scratch-resistant honeycomb structure ensure the durability typical of STAHLWILLE and prevent liquids from penetrating into the interior of the trolley. The work surface of 827 x 496 mm is particularly suitable for working on large components. Thanks to its robust construction, the 95 PRO has a static load capacity of 750 kg. Thanks to reinforcements, the drawers can be loaded with 30 kg and the bottom drawer with up to 45 kg.

Full configuration as standard.

Whether paper roll and spray can holders, all-round impact protection with shock absorption, perforations on both sides for attaching accessories, locking brakes or oil and acid-resistant smooth-running castors (Ø 125 mm) with thread protection. Our tool trolley comes with many features as standard.

Optimally organised.

All drawers can be extended up to 100 %. Combining the use of STAHLWILLE standard and TCS inlays, or the variable drawer dividers, ensures a clear overview and convenient access to tools.
