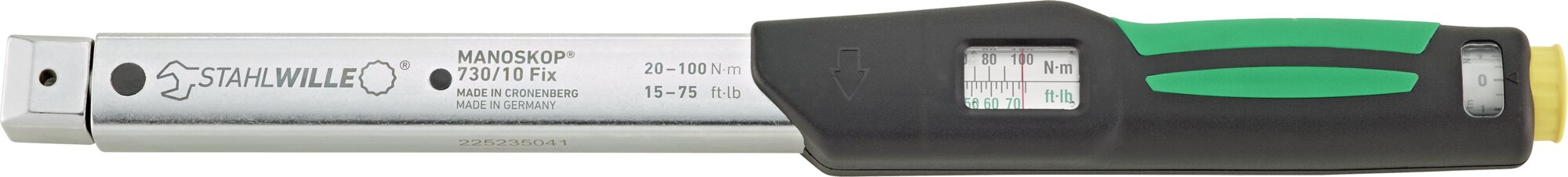

Torque wrench service MANOSKOP® with holder for insert tools
Torque wrench service MANOSKOP® with holder for insert tools
730a Fix
Artikel-Nr. 96583010|EAN 4018754269792
Produktvideo
Produkt-Varianten
| Product no. | Size | Measuring range ft·lb | Measuring range in·lb | Length mm (L) | Width mm (b) | Height mm (h) | Fine scale division | Size square socket [inside square drive] | LF | SF | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96583005 | a/5 | 7-37 ft·lb | 90-450 in·lb | 330 mm | 28 mm | 23 mm | 2,5 in·lb | 9 x 12 mm | 280,5 mm | 17,5 mm | 832 g | 1638 g | Jetzt entdecken |
| 96583010 | a/10 | 15-75 ft·lb | 180-900 in·lb | 386 mm | 28 mm | 23 mm | 5 in·lb | 9 x 12 mm | 336 mm | 17,5 mm | 988 g | 1790 g | |
| 96583020 | a/20 | 30-150 ft·lb | 350-1800 in·lb | 467 mm | 28 mm | 23 mm | 10 in·lb | 14 x 18 mm | 424,5 mm | 25 mm | 1066 g | 2072 g | Jetzt entdecken |
| 96583040 | a/40 | 60-300 ft·lb | 800-3600 in·lb | 607 mm | 28 mm | 23 mm | 2 ft·lb | 14 x 18 mm | 564,5 mm | 25 mm | 1670 g | 2614 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Value Lock (Tamper Resistant)
The target torque can be quickly adjusted using the adjustment knob. The knob can then be removed to prevent subsequent adjustment. The supplied locking screw and an adhesive seal provide additional protection against tampering.
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the "spring" does not need to be reset to "0" after use.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- For work in serial production
- Adjustment knob can be unscrewed after setting the trigger torque - unintentional changing of the setpoint torque is thus prevented
- The included TORX®Tamper Resistant fuse screw also protects against tampering as well as the included adhesive seals No adjustment possible without breaking the seal
- Triggering
- No reset to “0” required, since measuring element is only loaded during the tightening process
- Mount for interchangeable bits/sockets
- QuickRelease safety lock
- Fast, precise adjustment with QuickSelect quick adjustment
- Dual stop signal
- Easy to read double scale with colour differentiation of N·m/ft·lb and ft·lb/in·lb respectively
- Counter-clockwise tightening by turning the bits/sockets
- Continued loading after triggering or loading against the operating direction, e.g. with screws that are stuck, does not affect the triggering mechanism, which is therefore protected from damage.
- 2-component handle with hand-friendly green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with perfectControl® calibration system No. 7794 or calibration device No. 7706. Where applicable Readjustment does not require disassembly
- Certificate in accordance with DIN EN ISO 6789-2:2017
- DBGM
- In a sturdy plastic box (size 80-100 in sturdy steel box)
- Display deviation ± 3%
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
