Socket set
Socket set
TCS WT 40/45/46/37/14
Produkt-Varianten
| Product no. | Model | Contents | Length mm (L) | Square drive inner (inch) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|---|
| 96830123 | TCS WT 40/45/46/37/14 | 250 mm | 1/4, 3/8, 5/16 " | 460 mm | 60 mm | 2500 g | 51 pcs. |
Technologien und Leistungsmerkmale
QuickRelease
Tool Control System
Eigenschaften
- for the removable tray of tool trolley No. 13217
- cannot be combined with transparent cover 13217 TA
- safely integrated in the modular Tool Control System (TCS)

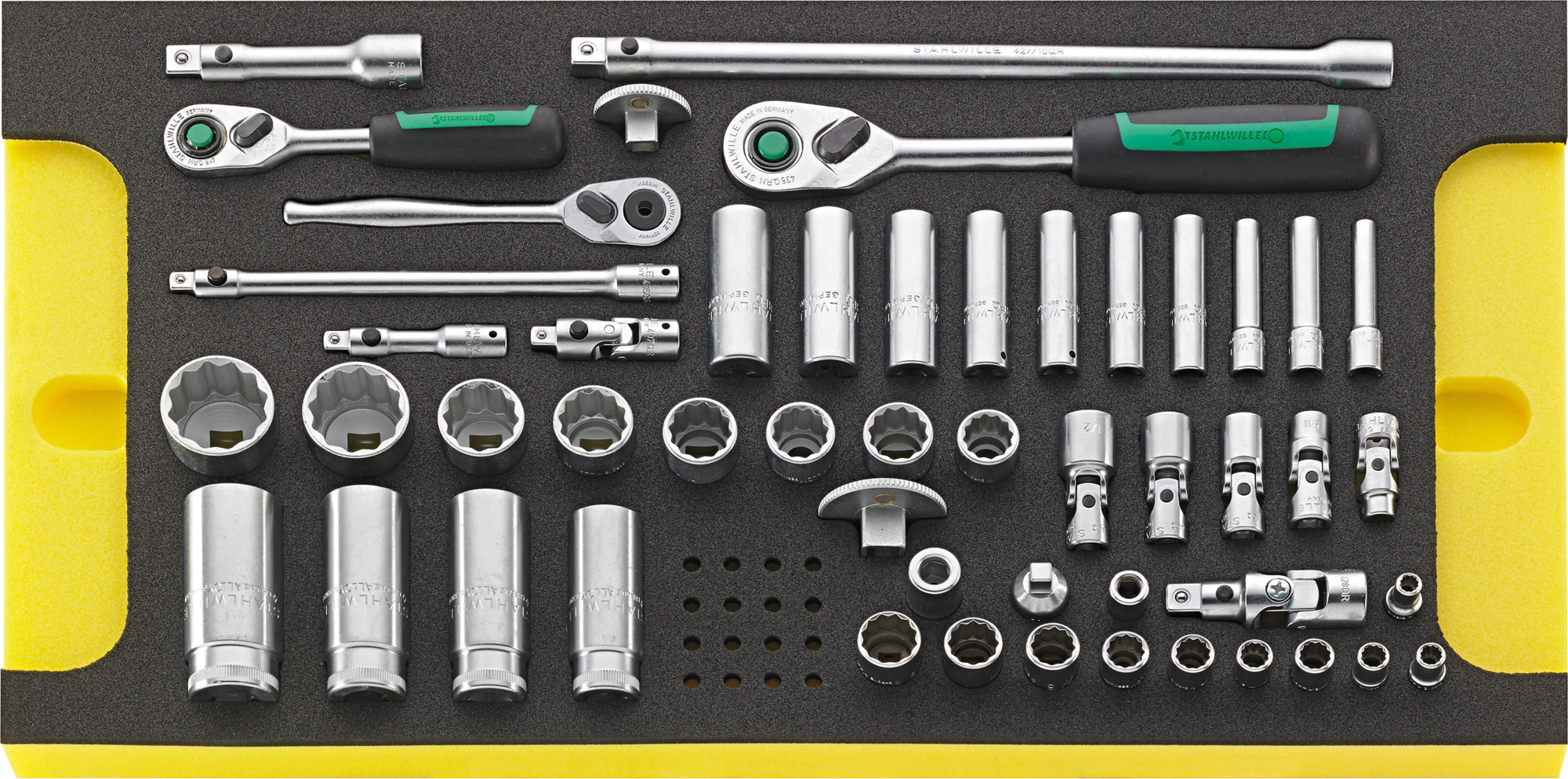

Contains 51-pieces:
10 sockets with bi-hex 1/4" No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
10 sockets long, with bi-hex 1/4" No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
5 uniflex sockets with bi-hex 1/4" No. 402a: 1/4; 5/16; 3/8; 7/16; 1/2"
2 QuickRelease extensions 1/4" No. 405QR: L. 54; 150 mm
1 QuickRelease universal joint 1/4" No. 407QR: L. 45 mm
1 square drive adaptor No. 409M: 1/4 to 3/8"
1 bit holder 1/4" No. 412: L 25 mm
1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm
1 bit fine-tooth ratchet 1/4" No. 415SGB N: L. 117 mm
8 sockets with bi-hex 3/8" No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1"
4 sockets long, with bi-hex 3/8" No. 46a: 5/8; 11/16; 3/4; 7/8"
2 QuickRelease extensions 3/8" No. 427QR: L. 76; 240 mm
1 QuickRelease universal joint 3/8" No. 428QR: L. 60 mm
1 square drive adaptor No. 431: 3/8 to 1/4"
1 square drive adaptor No. 432M: 3/8 to 1/2"
1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L. 193 mm
1 bit holder 3/8" No. 443: L. 32 mm
