Socket set
Socket set
40/16/3QR SCI
Artikel-Nr. 91220418|EAN 4018754301461
Produkt-Varianten
| Product no. | Model | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|
| 91220418 | 40/16/3QR SCI | 1/4 | 154 mm | 105 mm | 40 mm | 366 g | 19 pcs. |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of sockets and insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
In transducers: The QuickRelease safety lock helps you to quickly mount
and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
Foreign Object Damage
STAHLWILLE protects against FOD (Foreign Object Damage). Our tool is ideal for safety-relevant sectors such as aviation, thanks to the screwless design.
Eigenschaften

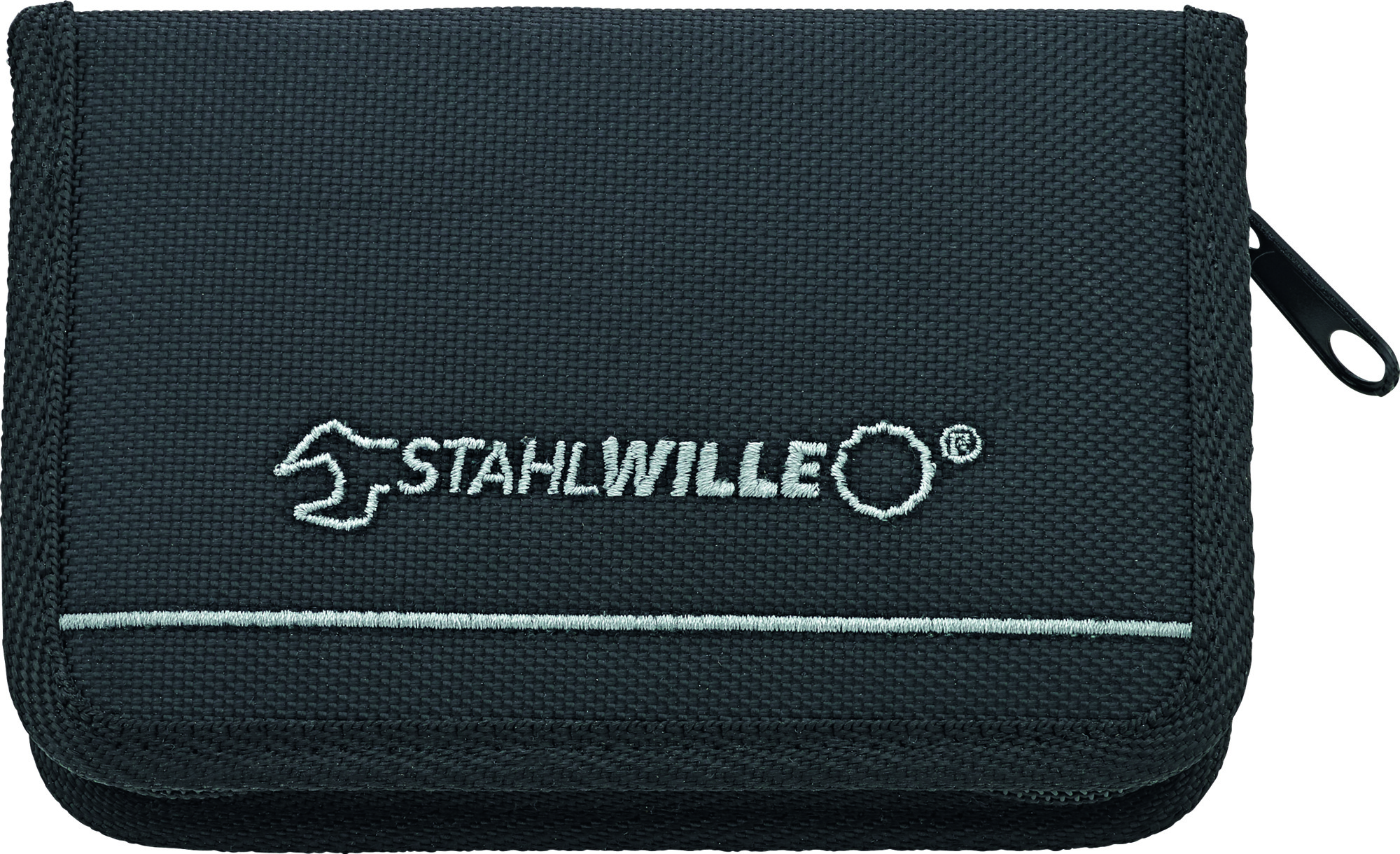

- In soft case with hard foam insert
- Ratchet with QuickRelease safety lock
- for working in tight spaces, with working angle of only 4.5° (80 teeth)
- and FOD-preventive due to screwless design, 19 pieces:

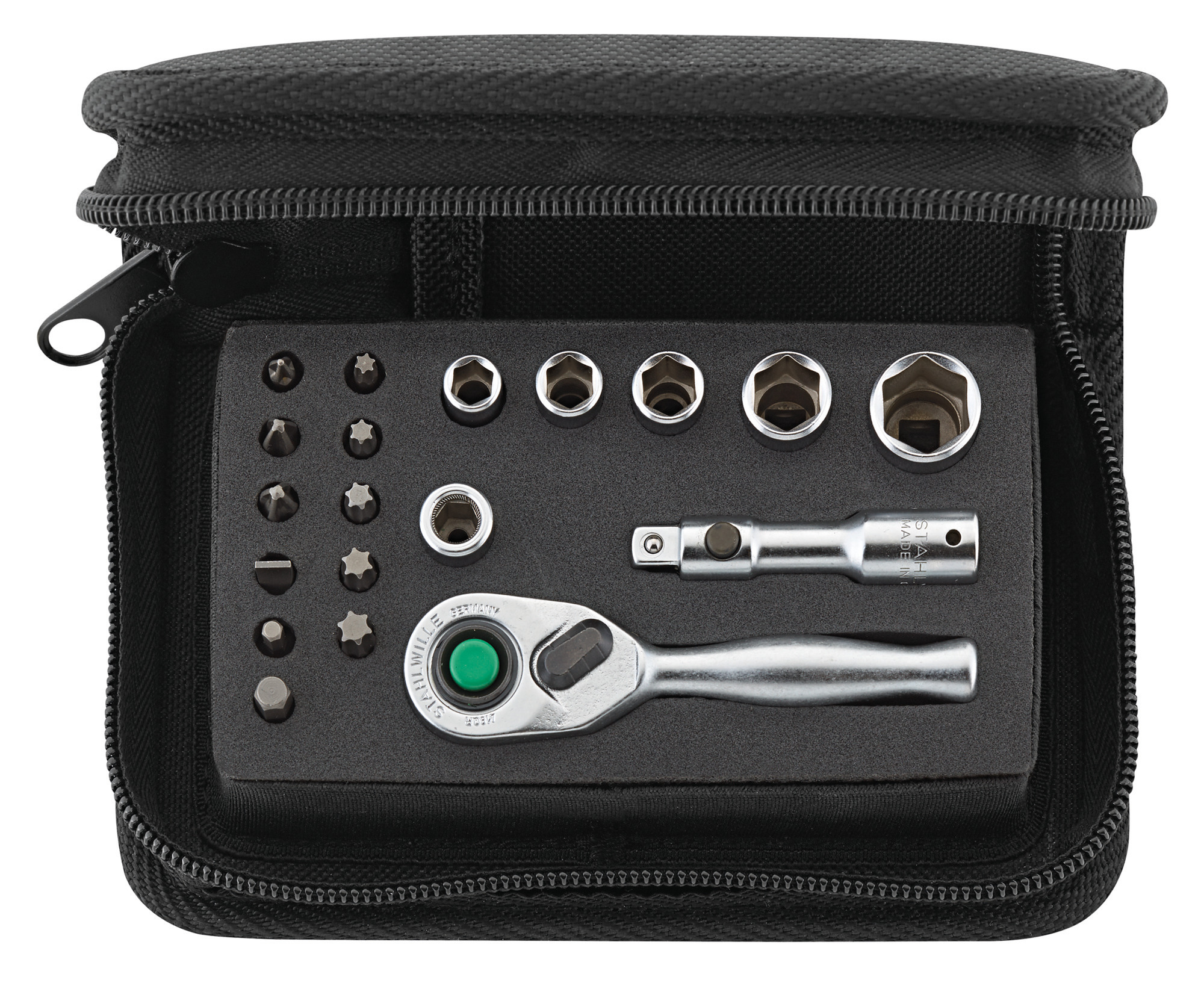

Contents:
5 sockets 1/4" with hexagon No. 40 SW 6; 7; 8; 10; 13mm.
1 fine-tooth ratchet 1/4" all steel with QuickRelease No. 418QR L.90mm
1 socket extensions 1/4" with QuickRelease No. 405QR/2 L.54mm
1 Bit holder 1/4" No. 412 L.25mm
2 bit screwdriver bits 1/4" for hexagon socket screws SW 3; 5mm
1 bit screwdriver bit 1/4" for slotted screws 1x5,5mm
2 bit screwdriver bits 1/4" for cross-slotted head screws PH1; PH2
1 bit screwdriver bits 1/4" for cross-slotted head screws PZ2
5 bit screwdriver bits 1/4" for internal TORX® screws T15; T20; T25; T27; T30
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
