Sockets
Sockets
50aPSP
Artikel-Nr. 03012024|EAN 4018754187713
Produkt-Varianten

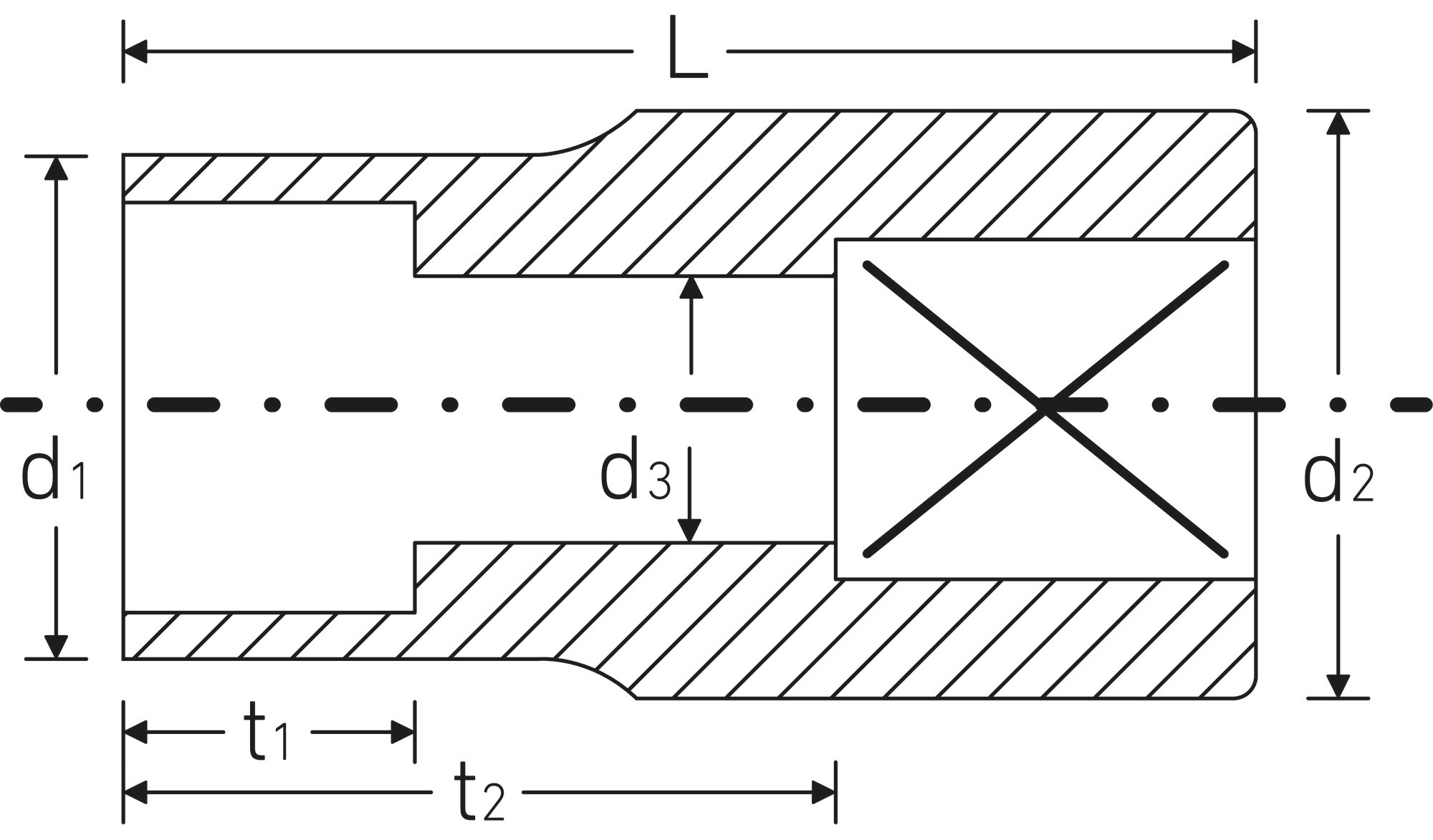

| Product no. | Model | Size [inch] | Size drive profile | Square drive inner (inch) | Length mm (L) | Drive profile | d1 | d2 | d3 | t1 | t2 | Weight (g) | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03012024 | 50aPSP | 3/8 " | 12 | 1/2 " | 38 mm | Spline-Drive | 15,5 mm | 22 mm | 8,6 mm | 9,5 mm | 22 mm | 55 g | ||
| 03012028 | 50aPSP | 7/16 " | 14 | 1/2 " | 38 mm | Spline-Drive | 18 mm | 23,7 mm | 10,4 mm | 11 mm | 22 mm | 65 g | Jetzt entdecken | |
| 03012034 | 50aPSP | 9/16 " | 18 | 1/2 " | 38 mm | Spline-Drive | 22 mm | 23,7 mm | 13,5 mm | 12 mm | 20 mm | 71 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)

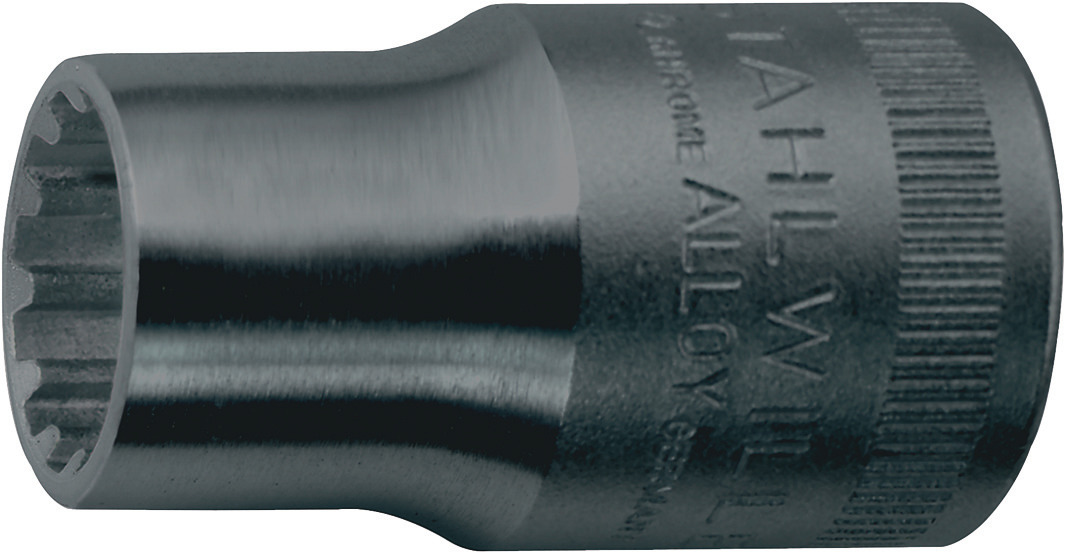

Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Eigenschaften
- for external Spline-Drive screws
- 1/2" internal square drive
- HPQ® high performance steel, gunmetal finish
- MS-33787
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
