Sockets
Sockets

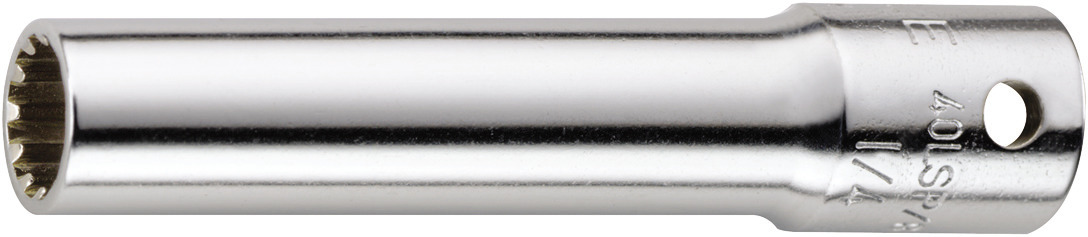

40aLSP
Artikel-Nr. 01021007|EAN 4018754170852
Produkt-Varianten

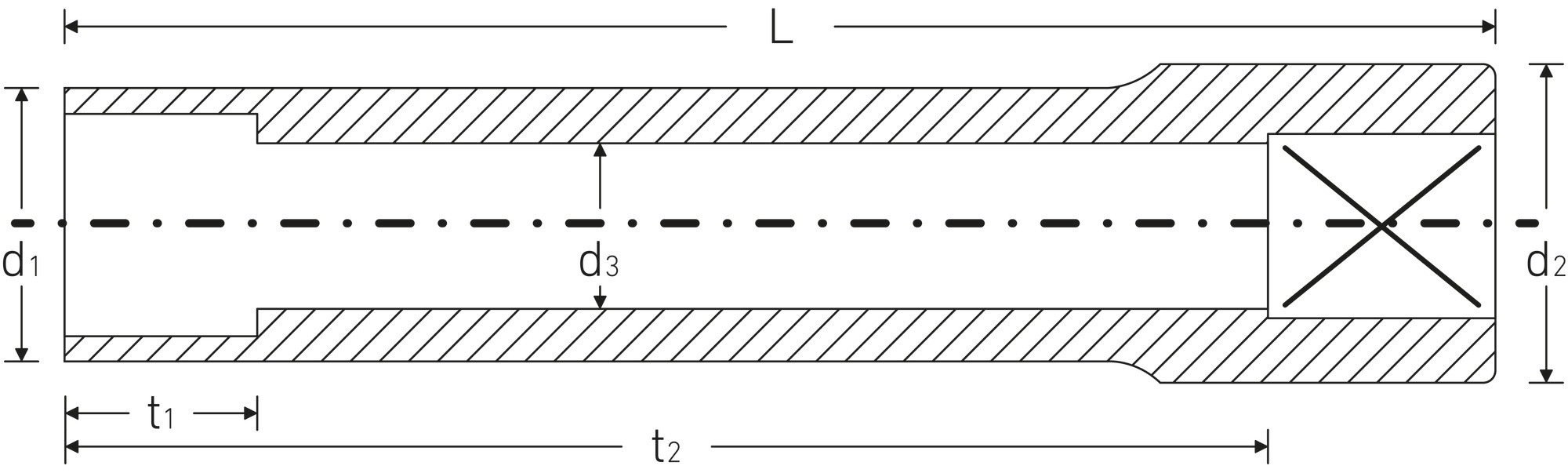

| Product no. | Model | Size [inch] | Square drive inner (inch) | Length mm (L) | Drive profile | d1 | d2 | d3 | Size drive profile | Weight (g) | t1 | t2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01021007 | 40aLSP | 7/32 " | 1/4 " | 50,8 mm | Spline-Drive | 8,6 mm | 10,7 mm | 5 mm | 7 | 18 g | 6 mm | 42,8 mm | |
| 01021008 | 40aLSP | 1/4 " | 1/4 " | 50,8 mm | Spline-Drive | 9,5 mm | 10,7 mm | 5,6 mm | 8 | 24 g | 8 mm | 42,8 mm | Jetzt entdecken |
| 01021010 | 40aLSP | 5/16 " | 1/4 " | 50,8 mm | Spline-Drive | 11,6 mm | 11,6 mm | 7,1 mm | 10 | 27 g | 8 mm | 40,8 mm | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Eigenschaften
- long version, deep drilled
- for external Spline-Drive screws
- 1/4" internal square drive
- HPQ® high performance steel, chrome-plated
- MS-33787 / MIL-W-8982
