Sockets
Sockets

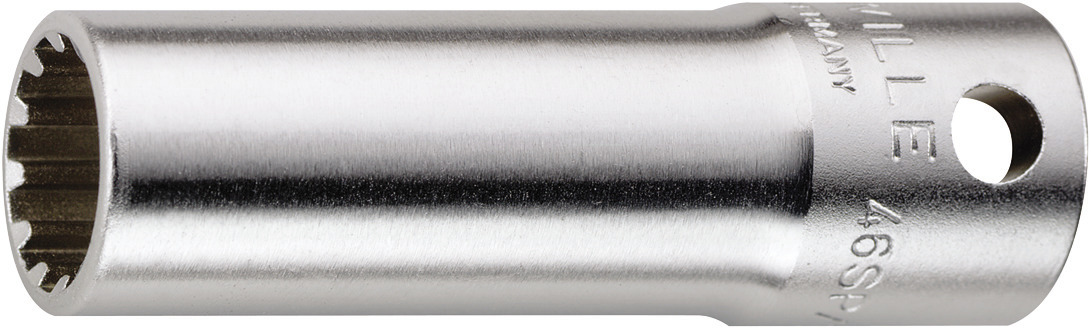

46aSP
Artikel-Nr. 02021012|EAN 4018754109173
Produkt-Varianten

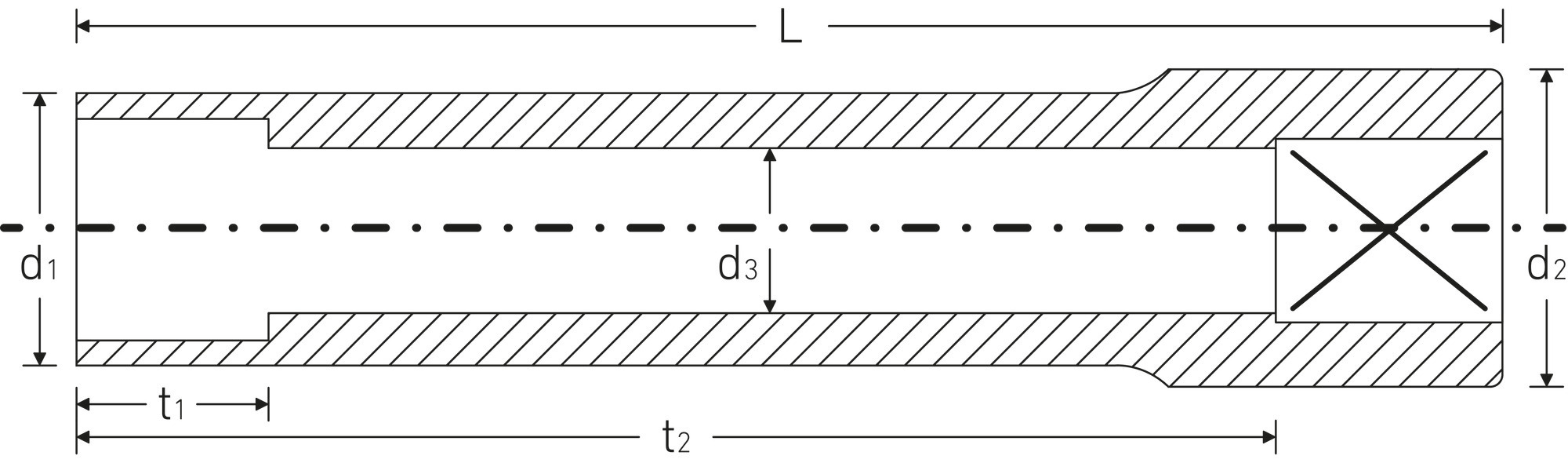

| Product no. | Model | Size [inch] | Square drive inner (inch) | Length mm (L) | Drive profile | d1 | d2 | d3 | Size drive profile | Weight (g) | t2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02021012 | 46aSP | 3/8 " | 3/8 " | 54 mm | Spline-Drive | 13,7 mm | 16,5 mm | 8,6 mm | 12 | 52 g | 42,5 mm | |
| 02021014 | 46aSP | 7/16 " | 3/8 " | 54 mm | Spline-Drive | 16 mm | 17,3 mm | 10,4 mm | 14 | 63 g | 42,5 mm | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Eigenschaften
- long version, deep drilled
- for external Spline-Drive screws
- 3/8" internal square drive
- HPQ® high performance steel, chrome-plated
- MS-33787 / MIL-W-8982
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
