Sockets
Sockets

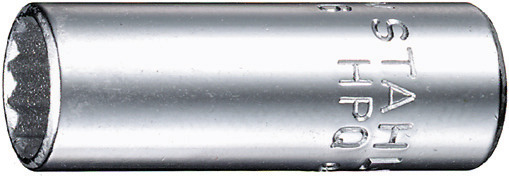

40aDV
Artikel-Nr. 01650014|EAN 4018754001743
- SAE AS 954-E, S.B.A.C. AS 40605/40606.
Produkt-Varianten

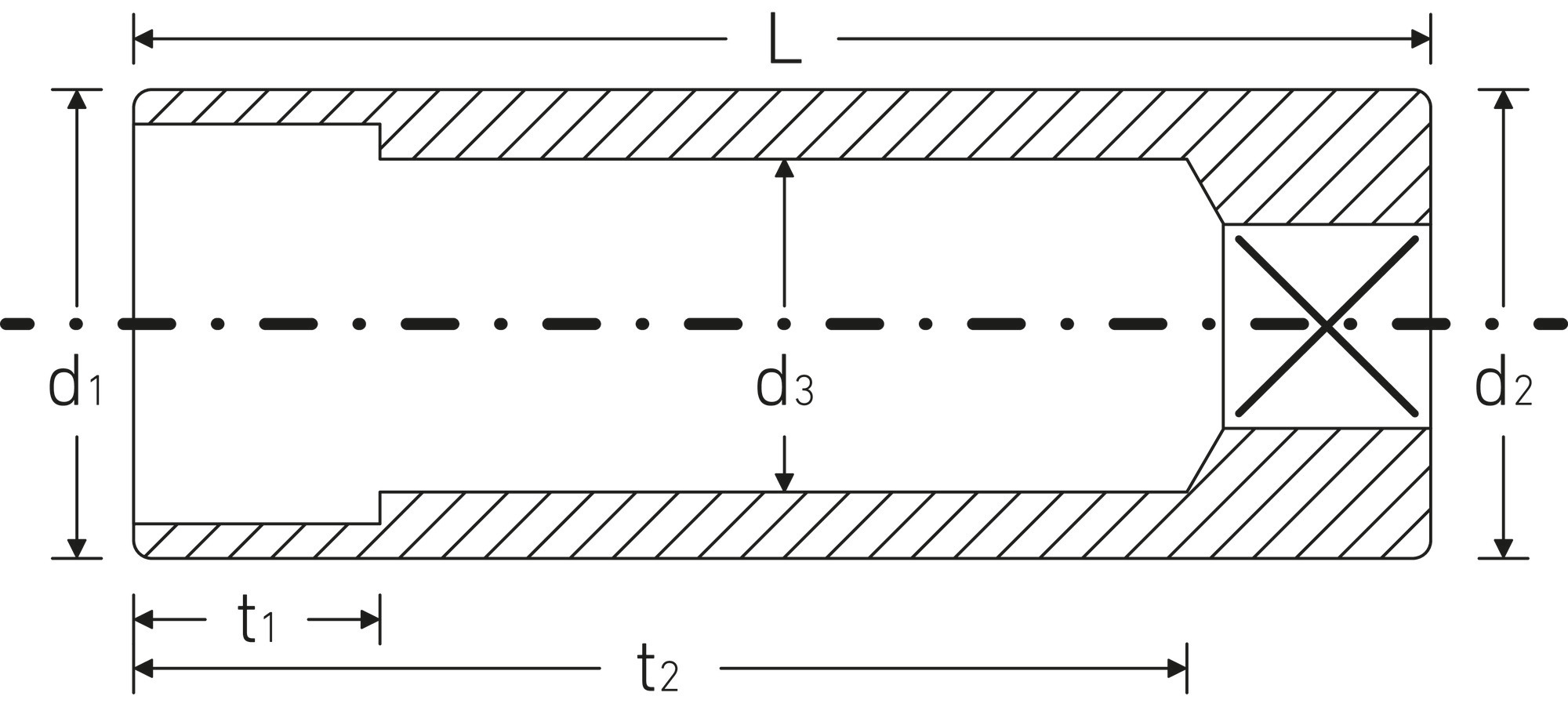

| Art. no. | Spanner size [inch] | Internal square drive (inch) | Length mm (L) | Drive profile | d1 | d2 | d3 | t1 | t2 | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01650014 | 7/32 " | 1/4 " | 31,8 mm | Doppelsechskant AS-Drive® | 8,6 mm | 10,7 mm | 5 mm | 6 mm | 23,8 mm | 12 g | |
| 01650016 | 1/4 " | 1/4 " | 31,8 mm | Doppelsechskant AS-Drive® | 9,4 mm | 10,7 mm | 5,2 mm | 6 mm | 23,8 mm | 13 g | Jetzt entdecken |
| 01650018 | 9/32 " | 1/4 " | 31,8 mm | Doppelsechskant AS-Drive® | 10,7 mm | 10,7 mm | 6,6 mm | 6,5 mm | 22 mm | 13 g | Jetzt entdecken |
| 01650020 | 5/16 " | 1/4 " | 31,8 mm | Doppelsechskant AS-Drive® | 11,6 mm | 11,6 mm | 7 mm | 8 mm | 21,9 mm | 15 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
High-performance steel, extremely resilient, yet thin-walled and ideal for working in confined spaces.
Eigenschaften
- SAE AS 954-E, S.B.A.C. AS 40605/40606
- HPQ® heavy-duty steel, chrome-plated
